Qubic QS-BT1 | Dual-Channel Direct Drive Belt Tensioner

Name: Qubic QS-BT1 | Dual-Channel Direct Drive Belt Tensioner
Brand: Qubic System
SKU: QS-BT1
Price: 1519.00 GBP
Availability: InStock

Rated 4.1 out of 5

Trustpilot

£1,519.00

Sale Sold out

VAT included. No import fees.

Pay in 3 interest-free payments with PayPal. Subject to status.

Free UK
Delivery

UK Specialist
Support

Manufacturer
Warranty

Overview

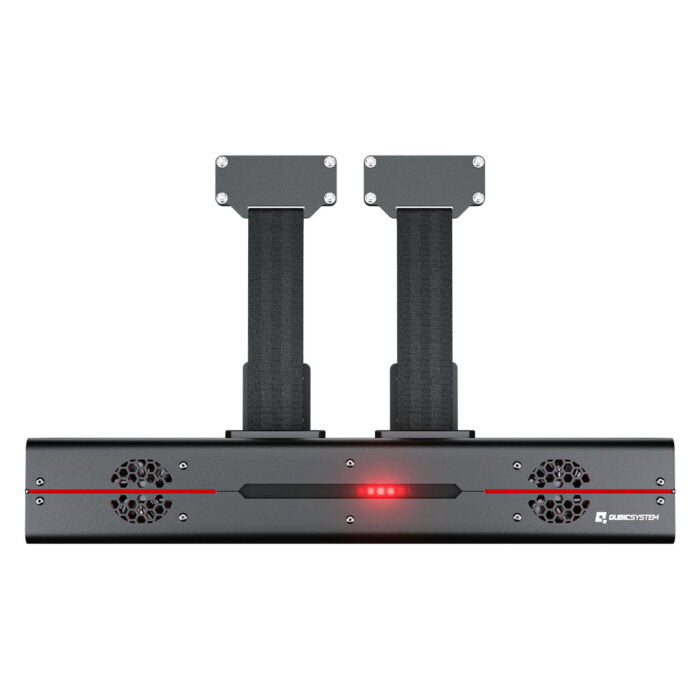

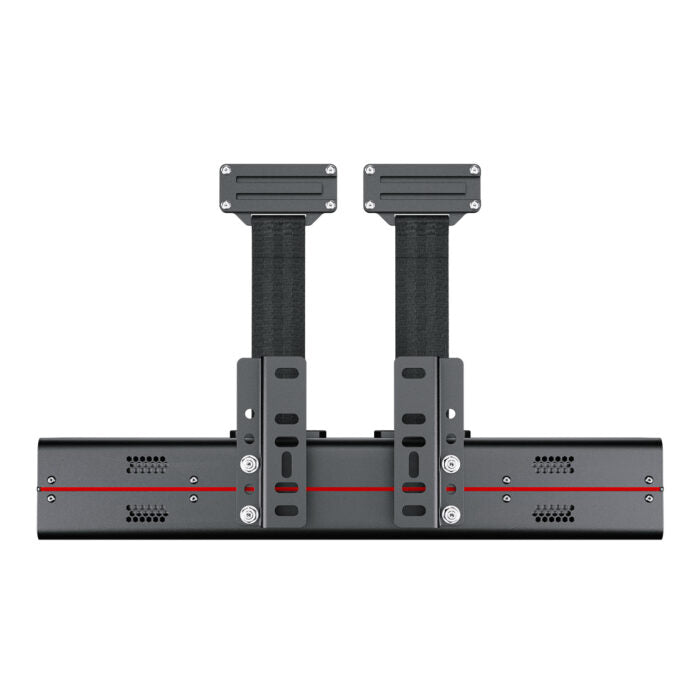

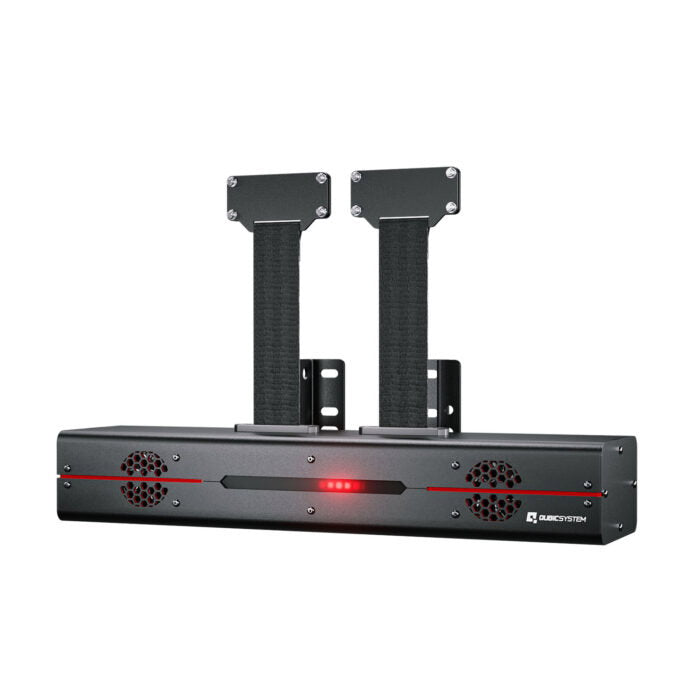

In a real car the first thing that tells you how hard you are braking is the harness pulling against your chest. The Qubic System QS-BT1 brings that exact feedback to your rig, no platform required. A dual channel direct drive tensioner built on the same actuator technology as the QS-220, it physically tightens your belts in response to braking, cornering, traction loss and lateral load. Two hundred newtons of force per channel, applied where your body actually reads it. No haptic pad or bass shaker reproduces this, because it is not vibration. It is force, the same way a real car loads you when you stand on the brakes.

Pre order, July 2026: Available to pre order now. Stock expected July 2026. Your order will be fulfilled and despatched as soon as stock lands.

Optional Add-Ons InformationTap to view

Details on available add-ons for this product. Select the preferred add-ons for your setup above the add to cart button.

Install Kit for QS-CH1	Dedicated mounting bracket for installing the QS-BT1 on a QS-CH1 cockpit.
Install Kit for QS-V20	Dedicated mounting bracket for the QS-V20.
Install Kit for QS-S25	Dedicated mounting bracket for the QS-S25.
Racing Seat	Universal racing seat compatible with Qubic System platforms.
Seat Belts - 4 Point	Four-point racing harness. Required for use with the QS-BT1 belt tensioner.

Complete the experience with VR. Pair this platform with a Pimax headset for full cockpit immersion. View our Immersion range

Key Features

Braking SimulationG force through your harness

Engine VibrationRPM, gear shifts, road texture

8 ms LatencySame tech as QS-220 actuators

200 N Per ChannelCommercial grade force output

VR ReadyFull VR compatibility

Standalone or CombinedWorks with or without motion platform

2 Year WarrantyPersonal use coverage

Free UK DeliveryShips from Poland

Specifications

Install Kit for QS-CH1	Dedicated mounting bracket for installing the QS-BT1 on a QS-CH1 cockpit.
Install Kit for QS-V20	Dedicated mounting bracket for the QS-V20.
Install Kit for QS-S25	Dedicated mounting bracket for the QS-S25.
Racing Seat	Universal racing seat compatible with Qubic System platforms.
Seat Belts - 4 Point	Four-point racing harness. Required for use with the QS-BT1 belt tensioner.
Type	Dual channel direct drive belt tensioner
Channels	2, left and right
Force per Channel	200 N
Simulated Effects	Braking, cornering, traction loss, lateral acceleration, engine vibration, road texture
Technology	Direct drive, same actuator tech as QS-220
Latency	8 ms
Software	Qubic Manager (free, PC only)
Compatibility	Standalone or alongside any Qubic motion platform
Power	230V 50-60Hz
Use Cases	Sim racing
Warranty	2 years personal use, 1 year commercial use

Our Recommendation

Industrial grade belt tensioner with linear actuators. Premium build quality from Qubic System.

Shipping & Fulfilment

1 to 2 weeks delivery. Free UK delivery, all prices include VAT, no import fees or surprise charges. 2-year manufacturer warranty included.

Speak to a specialist

Free advice on configuration and compatibility.

Email Us Call Us

View full details

G-forces you wear, not sit on

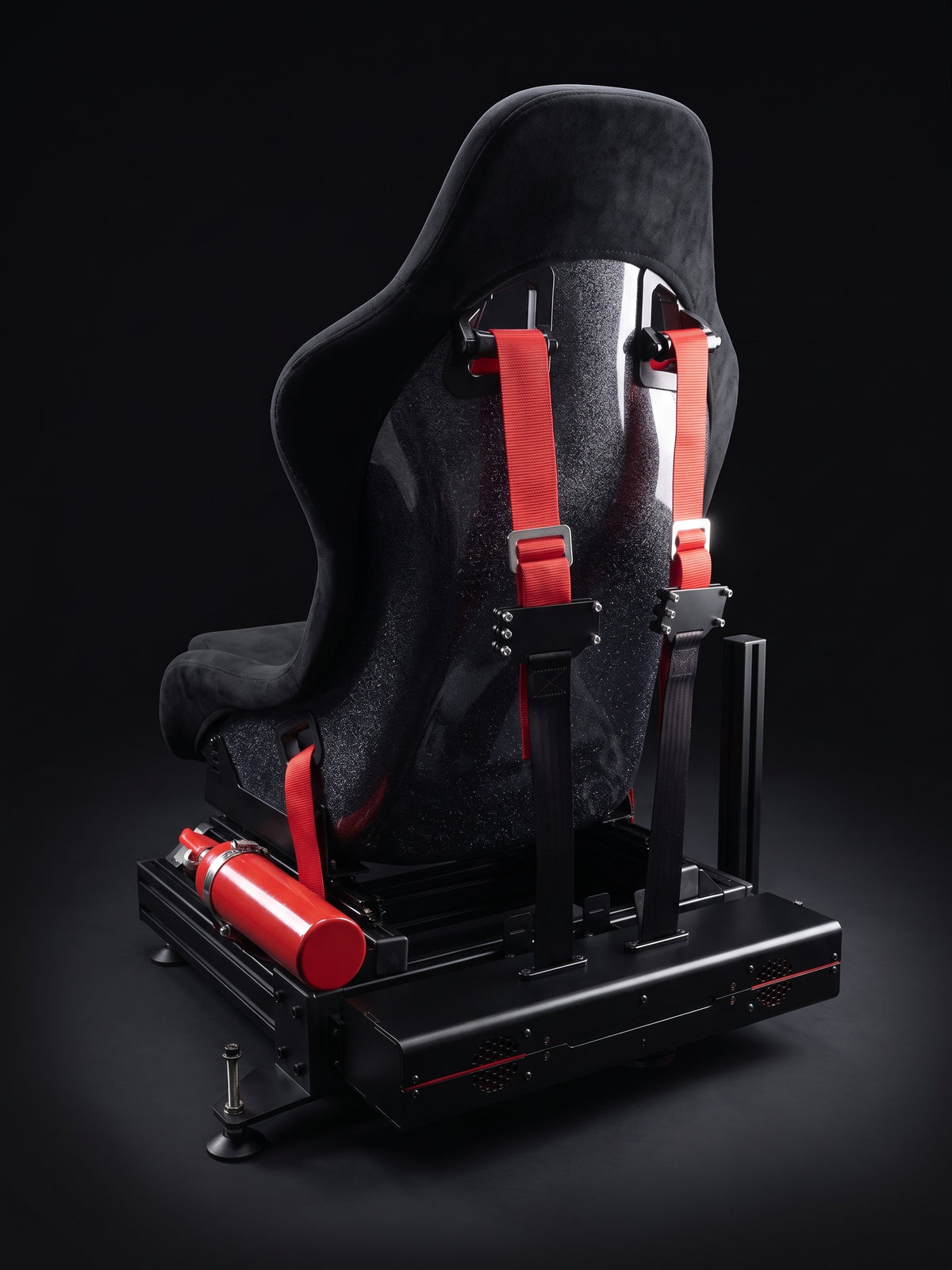

Motion platforms tilt. The BT1 pulls. Two motors connected to your harness simulate sustained G-forces by tightening the belts under braking, cornering, and acceleration. Hard on the brakes into Turn 1 and the belts push you into the seat. Flat out through Maggotts and the harness holds you as the Gs build.

At 12kg and £1,519 it is the most accessible entry point into physical force feedback. Run it standalone or pair it with a motion platform for the combination of movement and sustained force that no platform can do alone.

How It Compares

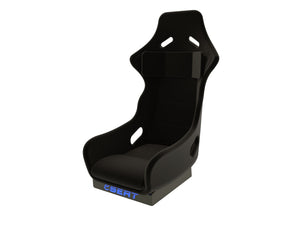

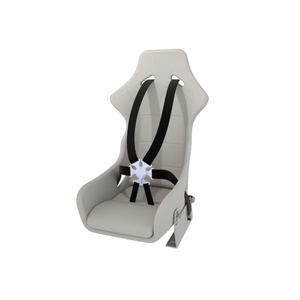

	Qubic QS-BT1 £1,519.00	eMotion eBelt £1,209.00	eMotion eSeat £2,639.00
Type	Belt tensioner	Belt tensioner	Seat mover
Actuator	Industrial linear	Standard	Standard
Harness	4-point	6-point	N/A
Effect	G-force through harness	G-force through harness	Surge and sway motion
Standalone
Made In	Poland	UK	UK

← Swipe to see all products →

Frequently Asked Questions

What software do I need to run Qubic System products?

All Qubic System products use Qubic Manager, which is free to download from qubicsystem.com. It runs on PC only and is compatible with all major sim racing titles. No third-party software is required for basic operation.

What is the QS-MC6 and do I need one?

The QS-MC6 is the motion controller that acts as the communication link between your PC and the Qubic actuators. It is required to operate the QS-210, QS-220 and QS-CH2. If you already own a QS-MC6 from a previous Qubic System purchase you do not need another one — one controller can manage up to four actuator sets. If you are buying your first Qubic product that requires it, select the variant above that includes the QS-MC6. Not sure whether you need one? Contact us before ordering and we will advise.

What is the difference between the QS-210 and QS-220 actuators?

Both deliver 3DOF pitch, roll and heave. The QS-210 uses more compact actuators with a shorter stroke and is designed for installation in popular aluminium profile cockpits with the included bracket set. The QS-220 uses the full industrial-grade actuators — the same ones found in the QS-V20 and QS-S25 professional cockpits — with a longer 100mm stroke and greater force output. The QS-220 is the more powerful and more expensive option, suited to customers wanting professional-grade performance or who are building around a full Qubic System cockpit.

What cockpits are the QS-210 and QS-220 compatible with?

Both come with bracket sets designed to fit most popular aluminium profile cockpits available on the market including 8020, 4040 and similar profiles. They can also be configured with the dedicated Qubic System cockpit profiles used in the QS-V20 and QS-S25. If you are unsure whether your existing rig is compatible, contact us with your cockpit model and we will confirm before you order.

Can I expand my system later?

Yes. Qubic System is designed to be modular. The QS-CH2 can be expanded to 5DOF by adding a QS-210 or QS-220 3DOF actuator set. One QS-MC6 controller manages up to four actuator sets, so you do not need to replace any existing hardware when expanding. The QS-BT1 belt tensioner can also be added to any existing Qubic setup for an additional layer of immersion.

Where do Qubic System products ship from and how long does delivery take?

All Qubic System products are manufactured in Poland and ship directly from the Qubic System facility. Delivery to UK mainland addresses takes 1 to 2 weeks from dispatch. Free UK mainland delivery is included. The QS-H13 seat mover has a separate lead time — contact us to confirm availability before ordering.

What warranty do Qubic System products come with?

All Qubic System products come with a 2 year warranty for personal use and a 1 year warranty for commercial use, covering manufacturing defects. Post-sale technical support is provided directly by Qubic System via support.motionsystems.eu.

What is the QS-BT1 and how does it differ from a motion platform?

The QS-BT1 is a dual-channel direct drive seat belt tensioner. Instead of moving the whole platform or seat, it physically tightens your harness in response to braking, cornering and G-forces detected from game telemetry. It can be used as a standalone immersion device or alongside any Qubic System motion platform. It uses the same direct drive technology as the QS-220 actuators and delivers 200N of force per channel.
