Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke

Rated 4.1 out of 5

Trustpilot

£3,750.00

Sale Sold out

VAT included. No import fees.

Pay in 3 interest-free payments with PayPal. Subject to status.

Free UK
Delivery

UK Specialist
Support

Manufacturer
Warranty

Configuration 2DOF Full Intro System (2 Actuators) 3DOF Full Intro System (4 Actuators)

Overview

Industrial-grade linear actuators in a compact form factor designed to bolt underneath your existing aluminium profile cockpit. Available as a 2DOF full system (one pair of actuators) or 3DOF full system (two pairs). Everything you need to get moving is included. No separate purchases required.

Same actuator technology that powers the QS-V20 turnkey cockpit and the QS-S25 hexapod, scaled down for SimLab, Trak Racer, ASR, or any standard 8020 extrusion rig. 400mm/s maximum speed and sub-8ms latency means the platform responds faster than you can perceive the delay. Every kerb strike, weight transfer, and surface change is reproduced in real time.

QubicManager software is free, developed in-house, and compatible with over 80 racing and flight titles including iRacing, ACC, rFactor 2, MSFS, and DCS World.

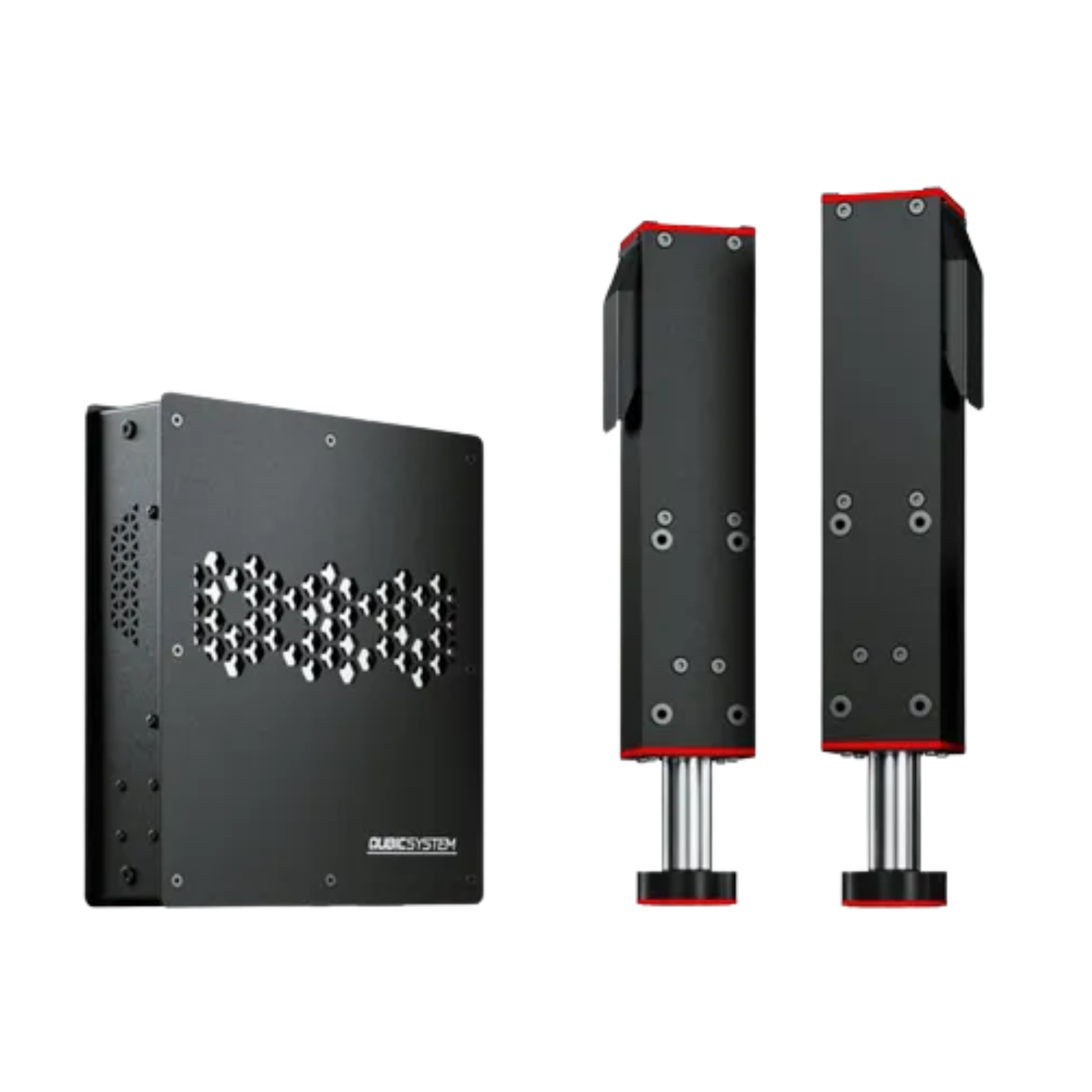

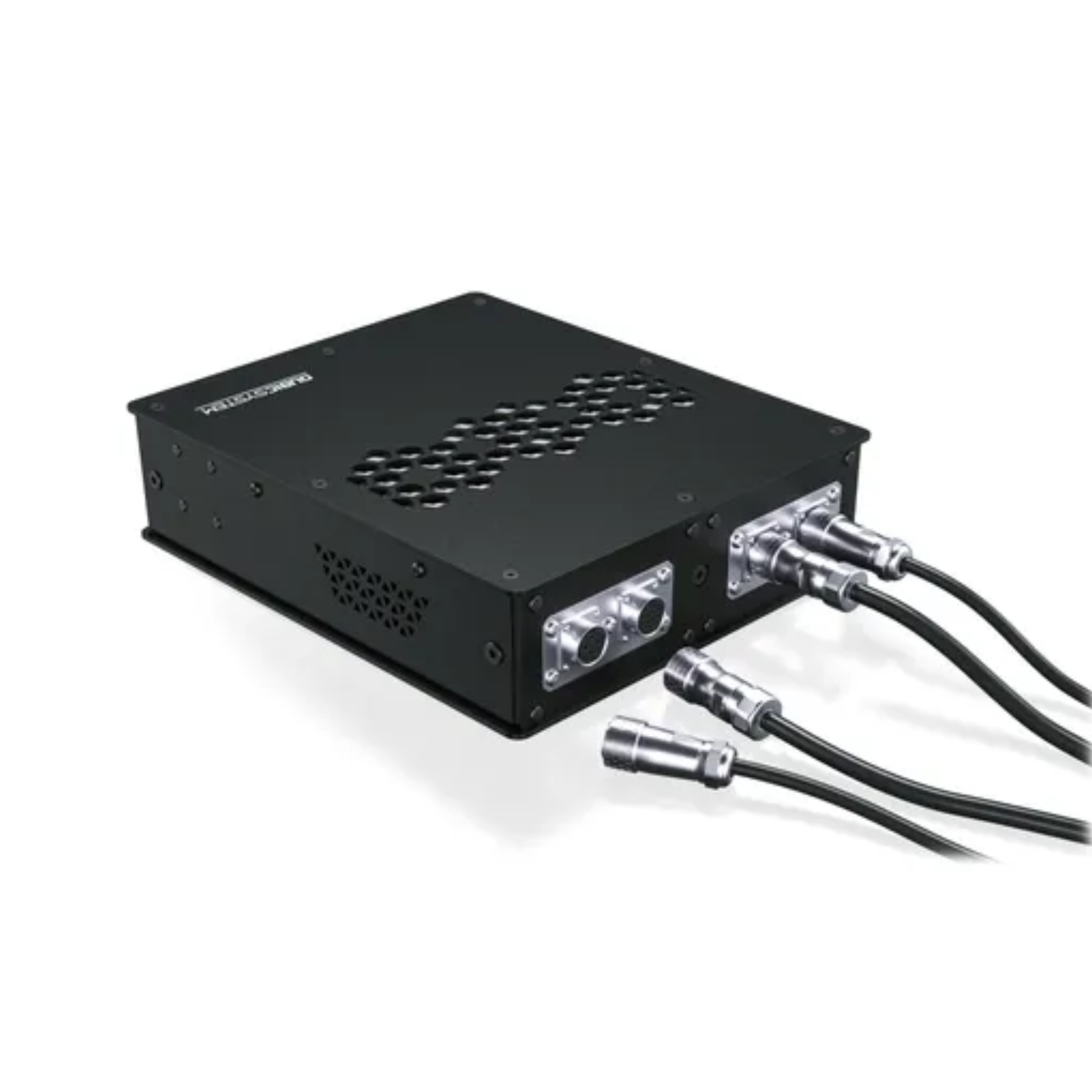

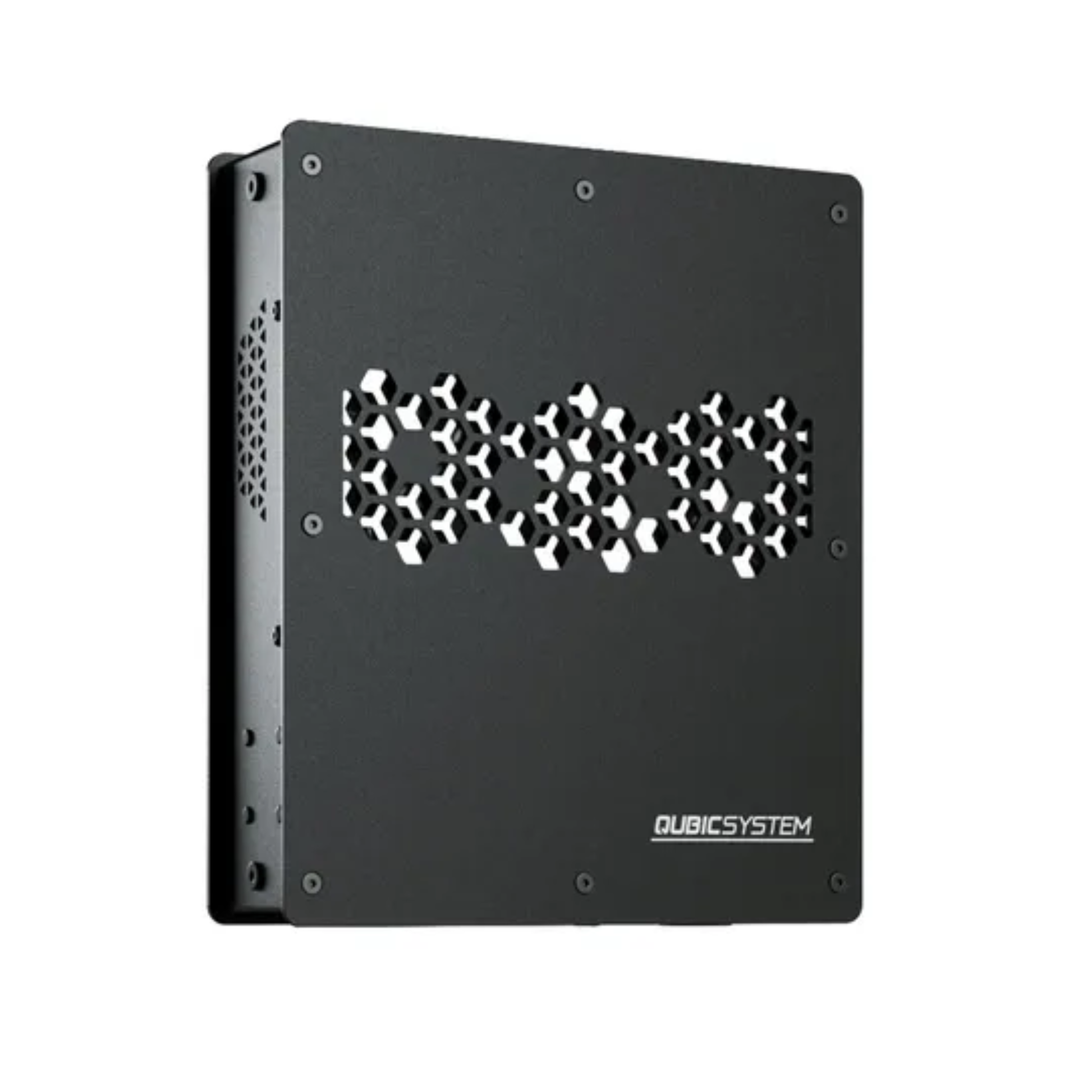

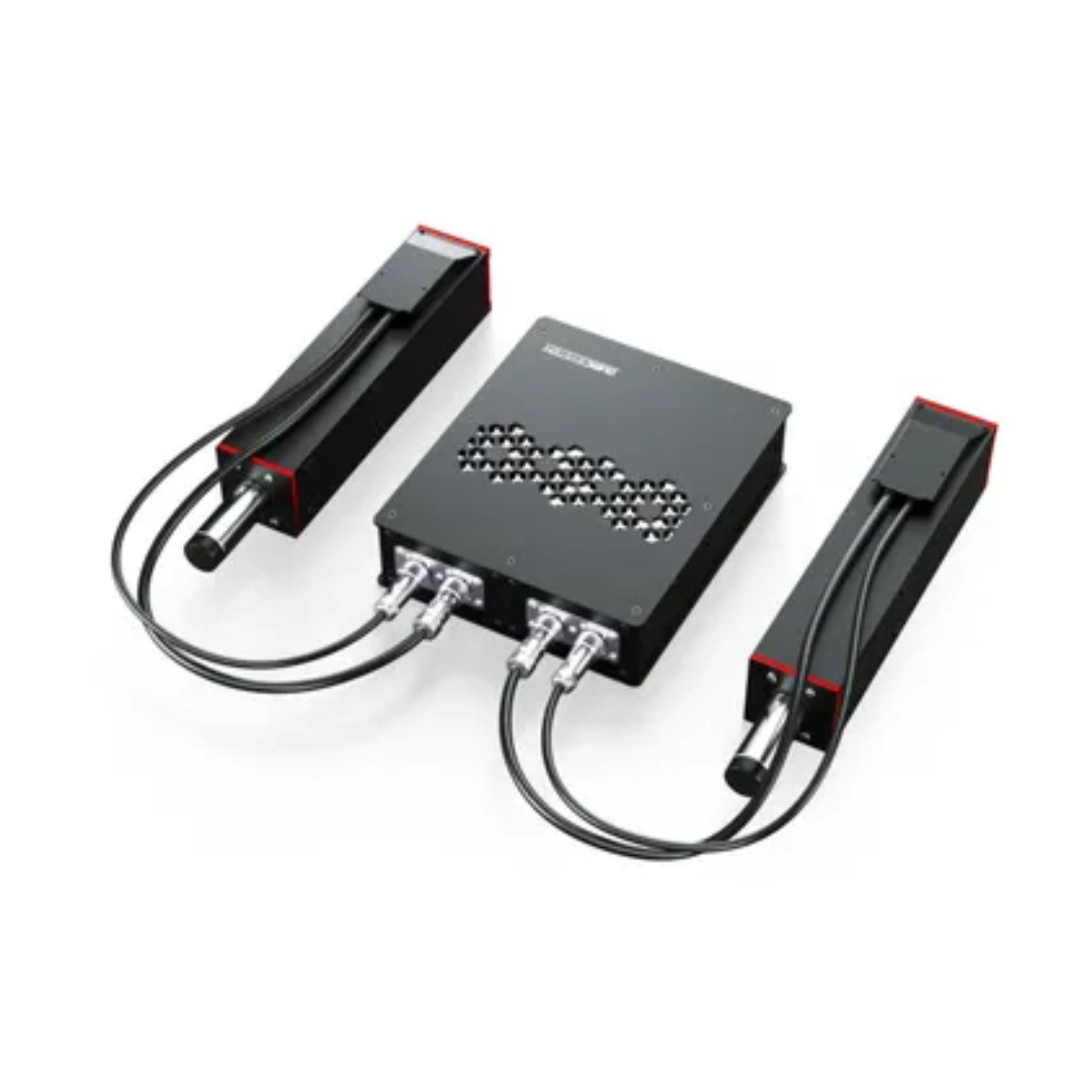

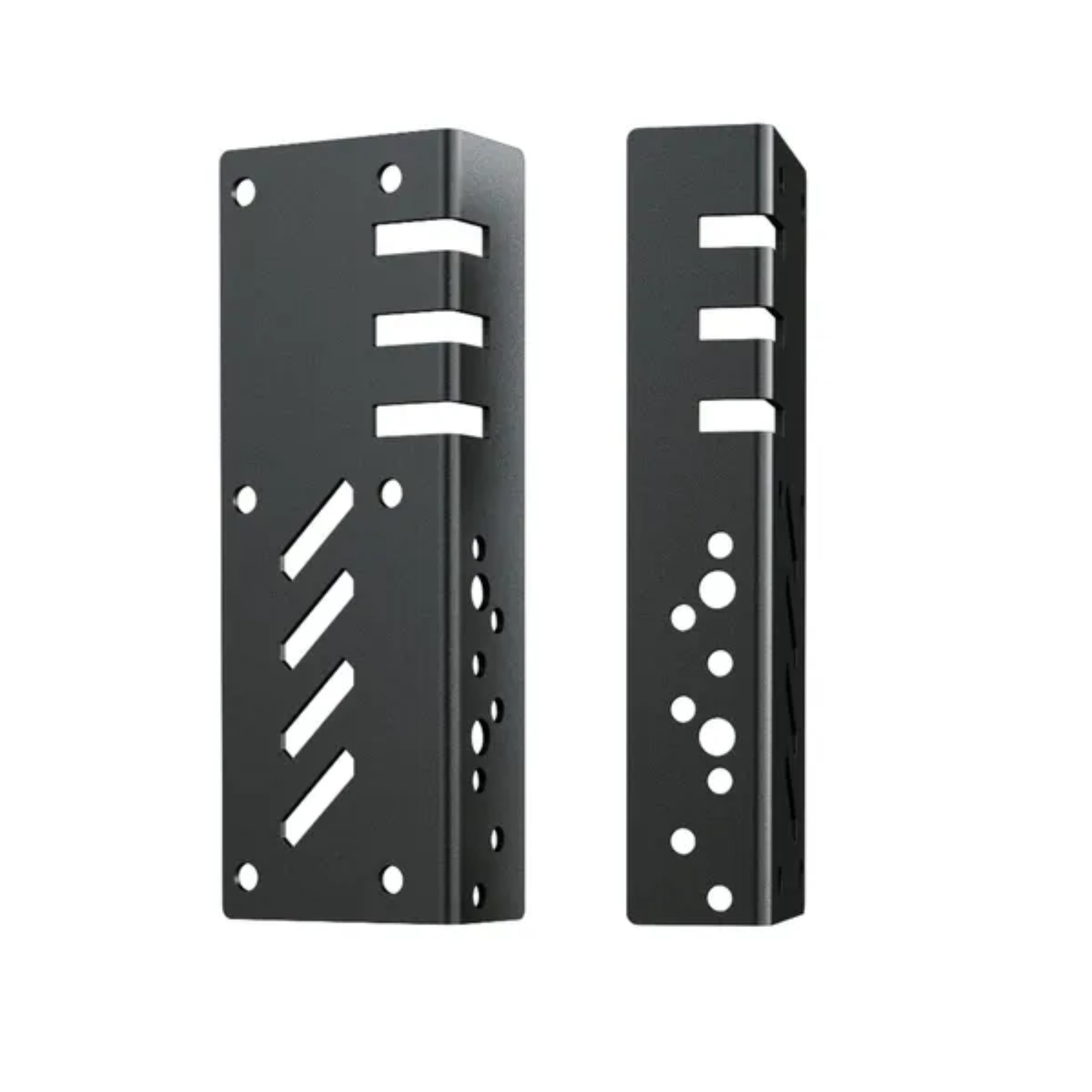

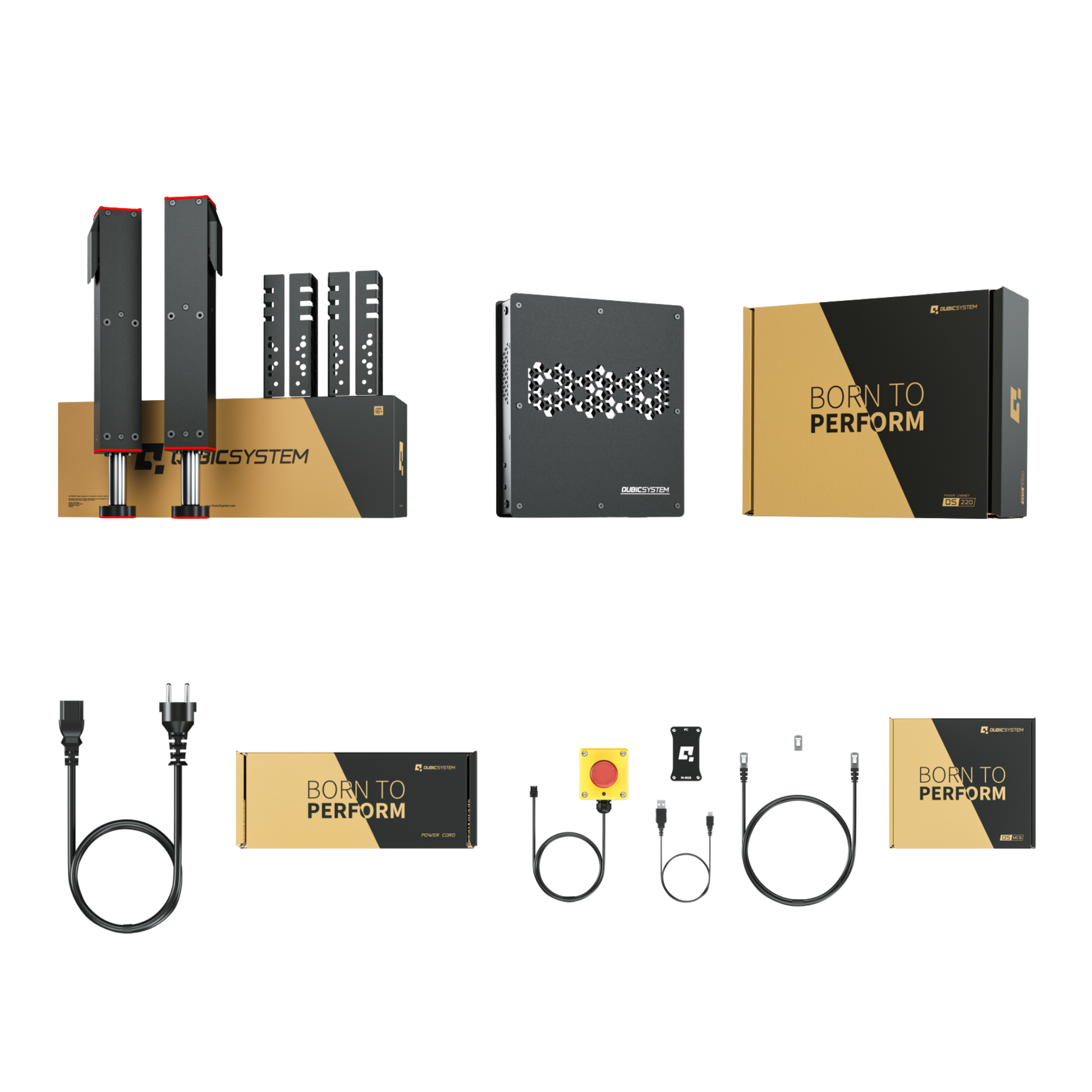

2DOF Full System includes: 2x QS-L5 linear actuators, 1x power cabinet, 1x QS-MC6 controller, 1x power cord, mounting brackets, and hardware. Delivers pitch and roll.

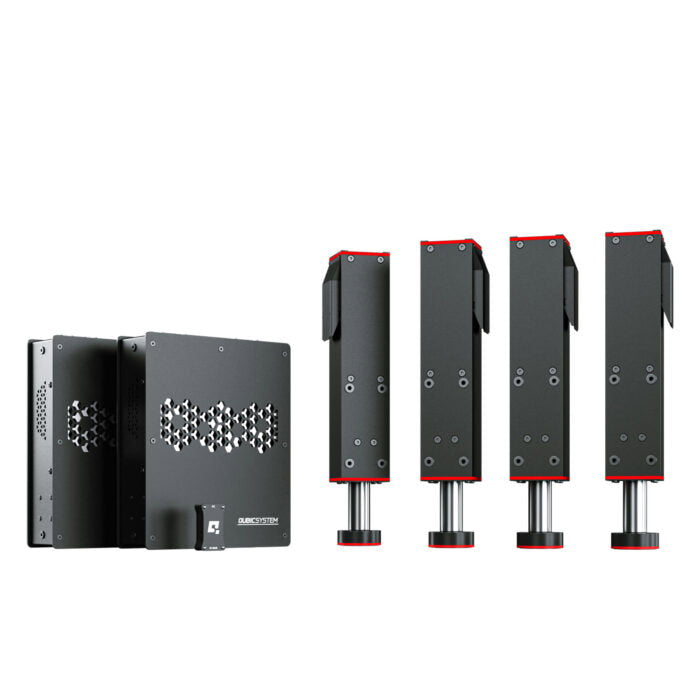

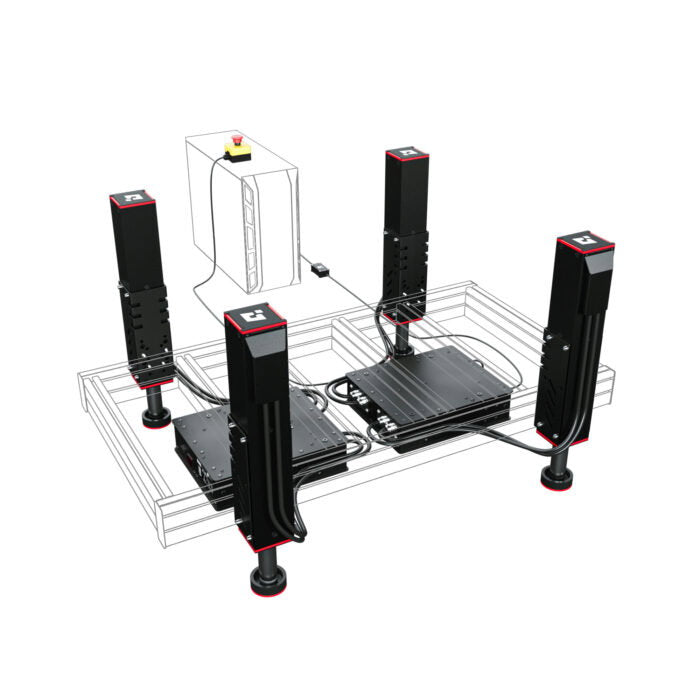

3DOF Full System includes: 4x QS-L5 linear actuators, 2x power cabinets, 1x QS-MC6 controller, 2x power cords, mounting brackets, and hardware. Delivers pitch, roll, and heave.

Optional: QS-PIVOT (sold separately). Rear-mounted pivot bar that adds yaw-like rotation to a 2DOF setup for enhanced traction loss feel. Available as an add-on on this page.

Complete the experience with VR. Pair this platform with a Pimax headset for full cockpit immersion. View our Immersion range

Key Features

Actuator Speed400mm/s per actuator

Acceleration0.6G maximum

Stroke Length60mm per actuator

LatencySub-8ms response time

Control Frequency1000Hz update rate

Payload (3DOF)Up to 250kg recommended

Free UK DeliveryIncluded

SoftwareQubicManager (free, 80+ titles)

Specifications

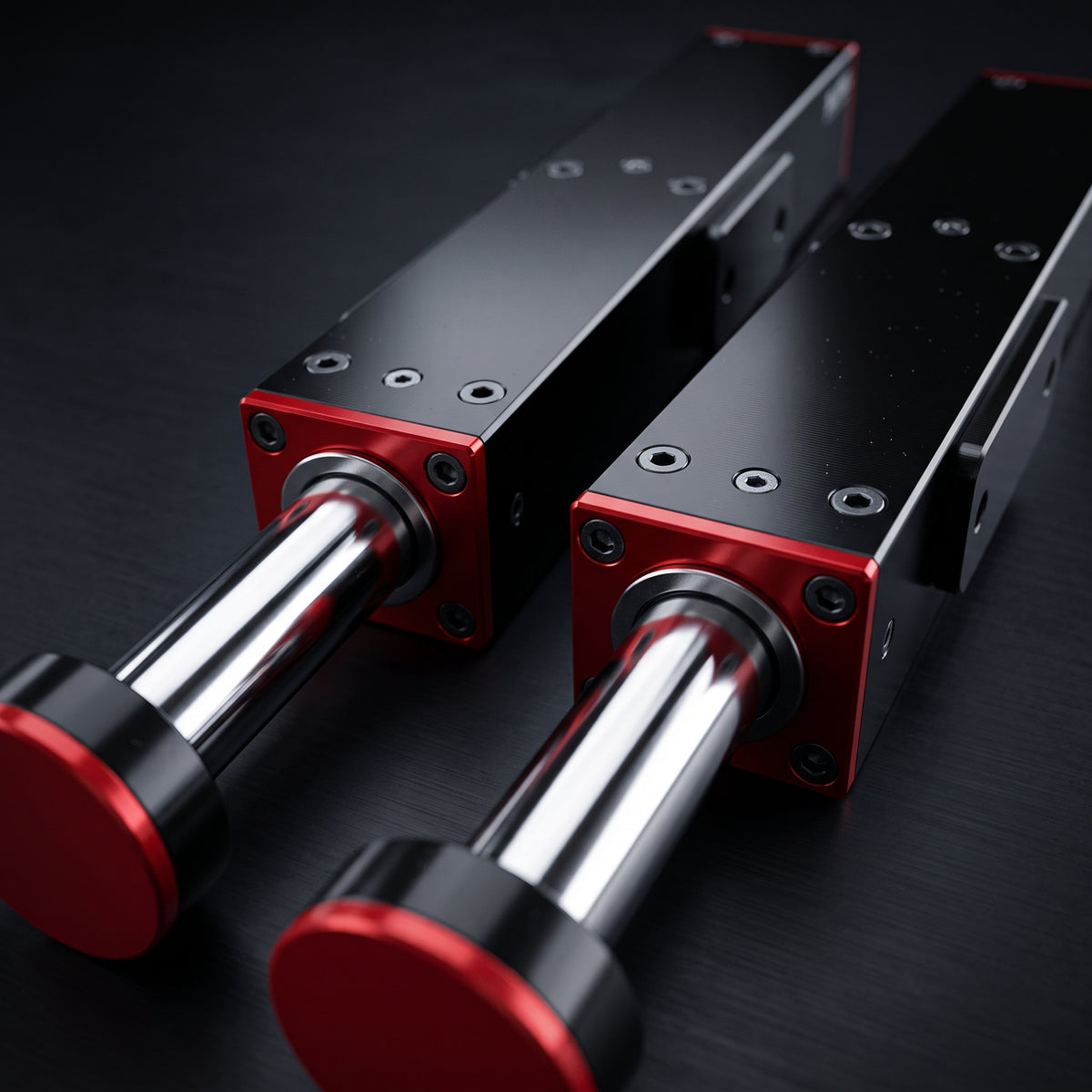

Actuator Type	Industrial linear actuator (QS-L5)
Stroke Length	60mm (2.36 inches)
Maximum Speed	400mm/s (Performance) / 300mm/s (Heavy Duty)
Maximum Acceleration	0.6G (Performance) / 0.4G (Heavy Duty)
Latency	Less than 8ms
Control Frequency	1000Hz
Vibration Range	0-100Hz
Payload (3DOF)	Up to 250kg (551 lb)
Architecture	2DOF (1 pair) or 3DOF (2 pairs)
Power Supply	115/230 VAC single phase
Software	QubicManager (free)
Game Compatibility	80+ titles inc. iRacing, ACC, rFactor 2, MSFS, DCS, X-Plane
VR Support	VR HeadWay motion sickness compensation
Cockpit Compatibility	Aluminium profile (8020) with included brackets
Optional Add-On	QS-PIVOT (2.5DOF yaw enhancement)
Made In	Poland (EU)
2DOF Includes	2x actuators, 1x power cabinet, 1x MC6, 1x power cord, brackets
3DOF Includes	4x actuators, 2x power cabinets, 1x MC6, 2x power cords, brackets

Our Recommendation

Compact industrial actuator system. Entry into Qubic System quality.

Shipping & Fulfilment

1 to 2 weeks delivery. Free UK delivery, all prices include VAT, no import fees or surprise charges. 2-year manufacturer warranty included.

Speak to a specialist

Free advice on configuration and compatibility.

Email Us Call Us

View full details

Industrial precision under your rig

The QS-210 uses the same industrial linear actuator technology that powers Qubic's commercial flight simulators and military training platforms. Two actuators with 60mm stroke bolt to your existing aluminium rig and deliver motion cues so fast and precise that 60mm feels like twice the travel.

Integrated haptics up to 100Hz put road texture, ABS chatter, and kerb rumble through the rig frame itself. No bass shakers needed. No separate transducers. Just the actuators doing everything.

How It Compares

	Qubic QS-210 Actuators £3,750.00	SIMRIG SR1 £2,995.00	ProSimu P3MP £4,945.00
DOF	Depending on config	3	3
Actuator Type	Industrial linear	Industrial	PRS50/PRS200
Max Load	200 kg	175 kg	200 kg
Heave
Traction Loss
Noise Level	Low	Low	Ultra-quiet
Uses Existing Rig

← Swipe to see all products →

Frequently Asked Questions

What is included in the 2DOF Full System?

Two QS-L5 linear actuators with stabilisation plates, one QS-SB2 power cabinet, one QS-MC6 motion controller, one power cord, mounting brackets for aluminium profile cockpits, and all hardware. Everything you need to get moving. Plug in, install QubicManager, and you are racing.

What is included in the 3DOF Full System?

Four QS-L5 linear actuators, two QS-SB2 power cabinets, one QS-MC6 motion controller, two power cords, mounting brackets, and all hardware. Four actuators give you pitch, roll, and heave for kerb detail, surface texture, and suspension feedback.

What is the difference between 2DOF and 3DOF?

2DOF gives you pitch (braking and acceleration tilt) and roll (cornering tilt). These are the two most important motion axes for sim racing. 3DOF adds heave, which is vertical movement reproducing kerb strikes, road surface changes, and suspension compression. 2DOF covers the fundamentals. 3DOF adds the detail layer on top.

What is the QS-PIVOT and do I need it?

An optional rear-mounted pivot bar that creates a 2.5DOF configuration from a 2DOF system. It adds a yaw-like rotation during cornering that enhances traction loss feel. Useful if you want more than 2DOF but are not ready to invest in the full 3DOF system. Not required but a strong upgrade for sim racers focused on car control.

Which cockpits are compatible?

Any aluminium profile (8020 extrusion) cockpit. SimLab, Trak Racer, ASR, Advanced SimRacing, and similar. Mounting brackets included. Steel tube cockpits may need custom adapters.

How loud are the actuators?

Extremely quiet. Among the quietest motion actuators on the market. Suitable for home use without disturbing others. The loudest component is the cooling fan in the power cabinet.

What games are supported?

Over 80 titles including iRacing, Assetto Corsa Competizione, rFactor 2, Automobilista 2, MSFS 2024, DCS World, X-Plane 12, Euro Truck Simulator 2, and any title outputting telemetry data. QubicManager software is free.

Does it work with VR headsets?

Yes. QubicManager includes VR HeadWay technology that compensates for cockpit movement in VR, reducing motion sickness. Works with all PCVR headsets including Pimax, Meta Quest with Link, and Valve Index.

How does the QS-210 compare to the QS-220?

Same actuator family, same controller, same software. QS-210 has 60mm stroke at 400mm/s. QS-220 has 100mm stroke at 800mm/s. More stroke means a wider motion envelope. The QS-220 is the better long-term buy if budget allows.
