SIMRIG SR1 | 3DOF Motion Actuator System | 175kg Weight Capacity

SIMRIG SR1 | 3DOF Motion Actuator System | 175kg Weight Capacity

£3,220.00
£3,220.00
Sale Sold out
VAT included. Free delivery. No import fees. What you see is what you pay.
Rated 4.0
Free UK
Delivery
UK Specialist
Support
Manufacturer
Warranty
PAYMENT METHODS

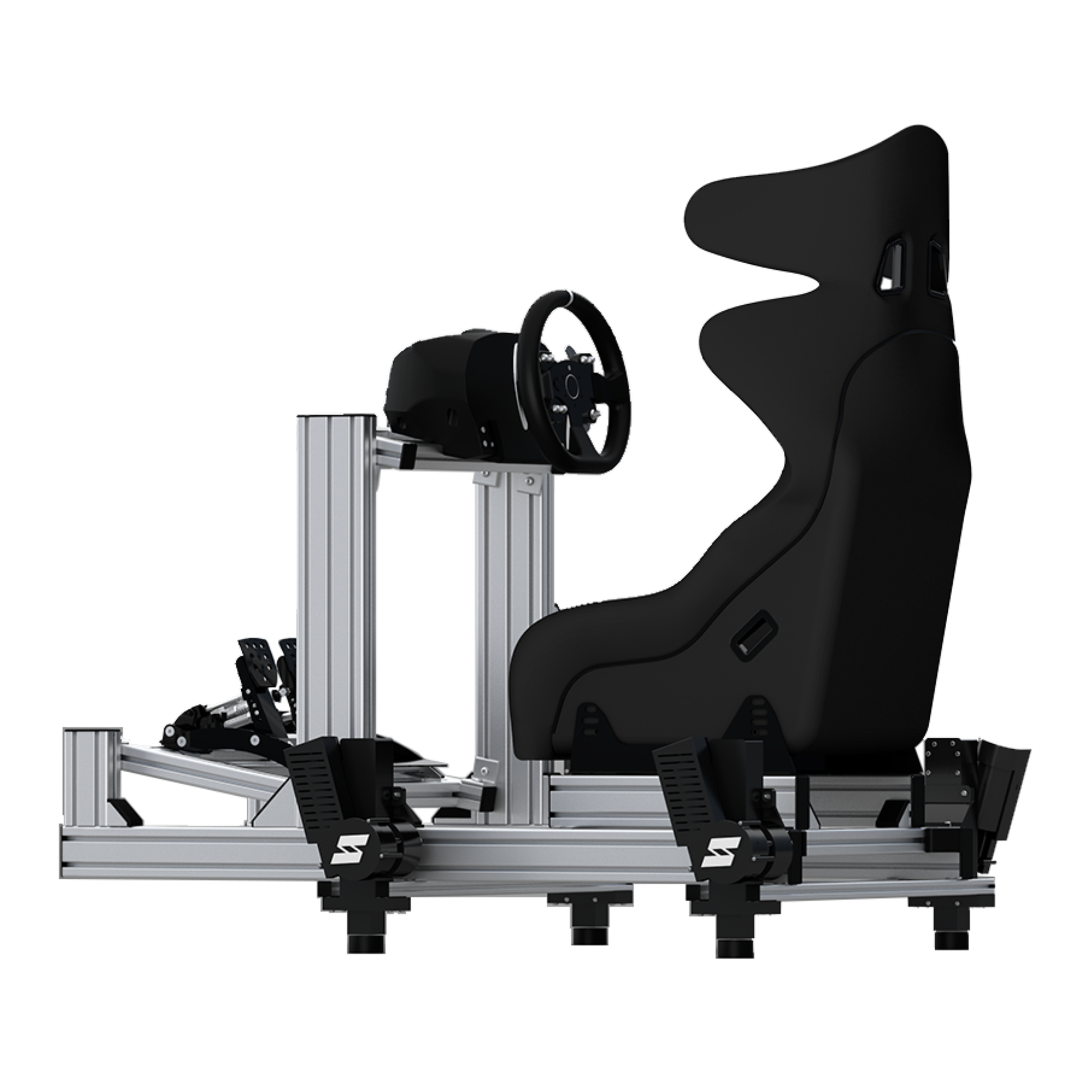

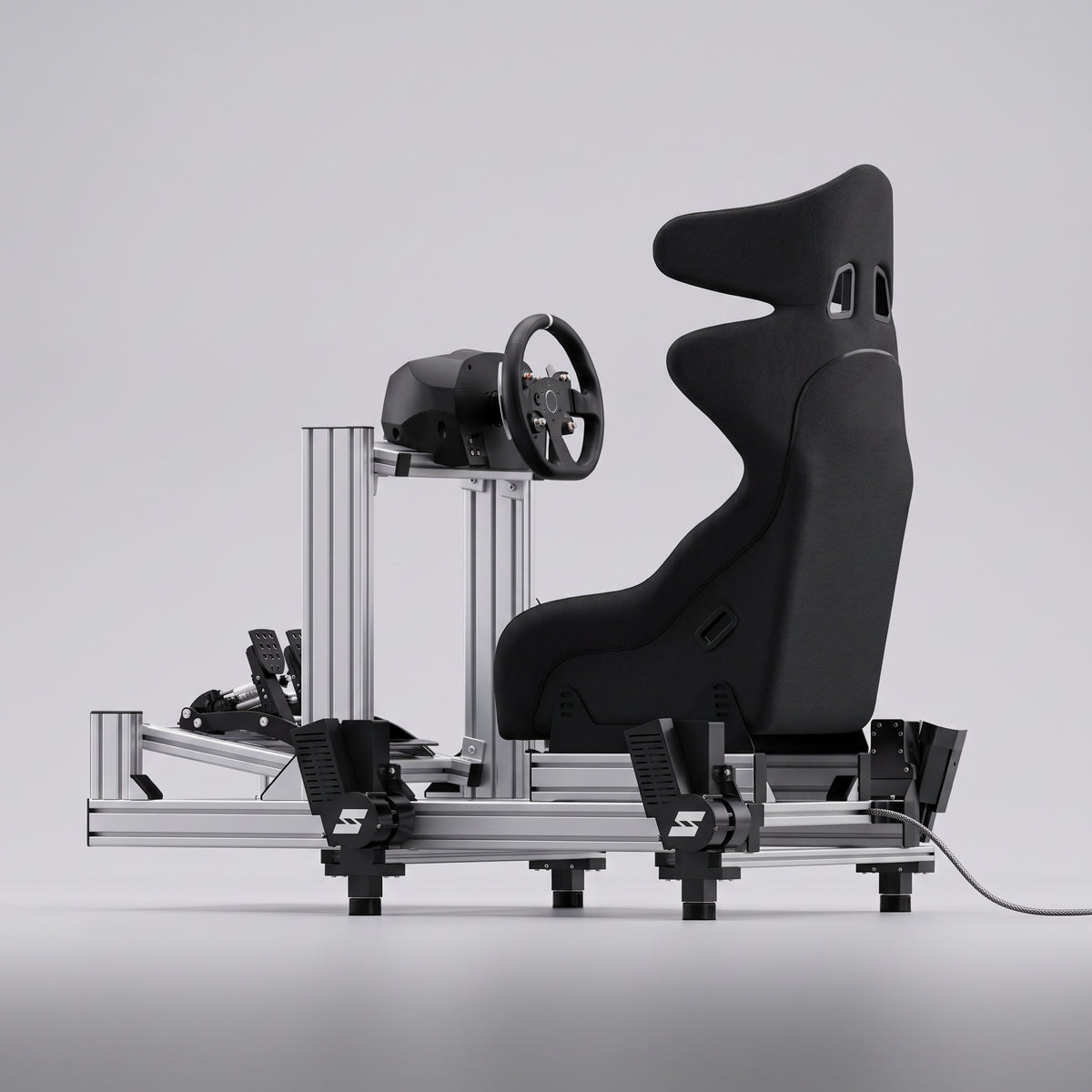

Pitch, roll, and heave from four compact actuators that bolt directly to your existing aluminium rig. The SIMRIG SR1 is a 3DOF motion system designed and built in Sweden since 2018. It mounts underneath your cockpit frame without increasing the footprint of your setup. Your rig gains three axes of motion while looking exactly the same from the outside.

Braking tilts you forward. Cornering rolls you into the apex. Kerbs and bumps push upward through the seat as heave. Three degrees of freedom from a system that fits under your seat, connects via USB, and runs from a standard wall socket. No external controllers, no complex wiring, no permanent modifications to your rig.

SIMRIG Control Center software is included with no subscription fees. It reads telemetry from every major sim title including iRacing, ACC, MSFS, DCS, X-Plane, and dozens more. Plug in, install the software, and the rig starts moving within minutes. Native VR motion compensation is built in for OpenVR and OpenXR headsets.

  • 3DOF motion system: pitch, roll, and heave
  • 175kg max load (driver, rig, and peripherals combined)
  • 70mm actuator travel at 100 mm/s with 0.1mm accuracy
  • 7ms system latency
  • Mounts to 40x40, 60x20, and 80x40mm aluminium rigs
  • Best for drivers under 80kg on lighter rigs
  • SIMRIG Control Center software included, no subscription
  • Designed and built in Sweden
  • Free UK delivery, no import charges

Not included: Aluminium rig, seat, steering wheel, pedals, monitors, and PC. This is a motion actuator system that adds to your existing setup.

Complete the experience with VR. Pair your motion rig with a Pimax headset for full cockpit immersion. View our Immersion range

3DOF MotionPitch, roll, and heave
175kg CapacityDriver, rig, and peripherals
7ms LatencyNear-instant response
0.1mm AccuracyPrecision actuator positioning
Plug and PlayUSB connection, minutes to install
VR ReadyNative motion compensation built in
Silent RunningFanless PSU, rubber dampened
Swedish BuiltDesigned and tested by SIMRIG
Type 3DOF motion actuator system (pitch, roll, heave)

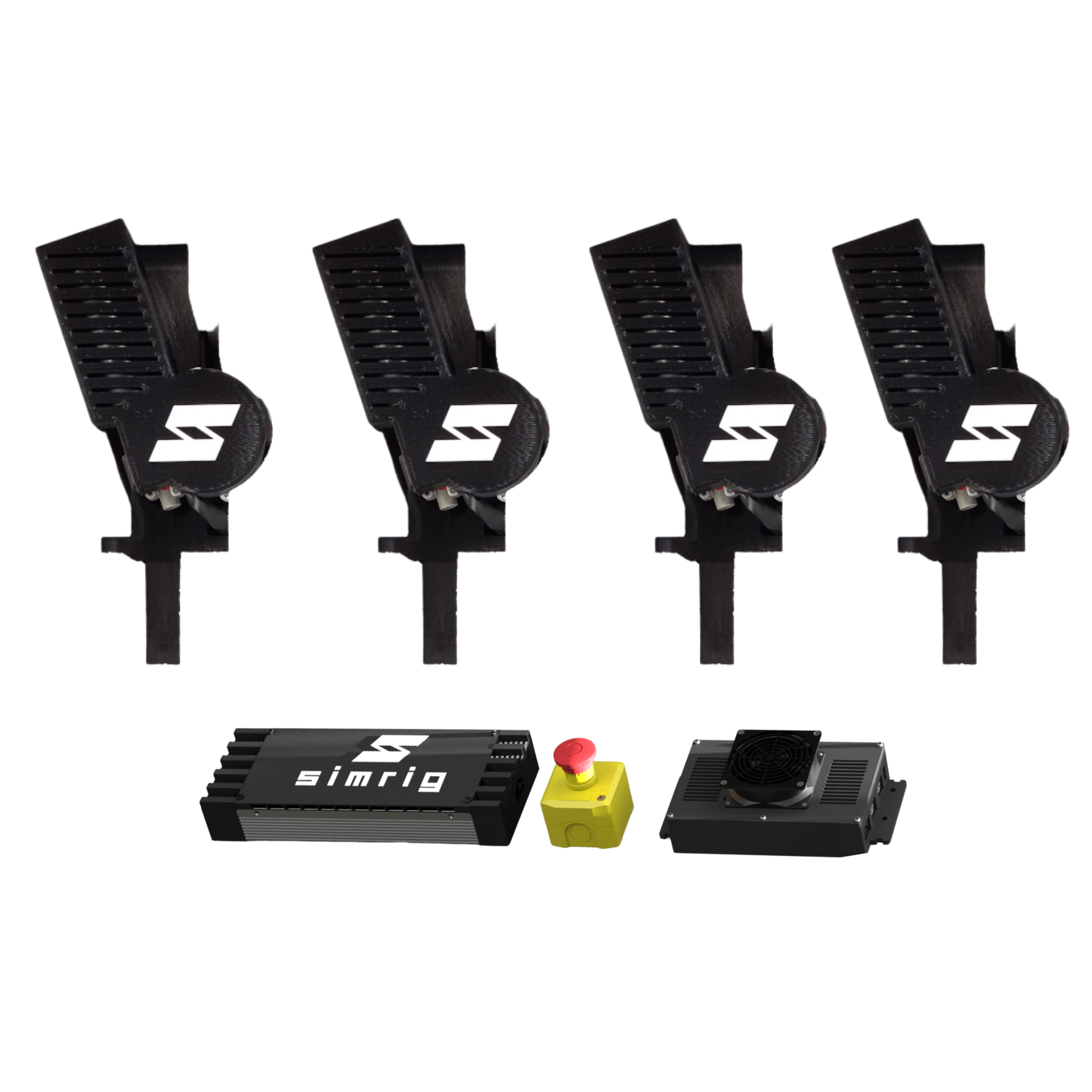

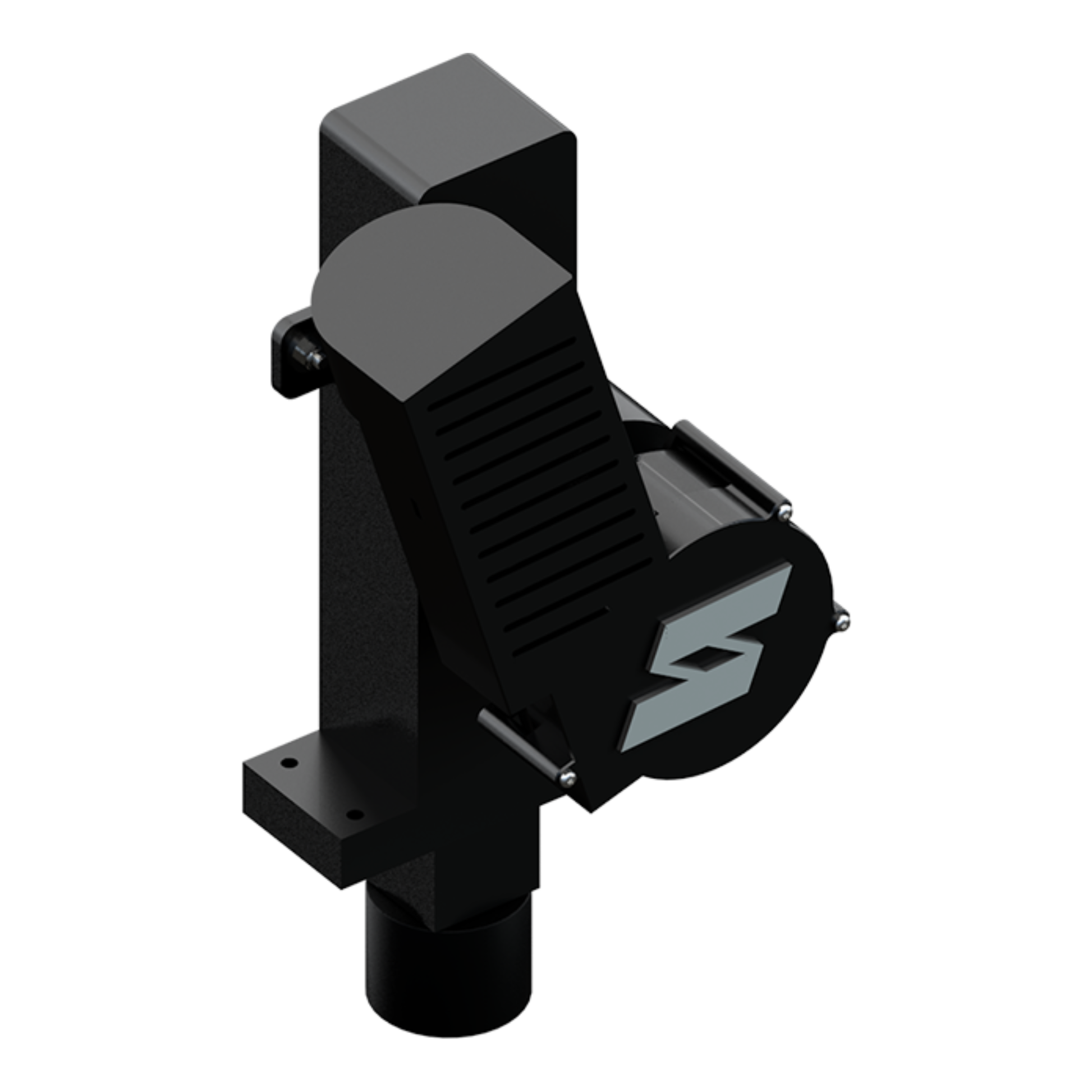

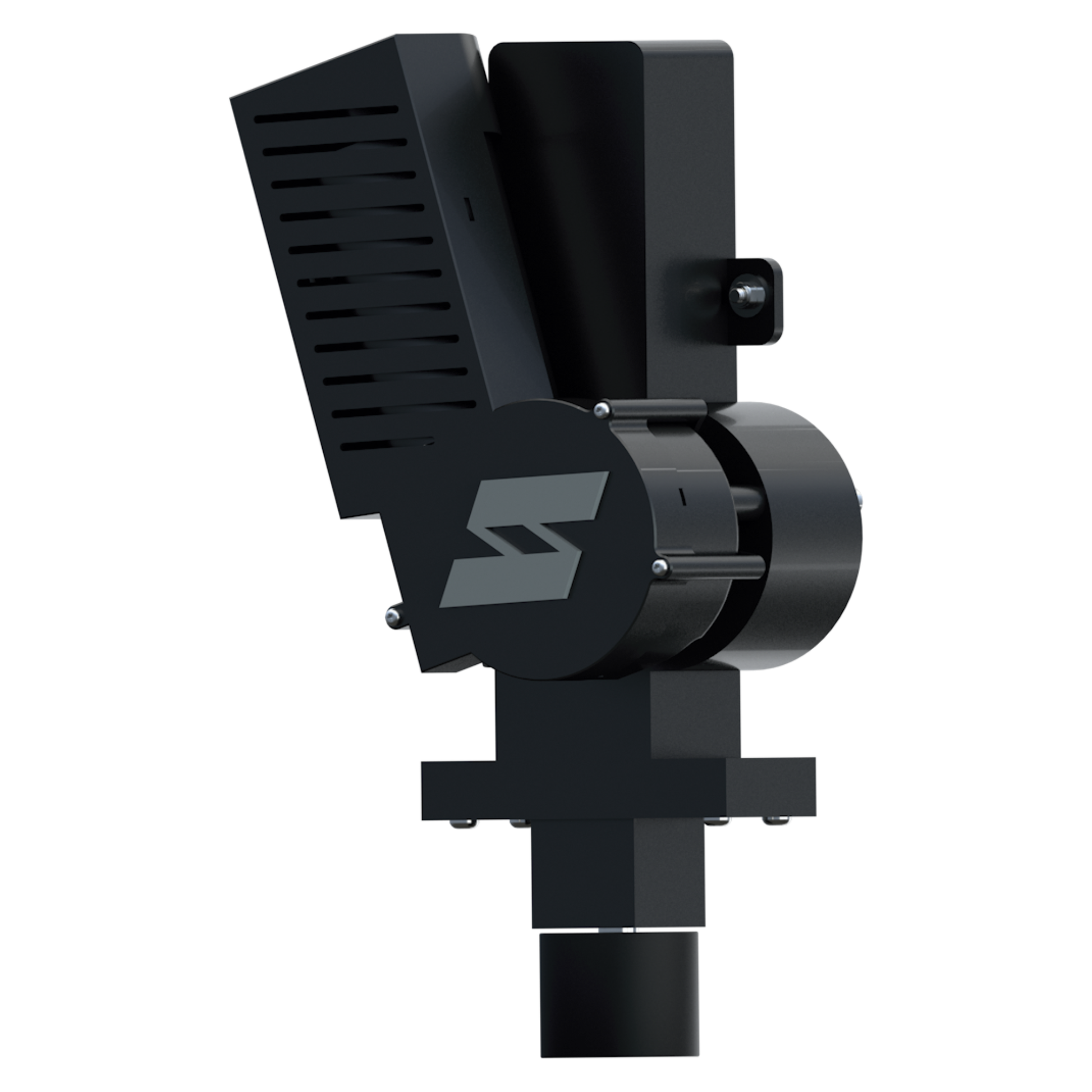

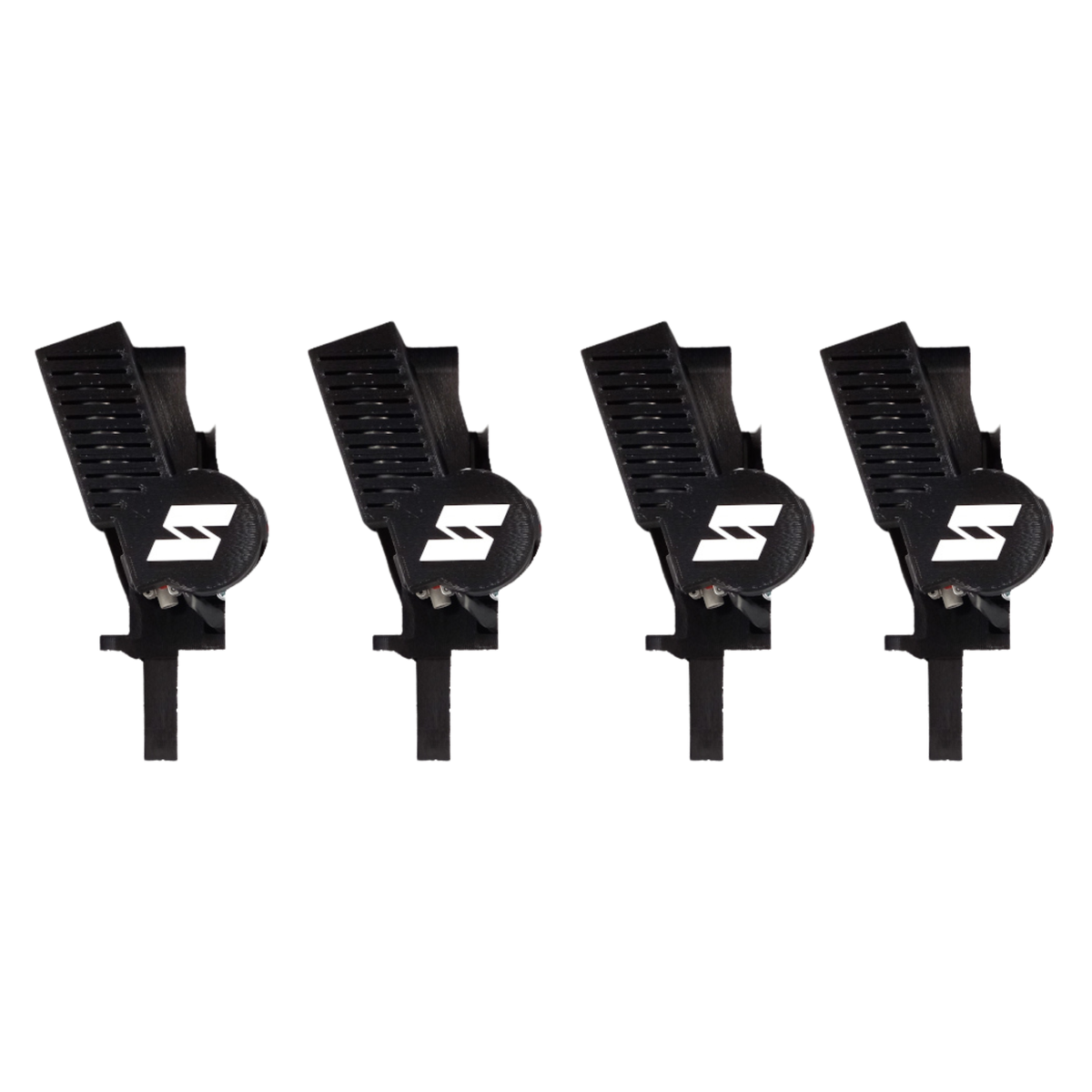

Actuators 4x SIMRIG SR1 linear actuators
Max Load 175kg (driver, rig, and all peripherals combined)
Travel 70mm
Speed 100 mm/s at max load
Accuracy 0.1mm
Latency 7ms
Power 500W, 100-240VAC 50/60Hz (fanless PSU)
Interface USB 2.0 (Mini-B)
Rig Compatibility 40x40, 60x20, 80x40mm aluminium extrusion rigs
Mounting 20x20 profiles (included) or EasyBrackets
Software SIMRIG Control Center (included, no subscription)
VR Support Native motion compensation (OpenVR, OpenXR)
Emergency Stop Included
OS Windows 10/11 (64-bit)

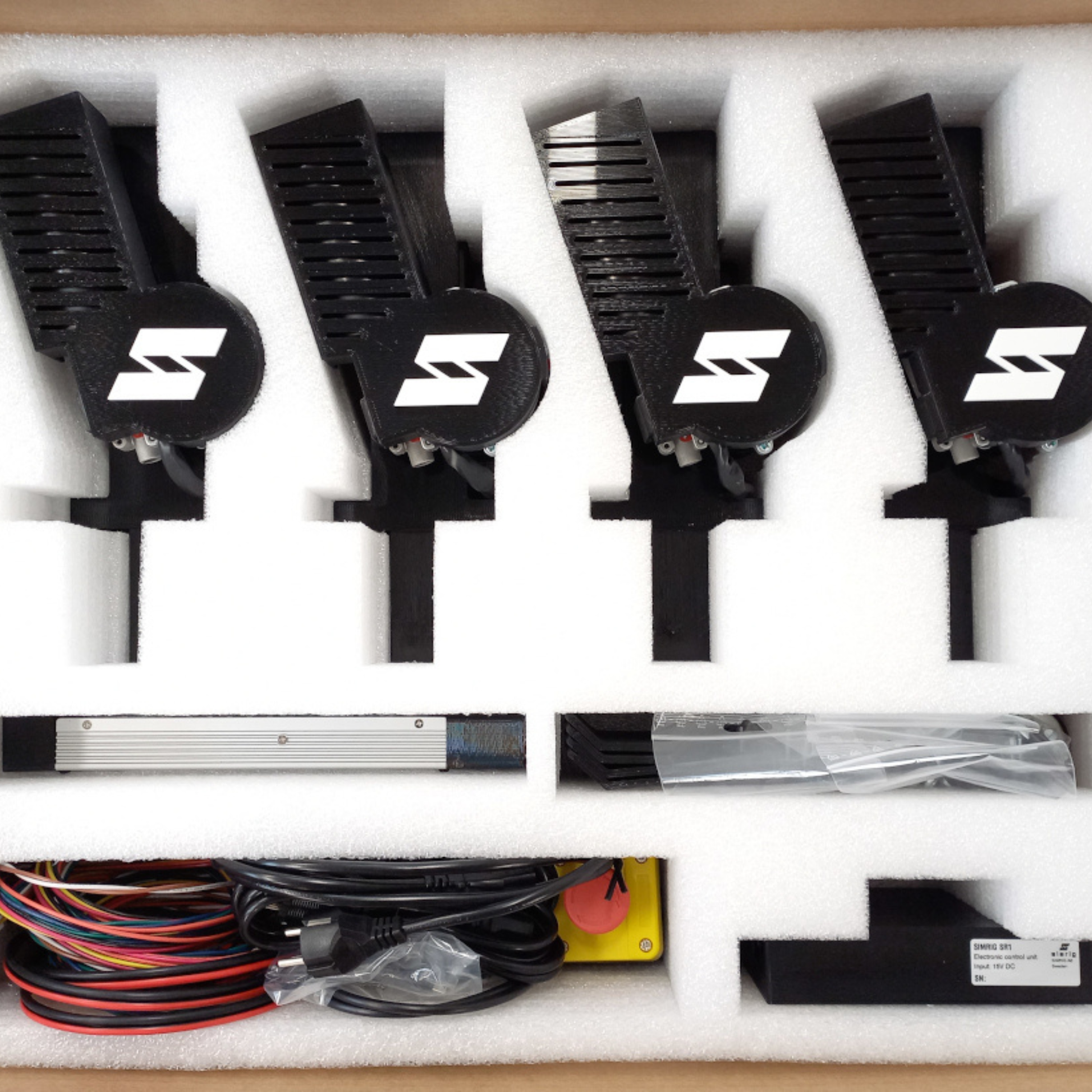

Package 77 x 58 x 19cm, 20kg
Warranty 3 years
Not Included Rig frame, seat, wheel, pedals, monitor, PC
Our Recommendation Best entry point into SIMRIG motion for lighter drivers under 80kg on 40x40 or 80x40 rigs. If your total setup weight exceeds 150kg, step up to the SR2.
Shipping & Fulfilment Designed and built in Sweden by SIMRIG. Typically delivered within 1 to 2 weeks. Free UK delivery, no import charges or customs fees.
Speak to a specialist before you order
Free advice on compatibility with your rig and which SIMRIG model suits your setup. We reply within a few hours during UK business hours.
Email support@simtorque.co.uk Call +44 2046 343 208
View full details

Frequently Asked Questions

What is the difference between SIMRIG and DOF Reality?

SIMRIG is an actuator kit that mounts to your existing aluminium rig. Your rig frame stays, the actuators bolt to the corners, and the whole thing moves. DOF Reality H-series is a standalone platform with its own frame included. Choose SIMRIG if you already own an 8020 rig you want to keep. Choose DOF Reality if you want a complete self-contained platform.

Will the SR1 fit my rig?

Compatible with 40x40, 60x20, and 80x40mm aluminium extrusion rigs. Two mounting options are included: 20x20 profiles that form a base underneath, or EasyBrackets that bolt directly to the sides. If you are unsure about your rig, get in touch and we will check for you.

What is the 175kg max load?

That is the combined weight of you, your rig frame, seat, wheelbase, pedals, monitors, and everything else the actuators are moving. Not just your body weight. If you weigh 80kg and your rig plus peripherals weigh 50kg, your total is 130kg which is within the SR1's limit.

How do I know if I need the SR1, SR2, or SR3?

SR1 is best for drivers under 80kg on lighter 40x40 or 80x40 rigs. SR2 covers drivers under 120kg on mid to heavy rigs. SR3 handles drivers over 120kg or heavily loaded rigs. Add up your total weight including the rig and compare it to each model's max load.

Is it loud?

No. The power supply is fanless. The ECU fan only runs when necessary. Rubber pads on each actuator absorb vibration and stop the system from transmitting noise through the floor.

Does it work with VR?

Yes. SIMRIG Control Center includes native VR motion compensation for OpenVR and OpenXR headsets. Your head stays stationary in VR while the rig moves around you.

What games are supported?

iRacing, Assetto Corsa, ACC, Assetto Corsa EVO, MSFS 2020, MSFS 2024, DCS, X-Plane, rFactor 2, Le Mans Ultimate, BeamNG, Euro Truck Simulator 2, Gran Turismo 7, and many more. Full list available on the SIMRIG documentation site.

How long does delivery take?

Typically 1 to 2 weeks. Dispatched from Sweden within a couple of days and shipped free to the UK. No import charges or customs fees.
