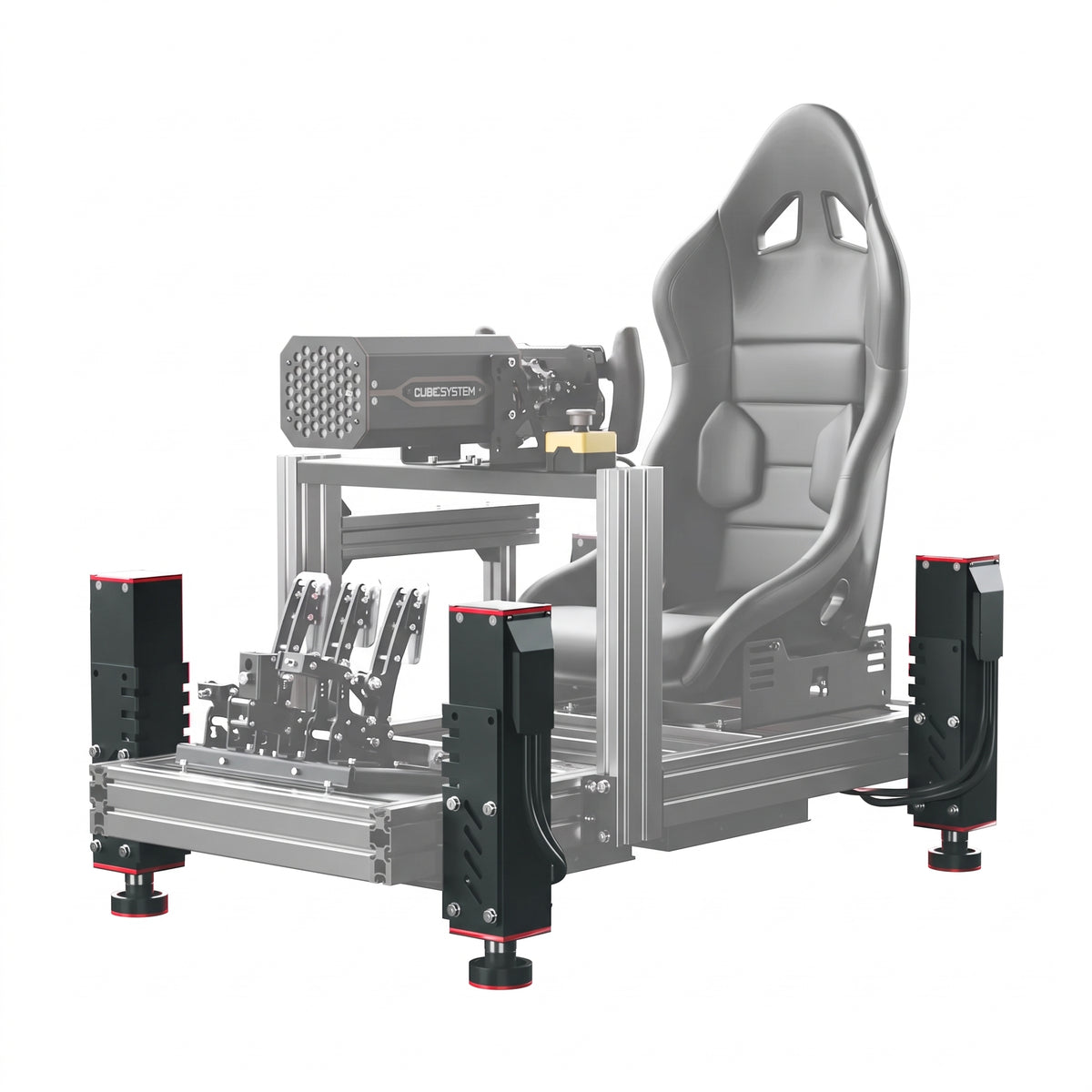

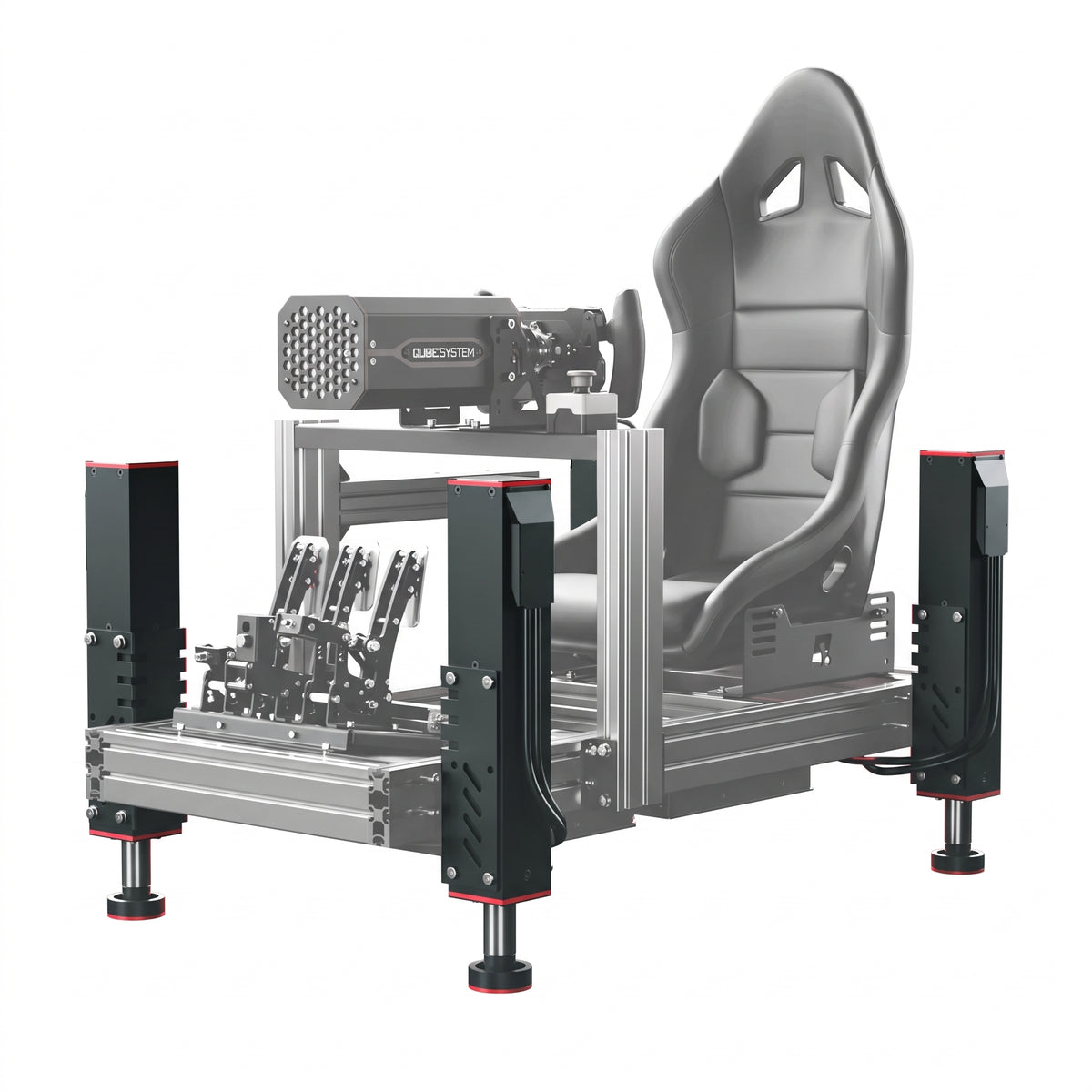

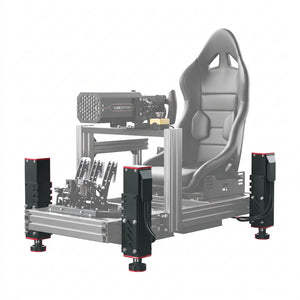

Qubic System 3DOF Motion Set | QS-210/QS-220 | True Heave | 4 Actuators

Qubic System 3DOF Motion Set | QS-210/QS-220 | True Heave | 4 Actuators

Rated 4.1 out of 5
£6,250.00
£6,250.00
Sale Sold out
VAT included. No import fees.
Pay in 3 interest-free payments with PayPal. Subject to status.
Free UK
Delivery
UK Specialist
Support
Manufacturer
Warranty
Actuator

Four industrial linear actuators delivering true pitch, roll, and independent heave. No simulated axes, no compromises. Every kerb strike, every elevation change, every braking event hits you as a distinct physical force because each corner of your rig has its own dedicated actuator calculating and delivering motion independently. Road texture comes through the integrated 100Hz haptics. Surface transitions register instantly. The car stops being something you watch and starts being something you sit inside.

Choose QS-210 actuators for 60mm stroke at 400mm/s or QS-220 for 100mm stroke at 800mm/s with 350kg heavy-duty payload. Both sets include two power cabinets, M10 controller, Motion-Lock safety switch, mounting brackets for standard 8020 aluminium rigs, and Qubic Manager software with per-game motion profiles. Built in Poland using the same industrial actuator technology that powers Qubic's commercial and military platforms.

Degrees of Freedom3DOF (pitch, roll, true independent heave)
Actuators4x industrial linear actuators with integrated haptics up to 100Hz
LatencyUnder 8ms system latency
PayloadQS-210: 250kg | QS-220: 350kg (Heavy Duty)
VelocityQS-210: 400mm/s | QS-220: 800mm/s
Upgrade PathAdd QS-CH2 platform to upgrade to 5DOF (surge + yaw)

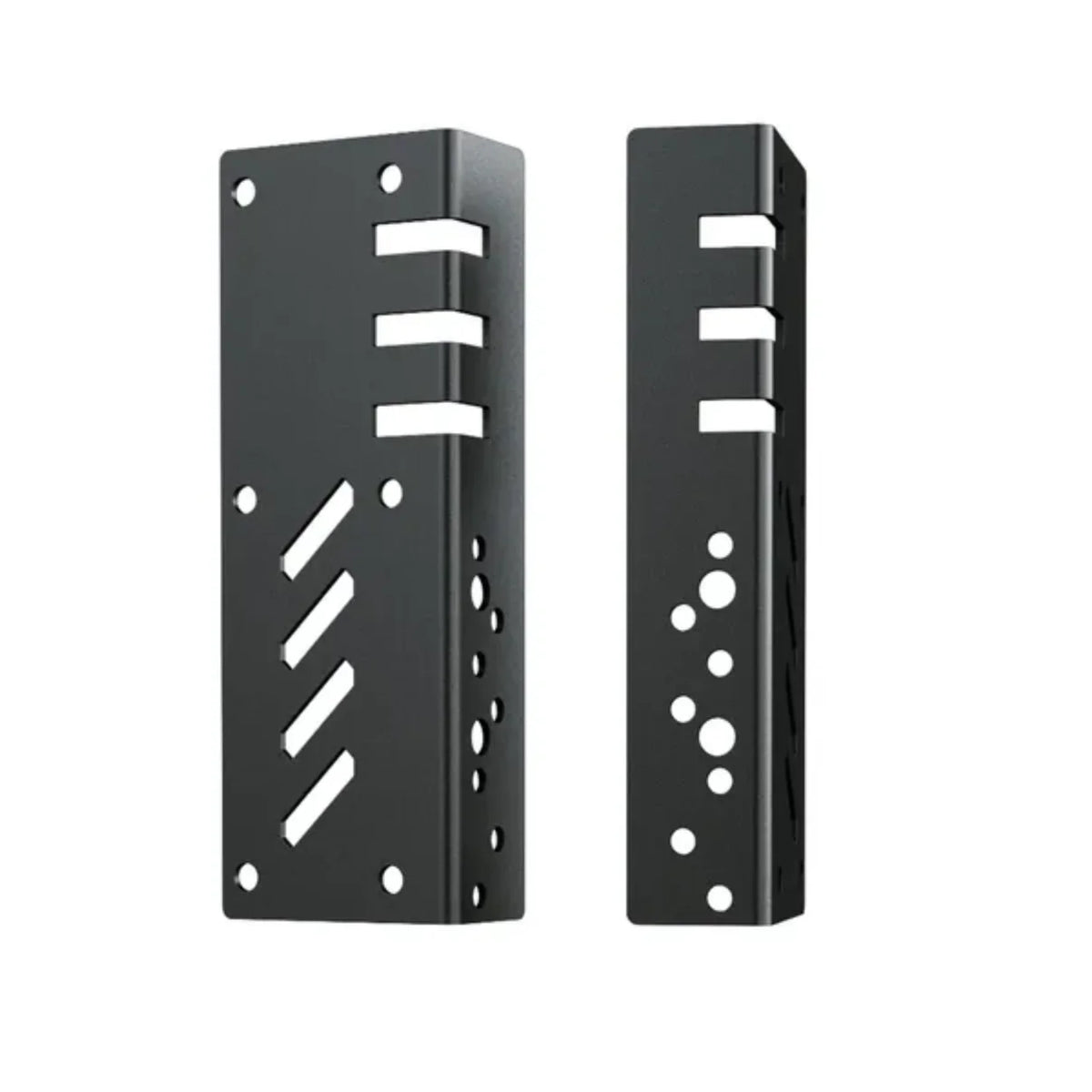

CompatibilityStandard 8020 aluminium profile rigs. Brackets and adapters included
Made InPoland / EU
Degrees of Freedom 3DOF (pitch, roll, heave)
Actuators 4x industrial linear actuators
Stroke (QS-210) 60mm / 2.36 in
Stroke (QS-220) 100mm / 3.93 in
Max Velocity (QS-210) 400mm/s
Max Velocity (QS-220) 800mm/s
Max Acceleration (QS-210) 0.6G
Max Acceleration (QS-220) 0.8G
Payload (QS-210) 250kg
Payload (QS-220) 350kg (Heavy Duty mode)
System Latency Under 8ms
Haptics Up to 100Hz integrated

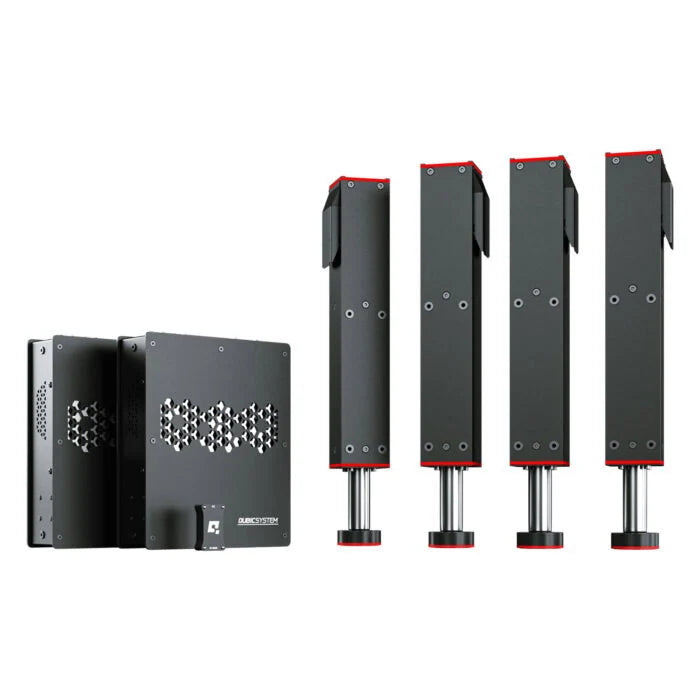

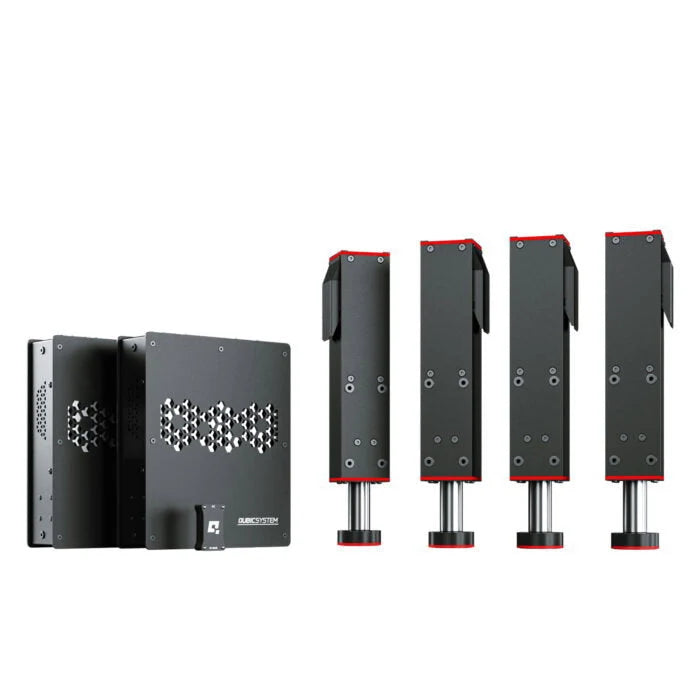

Included 4x actuators with brackets, 2x Power Cabinets, 1x M10 Controller, 1x Motion-Lock Switch, Qubic Manager Software
Compatibility Standard 8020 aluminium profile rigs. Brackets and flat face adapters included
Upgrade Path Add QS-CH2 for 5DOF (surge + yaw)
Warranty 24 months (home use) / 12 months (commercial use)
Our Recommendation
The complete 3DOF set for serious sim racers and flight sim pilots. Four independent actuators deliver true heave that the 2.5DOF set can only simulate. If budget allows, this is the one to buy.
Shipping & Fulfilment
1 to 2 weeks delivery. Free UK delivery, all prices include VAT, no import fees or surprise charges. 2-year manufacturer warranty included.
Speak to a specialist
Free advice on configuration and compatibility.
Email Us Call Us
View full details
Four corners. Four independent actuators. Zero compromise.

Each corner of your rig runs its own actuator calculating and delivering force independently. When you hit a kerb on the inside front, only that corner reacts. When you crest a hill and the car goes light, all four drop simultaneously. The difference between simulated heave and true heave is the difference between feeling the idea of a surface change and feeling the actual surface change. Four actuators make the road real.
Qubic System 3DOF Motion Set | QS-210/QS-220 | True Heave | 4 Actuators Qubic System

Industrial actuators built for commercial duty. Running in your spare room.

Qubic builds motion systems for military flight trainers, professional driving simulators, and commercial entertainment venues. The actuators in your 3DOF set are the same units installed in systems that run 12 hours a day, 7 days a week, for years.

You get commercial-grade durability at a consumer price point, with integrated haptics up to 100Hz that put road texture and ABS chatter directly through the rig frame without needing separate bass shakers or transducers. One system handles both the macro forces and the micro detail.

3DOF
Pitch, Roll + True Heave
4
Independent Actuators
100Hz
Integrated Haptics
<8ms
System Latency

How It Compares

Qubic System 3DOF Motion Set | QS-210/QS-220 | True Heave | 4 Actuators Qubic System
Qubic 3DOF Set (QS-210)
£6,250.00
SIMRIG SR2 | 3DOF Motion Actuator System | 225kg Weight Capacity SIMRIG
SIMRIG SR2
£3,505.00
ProSimu P3MP | 3DOF Motion Platform | Traction Loss
ProSimu P3MP
£4,945.00
Axes 3DOF (pitch, roll, true heave) 3DOF (pitch, roll, heave) 3DOF (pitch, roll, traction loss)
Actuators 4x industrial linear 4x linear 3x PRS200 linear
Payload 250kg 225kg 200kg
Haptics Integrated up to 100Hz None (add separately) None (add separately)
Latency Dedicated QS-CH2 platform Via traction loss axis Via worm gear
Noise Level Whisper quiet Low Ultra quiet
Latency Under 8ms 7ms Under 10ms
Warranty 2 years 3 years 1 year
Upgrade Path Add QS-CH2 for 5DOF No modular upgrade Add actuators for 4DOF+
← Swipe to see all products →

Frequently Asked Questions

Why is the 3DOF set more expensive than SIMRIG or ProSimu?

Qubic uses industrial-grade linear actuators rated for sustained commercial operation. The integrated haptics up to 100Hz eliminate the need for separate bass shakers. You get the motion system and the haptic system in one package. The higher price reflects commercial-grade hardware, not a markup.

What is the difference between QS-210 and QS-220 actuators?

QS-210 has 60mm stroke, 400mm/s velocity, and 250kg payload. QS-220 has 100mm stroke, 800mm/s velocity, and 350kg payload. Choose QS-220 for heavier rigs (triple monitors, direct-drive base, full peripheral setup) or if you want more travel range for a more dramatic motion feel.

Can I upgrade to 5DOF later?

Yes. Add the QS-CH2 traction loss platform underneath your rig for surge and yaw. All your existing 3DOF hardware stays in place. The CH2 adds the fourth and fifth axes below the actuators.

Does the set include everything I need?

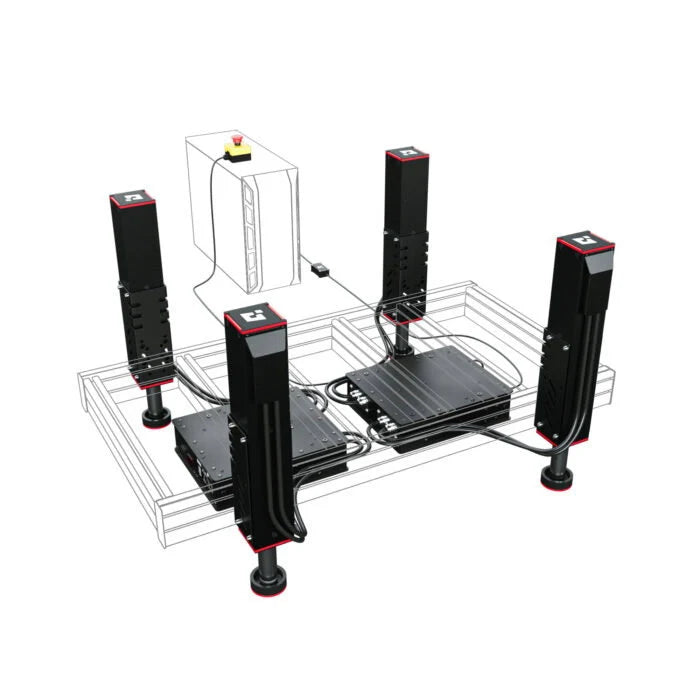

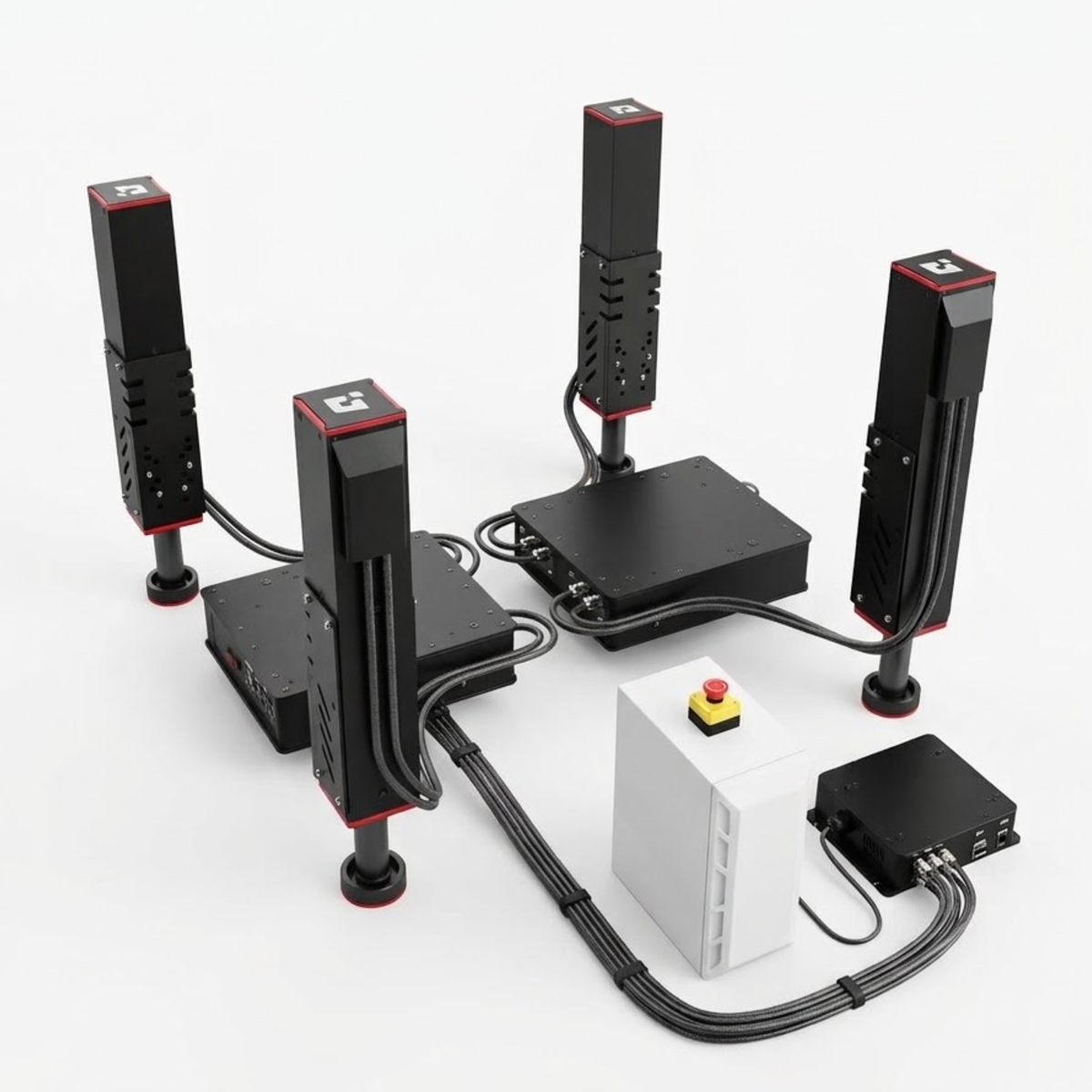

Yes. Four actuators with mounting brackets, two power cabinets, M10 controller, Motion-Lock safety switch, and Qubic Manager software. Just supply your own 8020 aluminium rig.

How long does installation take?

Approximately 2-3 hours for a standard 8020 rig. Bolt the actuators to each corner, connect the cables, install Qubic Manager, and calibrate. No permanent modifications to your rig.

Do you offer installation?

Our products are designed for self-assembly. Full instructions are provided by the manufacturer. Assembly typically takes 2-3 hours for the 2.5DOF and 3DOF sets, and 3-4 hours for the 5DOF set including the QS-CH2 platform. If you need hands-on help, we recommend hiring a local handyman or technician.

What is the delivery time?

1 to 2 weeks delivery if in stock. Free delivery, all prices include VAT, no import fees or surprise charges at the door.

What is the warranty?

2-year manufacturer warranty for home use. 1-year warranty for commercial use. Commercial warranty extensions are available on request. Warranty covers defects in materials and workmanship.

Can I use this with VR?

Yes. Qubic systems are compatible with all major VR headsets. Motion compensation is supported through third-party tools like OXRMC to keep the virtual horizon locked to the platform movement.

Do I need bass shakers or transducers with this?

No. Qubic actuators include integrated haptics up to 100Hz which deliver road texture, ABS chatter, and surface detail directly through the rig frame. Most users find the built-in haptics eliminate the need for separate shakers entirely.

What power supply do I need?

Standard UK 13A plug socket. Single-phase 230V AC. The power cabinets included with the set handle all power distribution. No special wiring or dedicated circuits needed.

Is it noisy enough to disturb neighbours?

Qubic's industrial linear actuators are among the quietest motion hardware available. Suitable for flats, terraced houses, and shared spaces. Significantly quieter than gear-driven or belt-driven alternatives.
