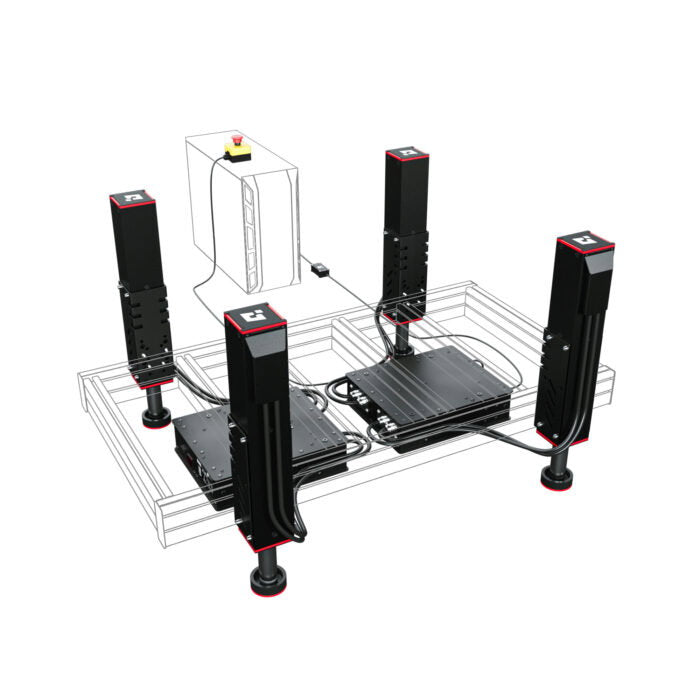

  • QS-220 full 3DOF set installed in cockpit
  • Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke Qubic System
  • Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke Qubic System
  • Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke Qubic System
  • Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke Qubic System

Qubic System

Qubic QS-220 | Industrial Linear Actuator System | 100mm Stroke

Qubic QS-220 | Industrial Linear Actuator System | 100mm Stroke

Rated 4.1 out of 5
£4,850.00
£4,850.00
Sale Sold out
VAT included. No import fees.
Pay in 3 interest-free payments with PayPal. Subject to status.
Free UK
Delivery
UK Specialist
Support
Manufacturer
Warranty
Configuration

Industrial-grade linear actuators with 100mm stroke, double the travel of the QS-210 and the same actuators used in the £17,759 QS-V20 turnkey cockpit. Available as a 2DOF full system (one pair) or 3DOF full system (two pairs). Everything included. No separate purchases required.

800mm/s maximum speed makes the QS-220 the fastest actuator set in consumer sim racing. Sub-8ms latency at 1000Hz means every bump, brake, slide, and surface change arrives before your eyes finish processing the visual. Double the QS-210 stroke means sustained cornering, aggressive kerb riding, and flight sim pitch holds are reproduced cleanly.

QubicManager software is free, developed in-house, and supports over 80 racing and flight titles. Expandable to 5DOF with the QS-CH2 surge and yaw platform. Every Qubic component works together and nothing gets replaced as you scale up.

2DOF Full System includes: 2x QS-L1 linear actuators, 1x power cabinet, 1x QS-MC6 controller, 1x power cord, mounting brackets, adapters, and hardware. Delivers pitch and roll.

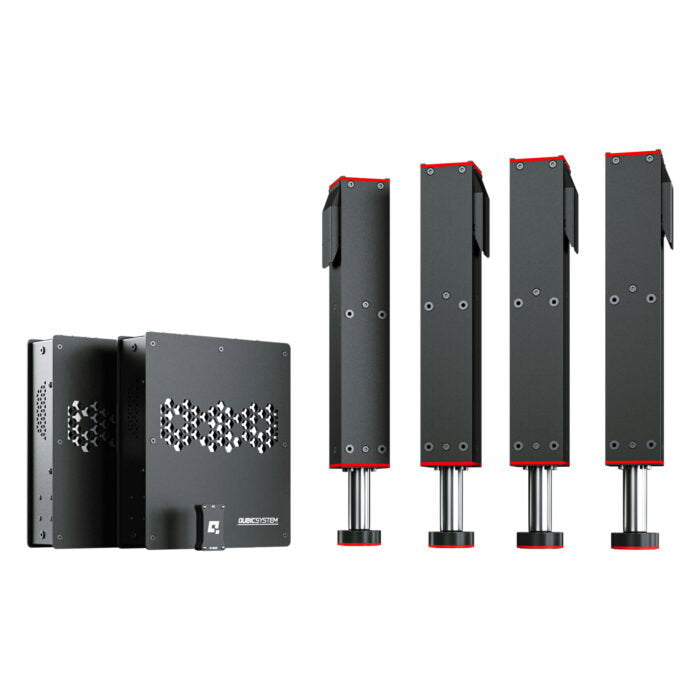

3DOF Full System includes: 4x QS-L1 linear actuators, 2x power cabinets, 1x QS-MC6 controller, 2x power cords, mounting brackets, adapters, and hardware. Delivers pitch, roll, and heave.

Optional: QS-PIVOT (sold separately). Rear-mounted pivot bar that adds yaw-like rotation to a 2DOF setup. Compatible with QS-220. Available as an add-on on this page.

Complete the experience with VR. Pair this platform with a Pimax headset for full cockpit immersion. View our Immersion range

Actuator Speed800mm/s (fastest in sim racing)
Acceleration0.8G maximum
Stroke Length100mm (double QS-210)
LatencySub-8ms response time
Control Frequency1000Hz update rate
Same As QS-V20Identical actuators to the £17,759 cockpit
Free UK DeliveryIncluded
Expandable To5DOF with QS-CH2 platform
Actuator Type Industrial linear actuator (QS-L1)
Stroke Length 100mm (3.93 inches)
Maximum Speed 800mm/s (Performance) / 600mm/s (Heavy Duty)
Maximum Acceleration 0.8G (Performance) / 0.6G (Heavy Duty)
Latency Less than 8ms
Control Frequency 1000Hz
Vibration Range 0-100Hz
Payload (3DOF) Up to 250kg (551 lb)
Architecture 2DOF / 3DOF / expandable to 5DOF with QS-CH2
Power Supply 115/230 VAC single phase
Software QubicManager (free)
Game Compatibility 80+ titles inc. iRacing, ACC, rFactor 2, MSFS, DCS, X-Plane
VR Support VR HeadWay motion sickness compensation
Cockpit Compatibility Aluminium profile (8020) with included brackets
Same Actuators As QS-V20 4DOF Motion Cockpit (£17,759)
Optional Add-On QS-PIVOT (2.5DOF yaw enhancement)
Made In Poland (EU)
2DOF Includes 2x actuators, 1x power cabinet, 1x MC6, 1x power cord, brackets
3DOF Includes 4x actuators, 2x power cabinets, 1x MC6, 2x power cords, brackets
Our Recommendation
Upgraded actuator system with 100mm stroke and higher load capacity than the QS-210.
Shipping & Fulfilment
1 to 2 weeks delivery. Free UK delivery, all prices include VAT, no import fees or surprise charges. 2-year manufacturer warranty included.
Speak to a specialist
Free advice on configuration and compatibility.
Email Us Call Us
View full details

More travel. More force. Same precision.

The QS-220 takes the QS-210 formula and adds 100mm of stroke with higher load capacity. For heavier rigs, wider cockpits, and setups where the QS-210 runs out of headroom.

The same industrial linear actuators rated for sustained daily use. The same integrated haptics up to 100Hz. The same whisper-quiet operation that makes Qubic systems some of the quietest motion hardware on the market. If your rig weighs over 80kg loaded or you run a direct-drive base with triple monitors, this is the one.

How It Compares

Qubic QS-210 | Compact Linear Actuator System | 60mm Stroke Qubic System
Qubic QS-220 Actuators
£4,850.00
SIMRIG SR2 | 3DOF Motion Actuator System | 225kg Weight Capacity SIMRIG
SIMRIG SR2
£3,505.00
ProSimu P3MP | 3DOF Motion Platform | Traction Loss
ProSimu P3MP
£4,945.00
DOF Depending on config 3 3
Actuator Type Industrial linear Industrial PRS50/PRS200
Max Load 250 kg 225 kg 200 kg
Heave
Traction Loss
Noise Level Low Low Ultra-quiet
Uses Existing Rig
← Swipe to see all products →

Frequently Asked Questions

What is included in the 2DOF Full System?

Two QS-L1 industrial linear actuators with cup holders, one QS-SB2 power cabinet, one QS-MC6 motion controller, one power cord, mounting brackets, flat face profile adapters, and all hardware. Complete system, nothing else needed.

What is included in the 3DOF Full System?

Four QS-L1 actuators, two QS-SB2 power cabinets, one QS-MC6 motion controller, two power cords, mounting brackets, adapters, and all hardware. Full 3DOF with pitch, roll, and heave.

Are these really the same actuators as the QS-V20?

Yes. Identical QS-L1 industrial linear actuators. Same 100mm stroke, same 800mm/s speed, same precision. The QS-V20 packages them inside a complete turnkey cockpit with frame and seat for £17,759. The QS-220 gives you the actuators at a fraction of that cost to mount on the rig you already own.

What is the QS-PIVOT and do I need it?

An optional pivot bar that adds yaw-like rotation to a 2DOF system, creating 2.5DOF. Compatible with the QS-220 but the cockpit sits slightly lower at mid-stroke due to the longer actuator body. An aluminium profile spacer can level this out if preferred. Good upgrade for traction loss feel without going full 3DOF.

Can I expand to 5DOF?

Yes. Mount the QS-220 actuators on top of a QS-CH2 surge and yaw platform. The QS-CH2 adds surge (forward and back) and yaw (rotation) for a 5DOF system. Contact us if you want to discuss a 5DOF build.

Why 100mm stroke instead of 60mm?

Double the travel means the actuators can reproduce larger positional changes and sustain motion angles longer. Most noticeable in high-downforce cars with sustained cornering loads, aggressive kerb riding, and flight simulation where pitch and roll need to be held for extended periods.

What cockpits are compatible?

Any aluminium profile (8020) cockpit with the included brackets and flat face adapters. SimLab, Trak Racer, ASR, and similar. Designed specifically for 8020 extrusion mounting.

What GPU or PC specs do I need?

QubicManager runs alongside your sim with minimal CPU load. Your PC specs are determined by your games and display setup, not the motion platform. Any PC running sim titles can run QubicManager.

How does the QS-220 compare to DOF Reality?

Different products. DOF Reality sells complete platforms with frame and seat included. The QS-220 is an actuator system for your existing cockpit. DOF offers more DOF options (up to 6DOF). Qubic offers faster, more precise actuators. If you own a quality rig already, the QS-220 upgrades it. If you need everything from scratch, DOF Reality is the complete solution. SimTorque stocks both.

Is it suitable for flight simulation?

Very. 100mm stroke is particularly well suited to flight sim where sustained pitch and roll angles need to be held cleanly. Compatible with MSFS, DCS, X-Plane, and all flight titles. VR HeadWay support included for motion sickness reduction in VR flight.
