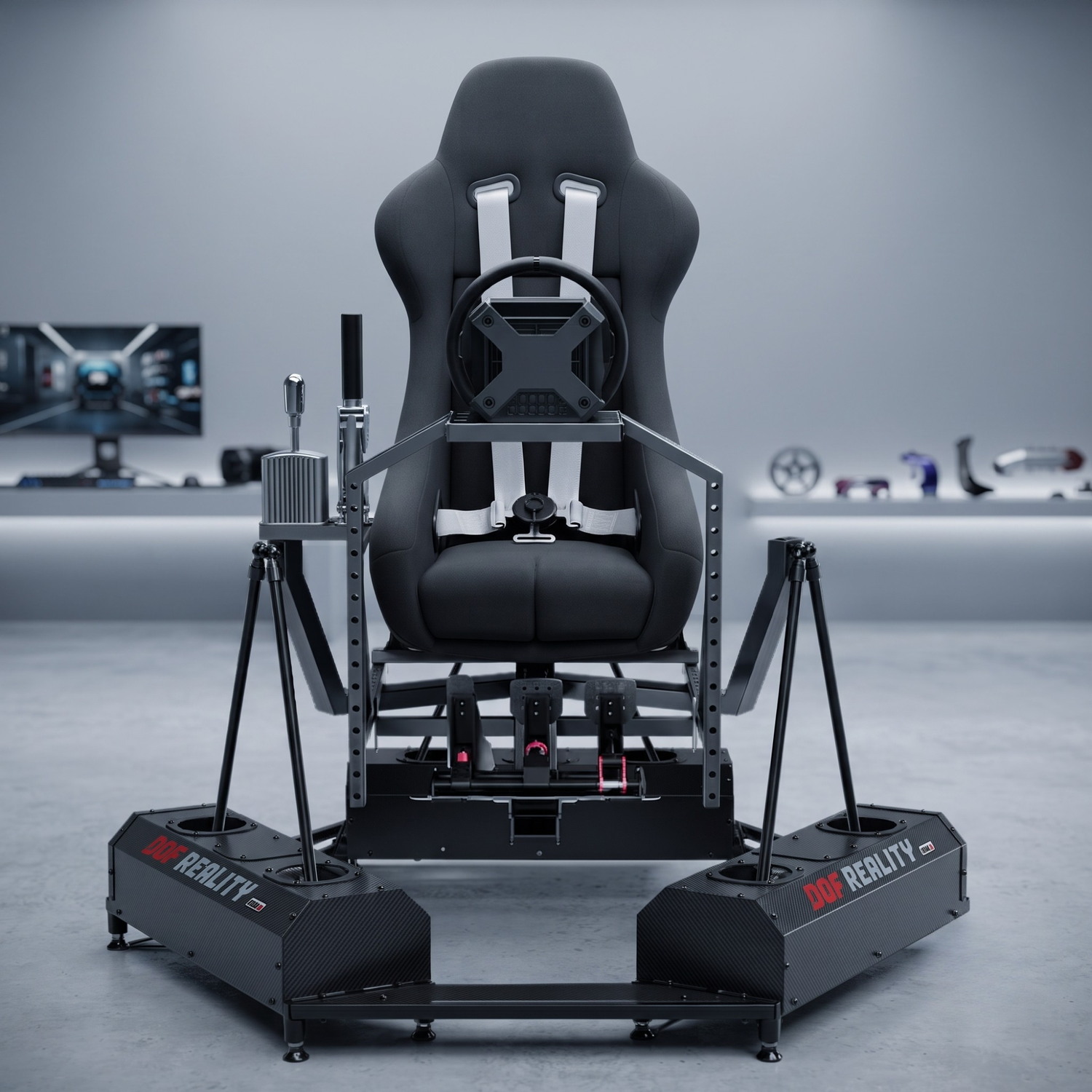

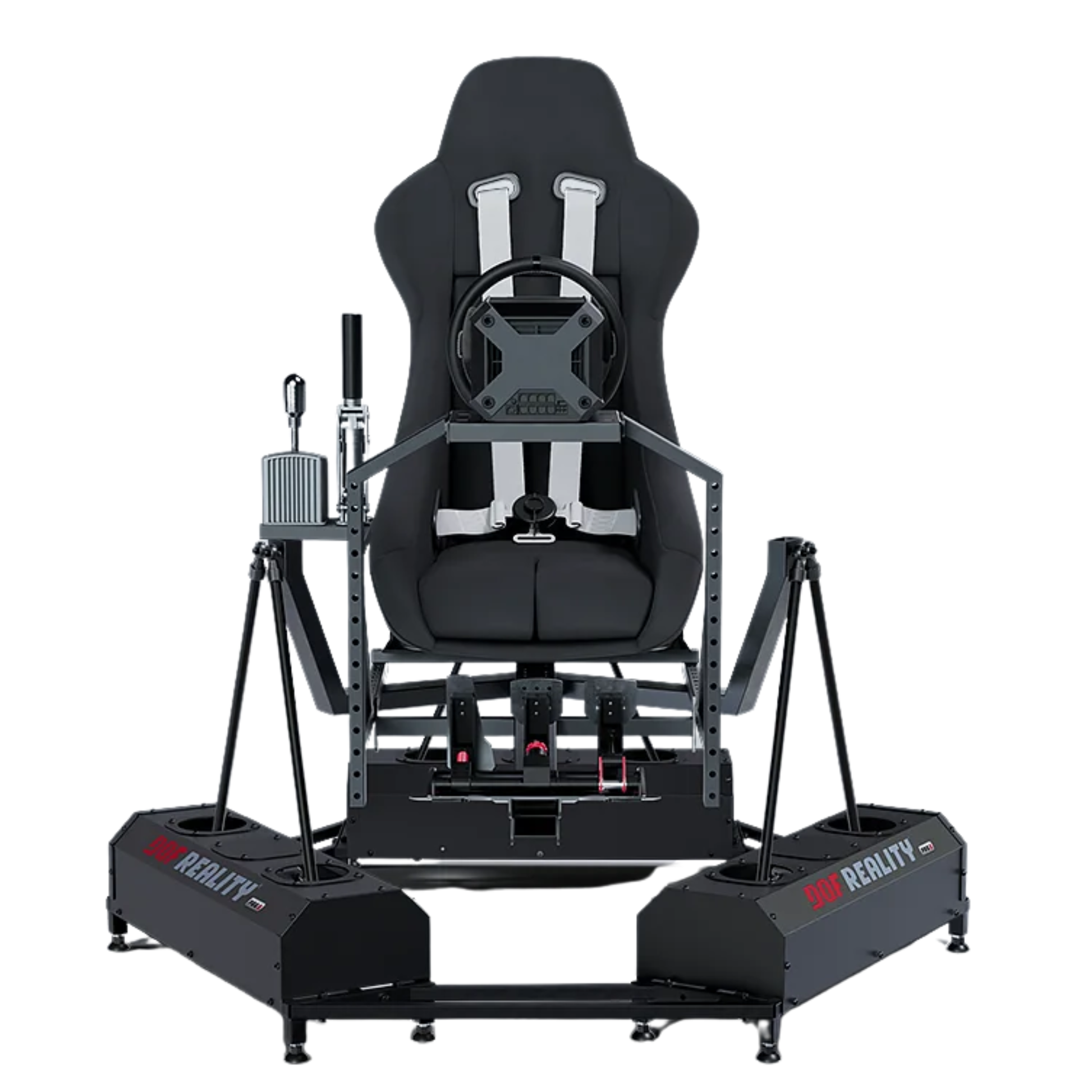

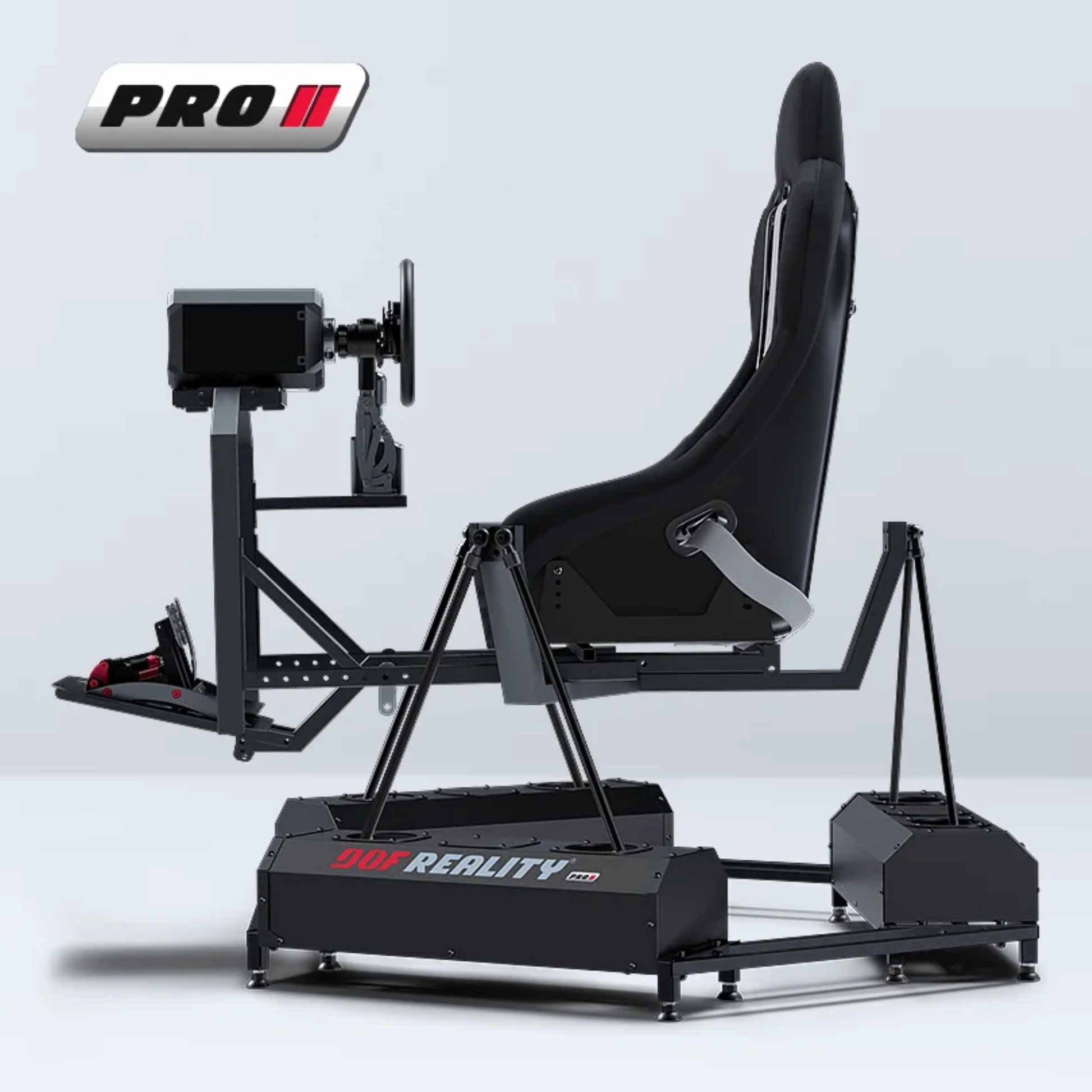

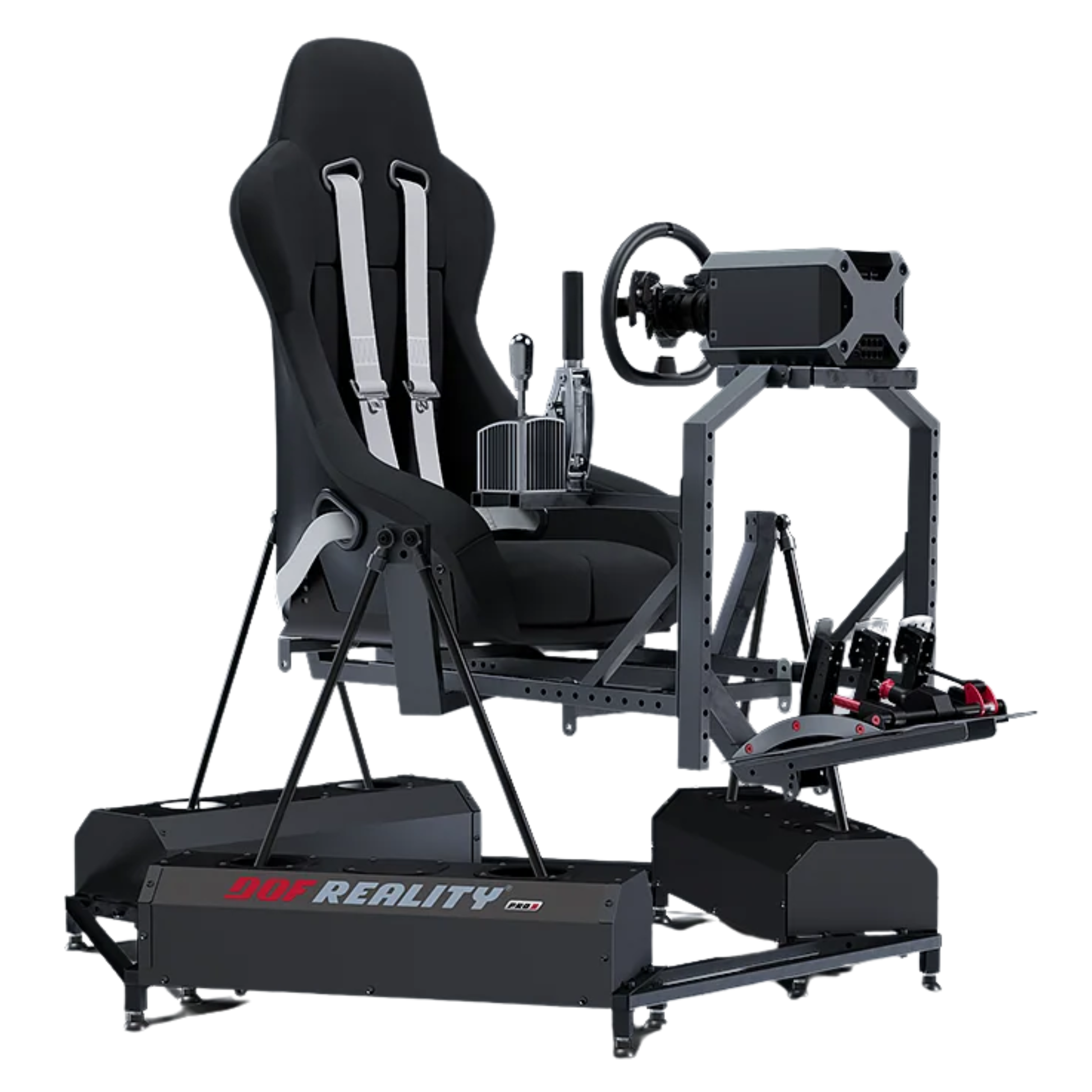

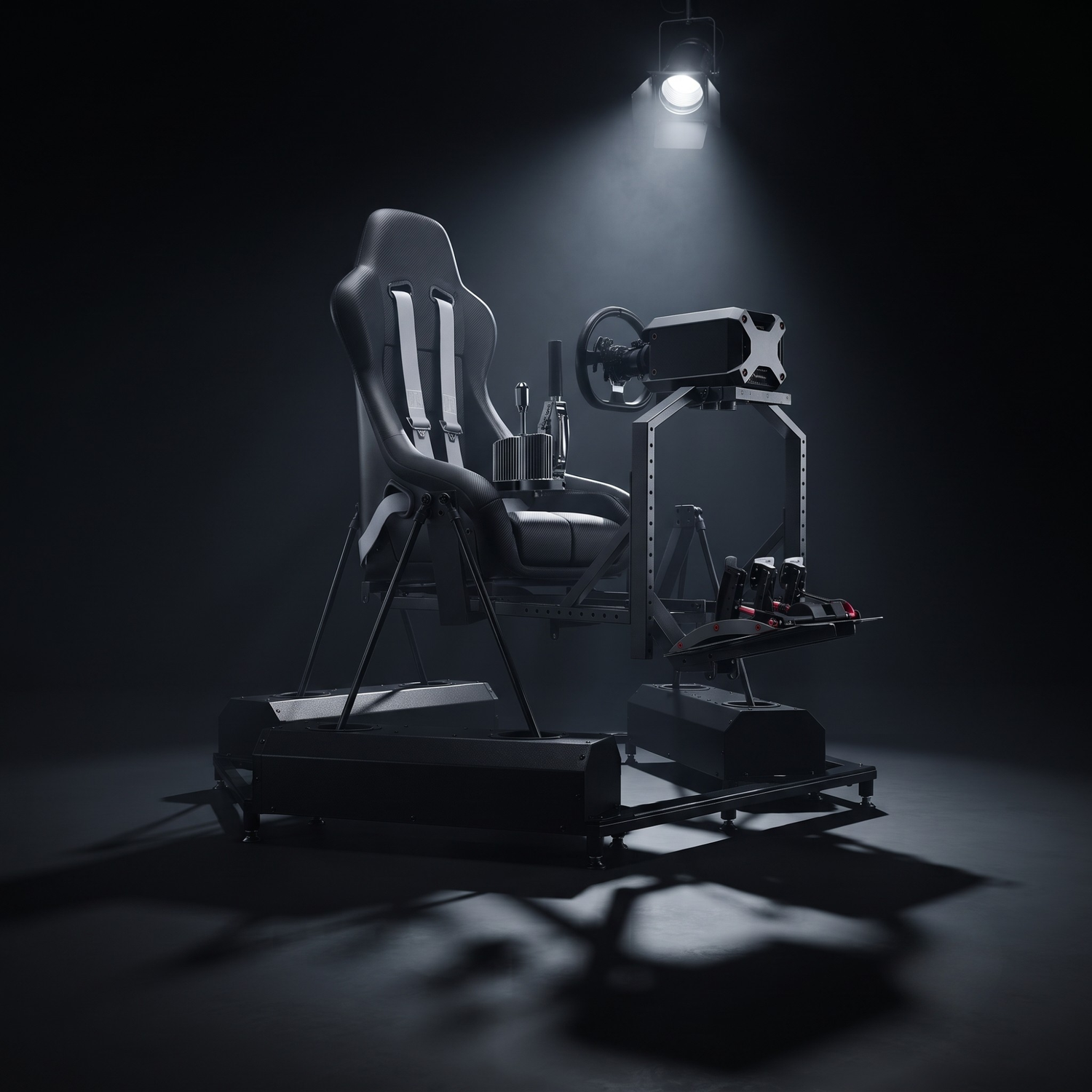

DOF Reality P6 | 6DOF Motion Platform
DOF Reality P6 | 6DOF Motion Platform
Delivery
Support
Warranty
Couldn't load pickup availability

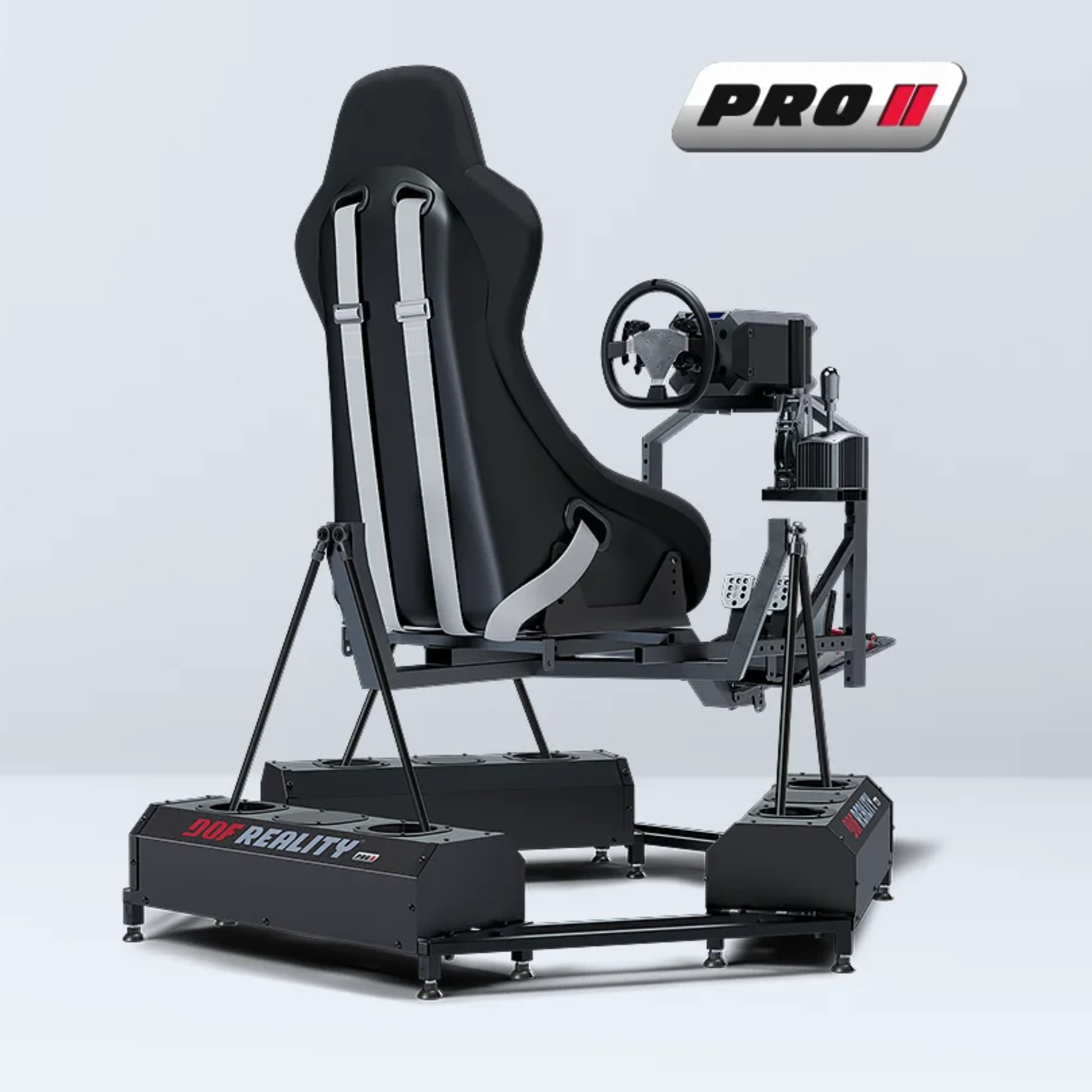

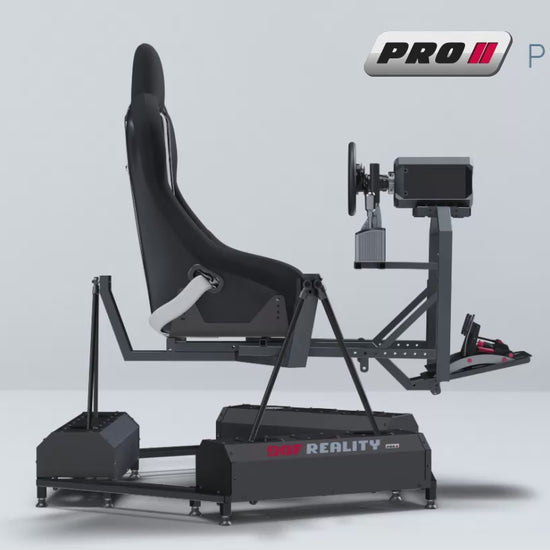

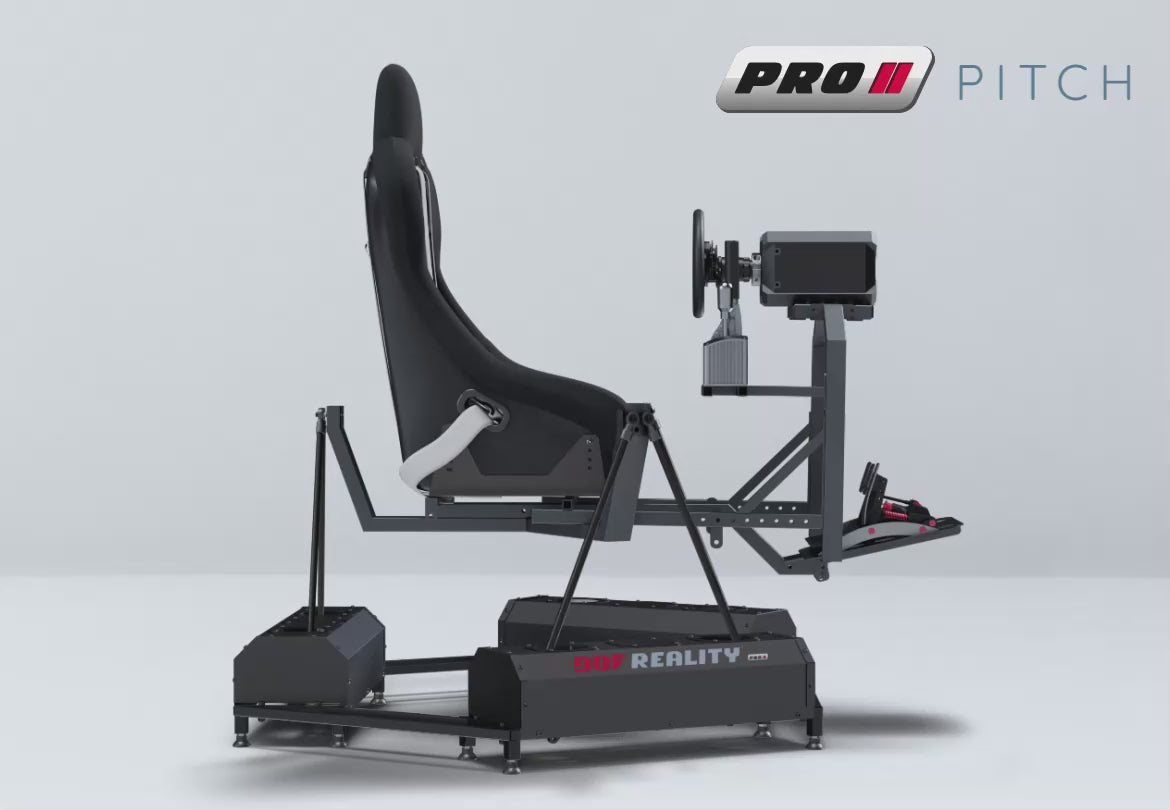

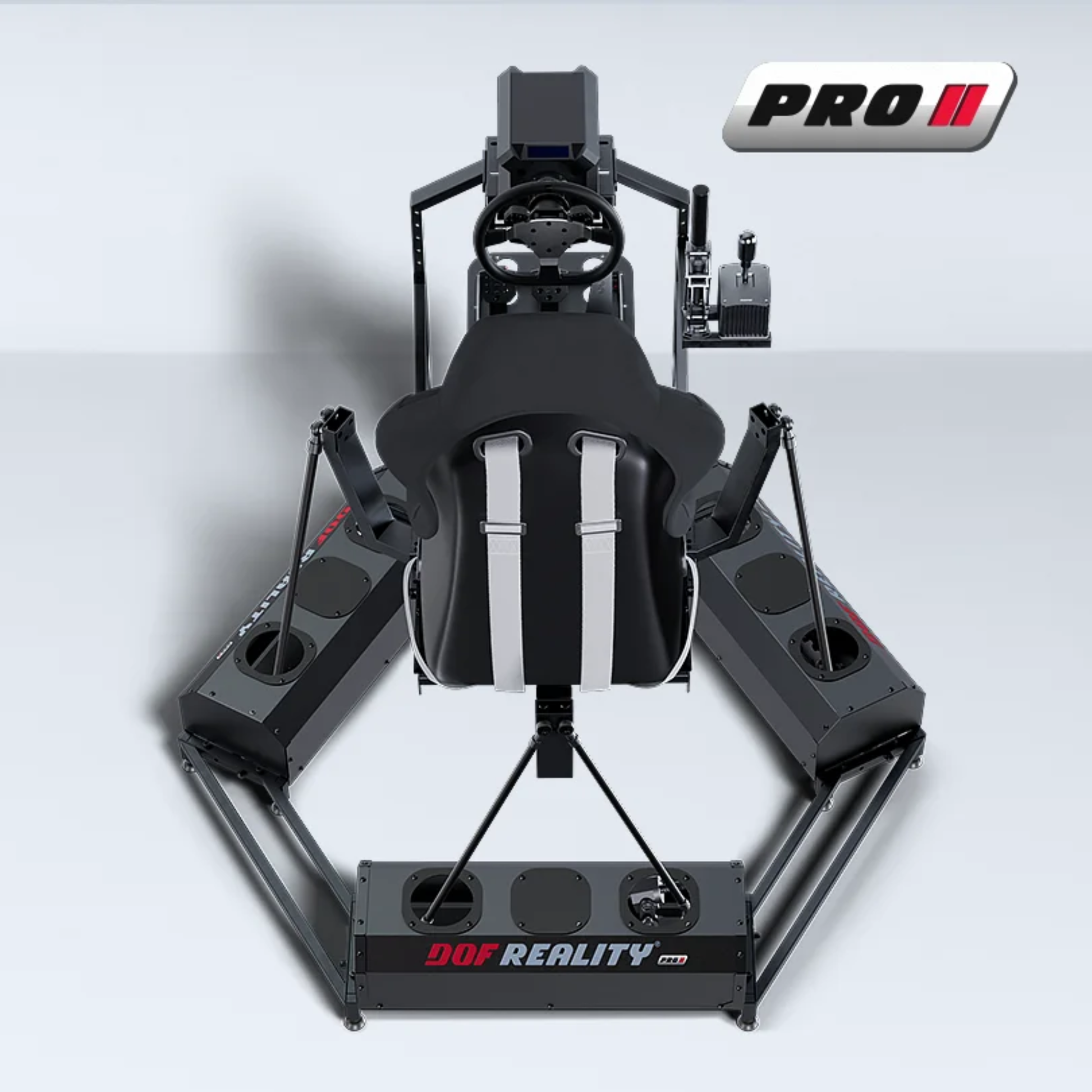

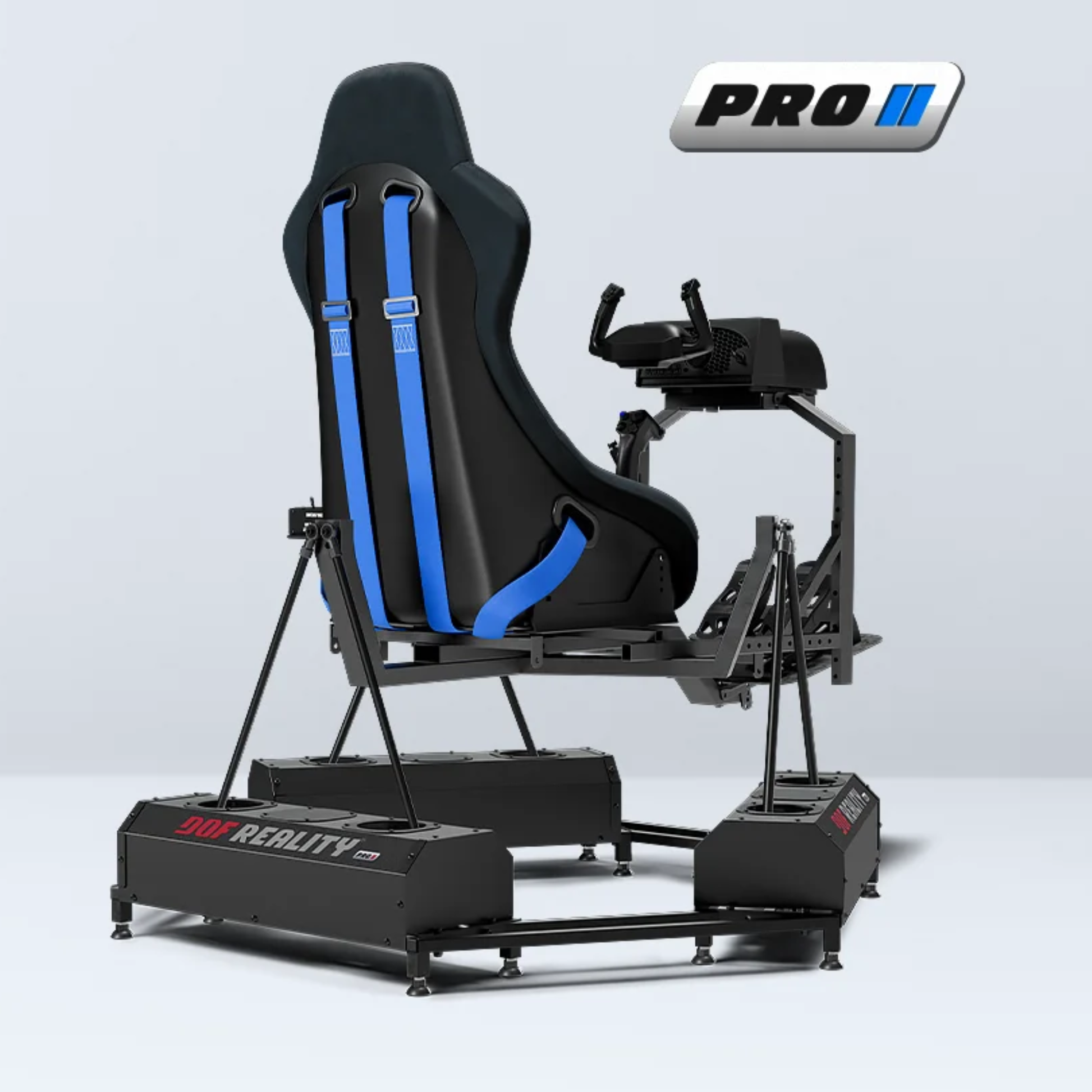

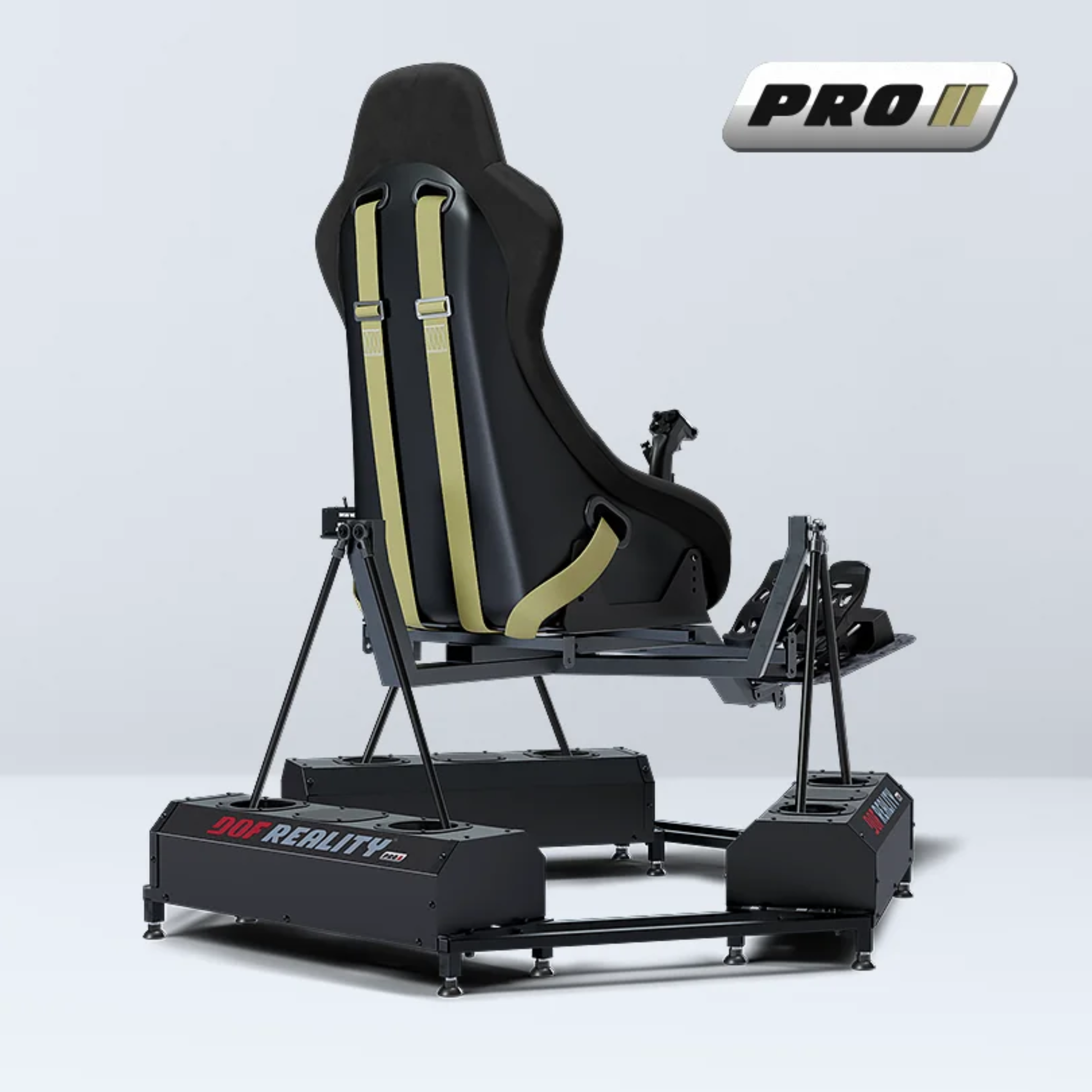

Six axes of professional grade motion. Pitch, roll, yaw, surge, sway, and heave working together to replicate forces in every direction. The DOF Reality P6 is the top of the range, built for commercial environments, professional training, and home users who want the most complete motion experience DOF Reality makes.
Every force has its own axis. Braking pushes you forward (surge). Cornering pushes you sideways (sway). Track surface comes up through the seat (heave). The rear kicks out under oversteer (yaw). And pitch and roll handle the rest. Professional grade motors at 75 cm/s with 28 Nm torque and 200kg capacity mean the P6 responds faster and harder than the H6, with SFU smooth gearing across all six axes as standard.
Sim racing, flight sim, helicopter sim, truck sim, roller coaster experiences. The P6 handles every use case without configuration changes. Built for daily commercial use or intensive home sessions where anything less than full motion leaves something on the table.
Not included: Seat, steering wheel, pedals, monitors, and PC are sourced separately.
Optional Add-Ons InformationTap to view
| DOF Reality Seat | Sim racing bucket seat with sliders. Mounts directly to the platform frame. |
| 4-Point Harness | Racing harness for the DOF Reality Seat. Keeps you secure during platform motion. |
| Console Link MagicBox | Runs the platform without a PC. Compatible with GT7, F1 series, Project Cars 2 and Forza. |

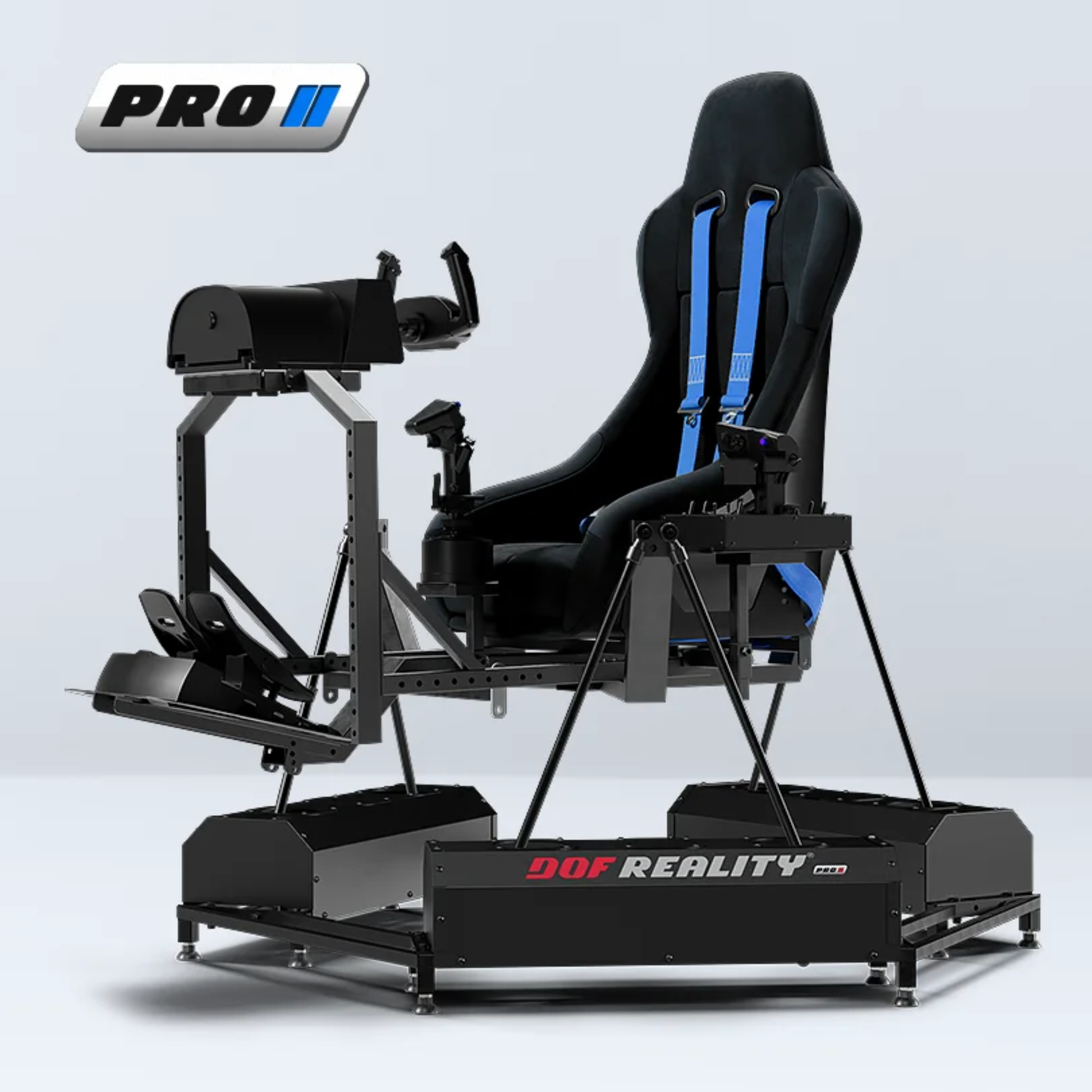

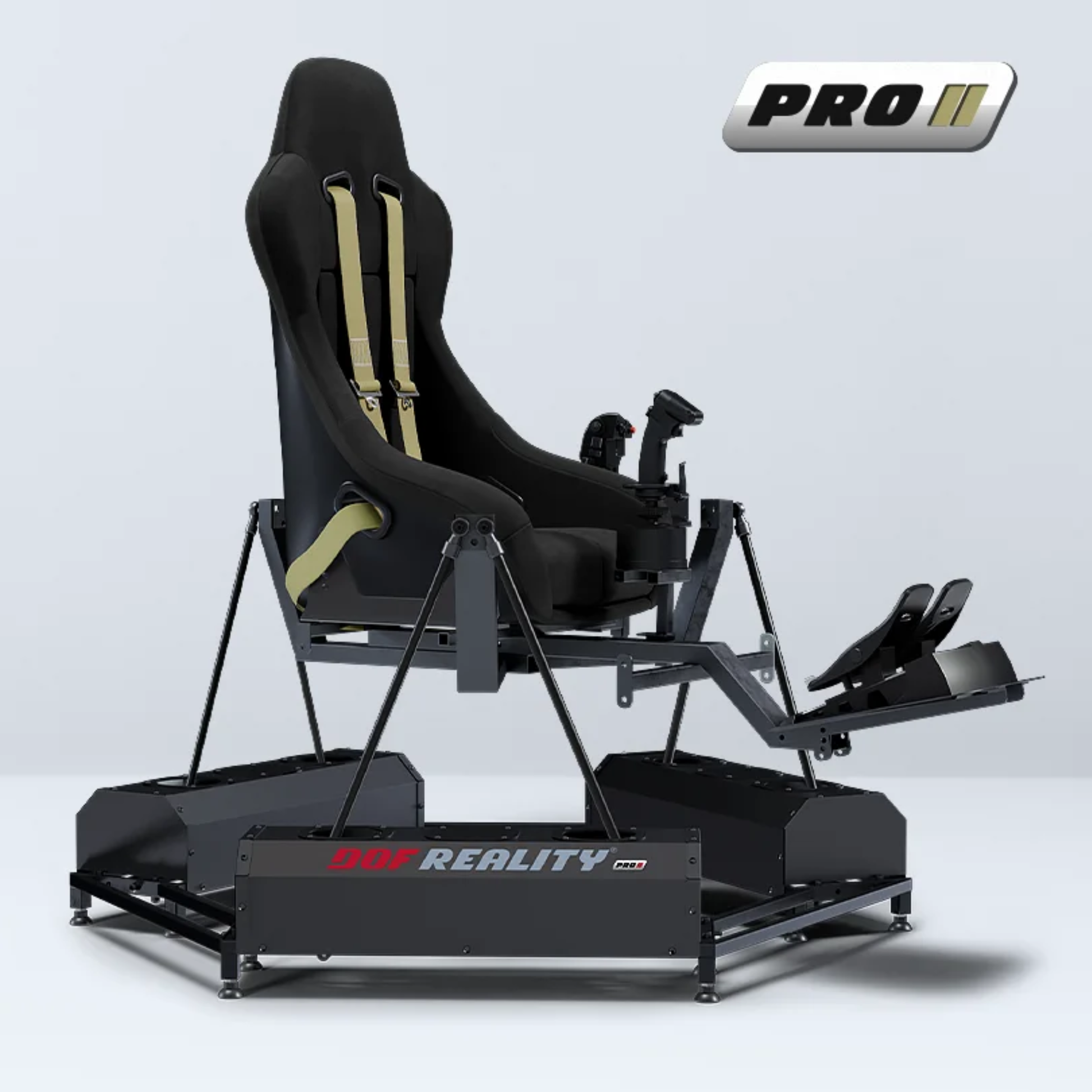

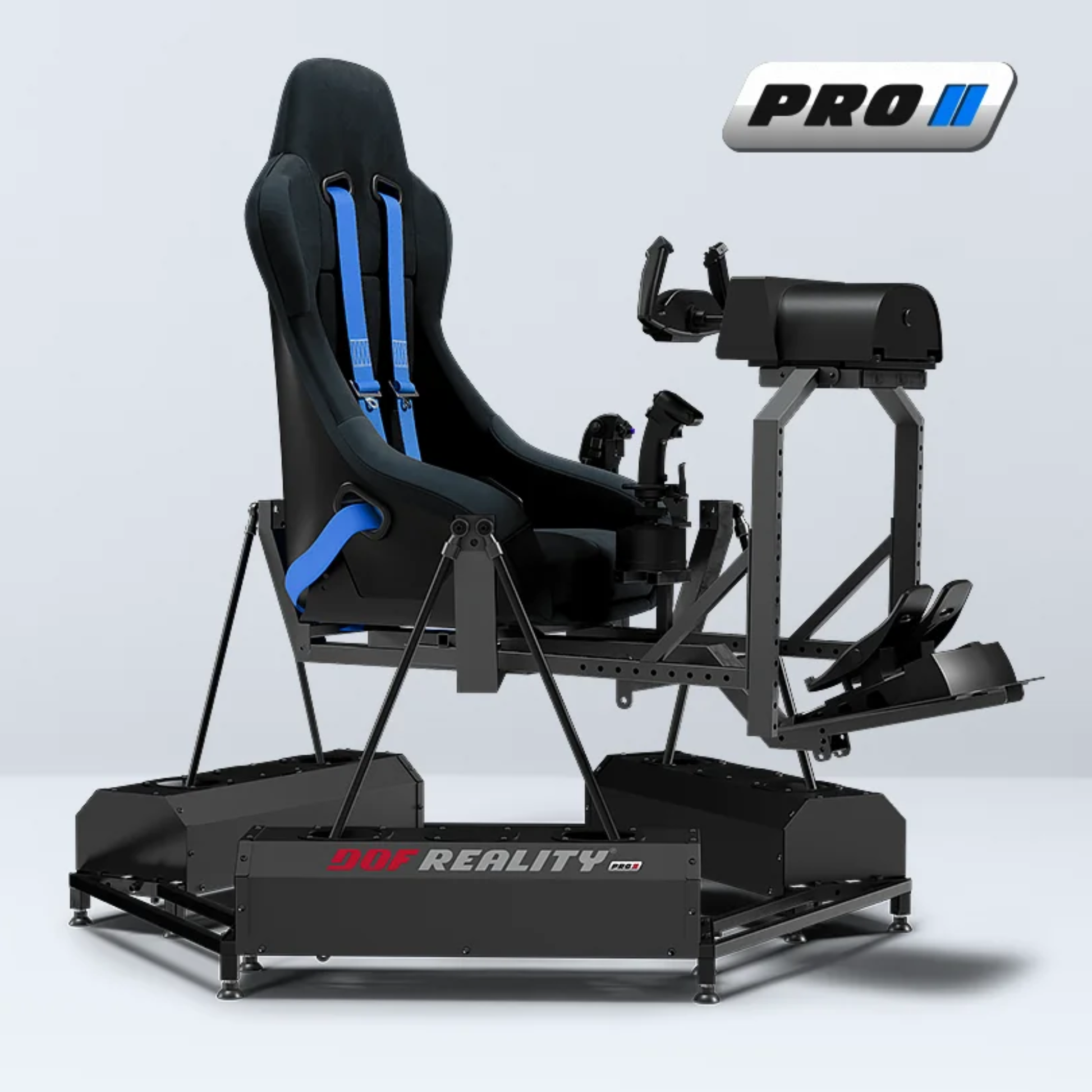

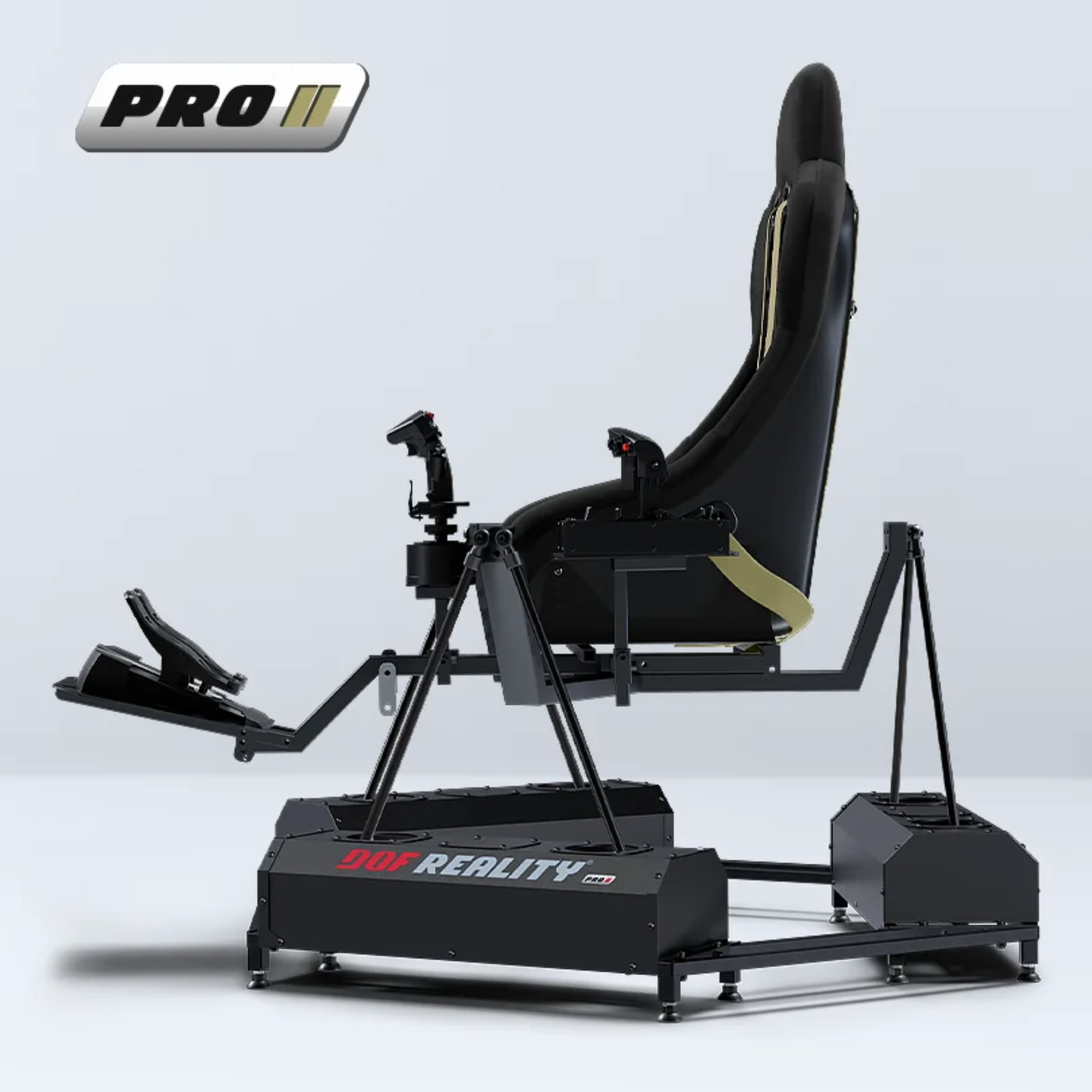

| HOTAS Mounts Kit | Dedicated brackets for HOTAS throttle and stick. Essential for flight sim setups. |
| Honeycomb Alpha and Bravo Adapter | Mounting plate for Honeycomb Alpha and Bravo flight controls. |
| Monitor Mount | Platform-mounted monitor arm. Screen moves with the rig. |
| ButtKicker Shaker Mount | Bracket for attaching a ButtKicker bass shaker to the platform frame. |
| eBrake / Emergency Stop Button | External cut-off button. Instantly powers down the platform. |
| Pedal Quick Release | Fast-swap system for changing pedal sets without tools. |
| Soft Protection Cover | Full dust and storage cover for the platform. |
| Lift Supports Set | Gas struts that assist the platform returning to neutral. Recommended for heavier setups. |
| Transport Wheels (6DOF) | Roll the platform without disassembly. 6DOF specific fitment. |
| Metal Cyber Cover (4-6DOF) | Protective metal covers for the platform motors. Reduces dust and impact risk. |
| Cable Extension Set (6DOF) | Longer motor cables for builds where the controller sits further from the platform. |
Complete the experience with VR. Pair this platform with a Pimax headset for full immersion. View our Immersion range
| DOF Reality Seat | Sim racing bucket seat with sliders. Mounts directly to the platform frame. |
| 4-Point Harness | Racing harness for the DOF Reality Seat. Keeps you secure during platform motion. |
| Console Link MagicBox | Runs the platform without a PC. Compatible with GT7, F1 series, Project Cars 2 and Forza. |
| HOTAS Mounts Kit | Dedicated brackets for HOTAS throttle and stick. Essential for flight sim setups. |
| Honeycomb Alpha and Bravo Adapter | Mounting plate for Honeycomb Alpha and Bravo flight controls. |
| Monitor Mount | Platform-mounted monitor arm. Screen moves with the rig. |
| ButtKicker Shaker Mount | Bracket for attaching a ButtKicker bass shaker to the platform frame. |
| eBrake / Emergency Stop Button | External cut-off button. Instantly powers down the platform. |
| Pedal Quick Release | Fast-swap system for changing pedal sets without tools. |
| Soft Protection Cover | Full dust and storage cover for the platform. |
| Lift Supports Set | Gas struts that assist the platform returning to neutral. Recommended for heavier setups. |
| Transport Wheels (6DOF) | Roll the platform without disassembly. 6DOF specific fitment. |
| Metal Cyber Cover (4-6DOF) | Protective metal covers for the platform motors. Reduces dust and impact risk. |
| Cable Extension Set (6DOF) | Longer motor cables for builds where the controller sits further from the platform. |
| Type | 6DOF full motion platform (professional grade) |
| Axes | Pitch, roll, yaw, surge, sway, and heave |
| Range of Motion | 17 degrees |
| Speed | 75 cm/s (105 degrees/s) |
| Torque | 28 Nm |
| Acceleration | 0.5G all directions |
| Gearing | SFU smooth gearing (standard, all axes) |
| Power | 1500W peak, 100-240VAC 50/60Hz |
| Max Pilot Weight | 200kg / 440lbs |
| Shipping Weight | Box 1: 60kg (80x70x30cm), Box 2: 65kg (80x70x30cm) |
| Footprint | 120 x 150cm, 60cm height |
| Material | Commercial grade metal profiles |
| Software | SimRacingStudio (included) |
| Use Cases | Sim racing, flight simulation, helicopter simulation, commercial entertainment |
| Upgradable To | Final configuration (top of range) |
| Warranty | 1 year manufacturer warranty |
| Not Included | Seat, steering wheel, pedals, monitor, PC |
Already own a rig?
Add motion without replacing your cockpit
If you already own an 8020 aluminium cockpit, you do not need to replace it to get motion. SIMRIG actuator systems bolt directly to your existing frame and add 3DOF motion underneath your current setup.
Also available: ProSimu P3MP and P5MP mount underneath most cockpit frames with ultra-quiet operation.
Quiet operation matters?
Explore ultra-quiet alternatives for home use
If noise is a concern in your setup environment, our ProSimu range uses direct-drive actuators that never contact the floor during motion. No vibration through floorboards, no mechanical noise travelling through walls. Designed for home use where quiet operation matters.
Recommended: Motion Seat · T1000 3M · T1000 5M
Every force. Every direction. Every time.
Six axes means nothing is approximated. Braking does not tilt you forward to simulate deceleration. It pushes you forward. Cornering does not roll you sideways to suggest lateral force. It pushes you sideways. Surge and sway deliver longitudinal and lateral forces directly rather than borrowing from pitch and roll to create the illusion. The P6 reproduces forces in the direction they actually occur.
Professional grade actuators across all six axes at 75 cm/s with 28 Nm torque and 200kg capacity. SFU smooth gearing standard on every motor. The top of the DOF Reality range, built for the rider who has experienced 2DOF or 3DOF and knows exactly what the missing axes feel like. Trail braking into a corner delivers pitch, roll, yaw, and surge simultaneously. Each force on its own axis. No compromises.
Built for centres that run all day
200kg pilot weight capacity and professional grade motors designed for sustained daily use. The P6 handles back-to-back sessions in sim racing centres, flight training facilities, and commercial entertainment venues without thermal throttling or actuator fatigue. Where consumer platforms are designed for occasional home use, the P-series is engineered for the demands of a business that runs eight hours a day, seven days a week.
Compatible with SimRacingStudio for consumer sim titles and configurable for custom telemetry feeds in professional training environments. Whether you are running a public sim racing experience centre or a private flight training programme, the P6 delivers repeatable, consistent motion from the first session of the day to the last.
How It Compares
DOF Reality P6 Pro
£8,405.00
|

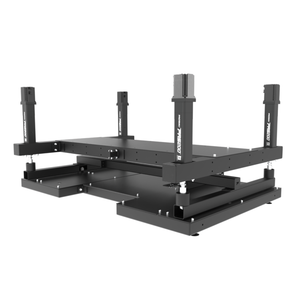

ProSimu P5MP
£9,145.00
|
ProSimu T1000 7M
£22,145.00
|
|
|---|---|---|---|
| DOF | 6 | 4+TL | 6+TL |
| Actuators | 6 | 5 | 7 |
| Actuator Speed | 75 cm/s | 280 mm/s | 280 mm/s |
| Max Load | 200 kg | 200 kg | 200 kg |
| Traction Loss | |||
| Heave | |||
| Surge and Sway | Surge only | ||
| Noise Level | Low | Ultra-quiet | Ultra-quiet |
| Cockpit Included |
