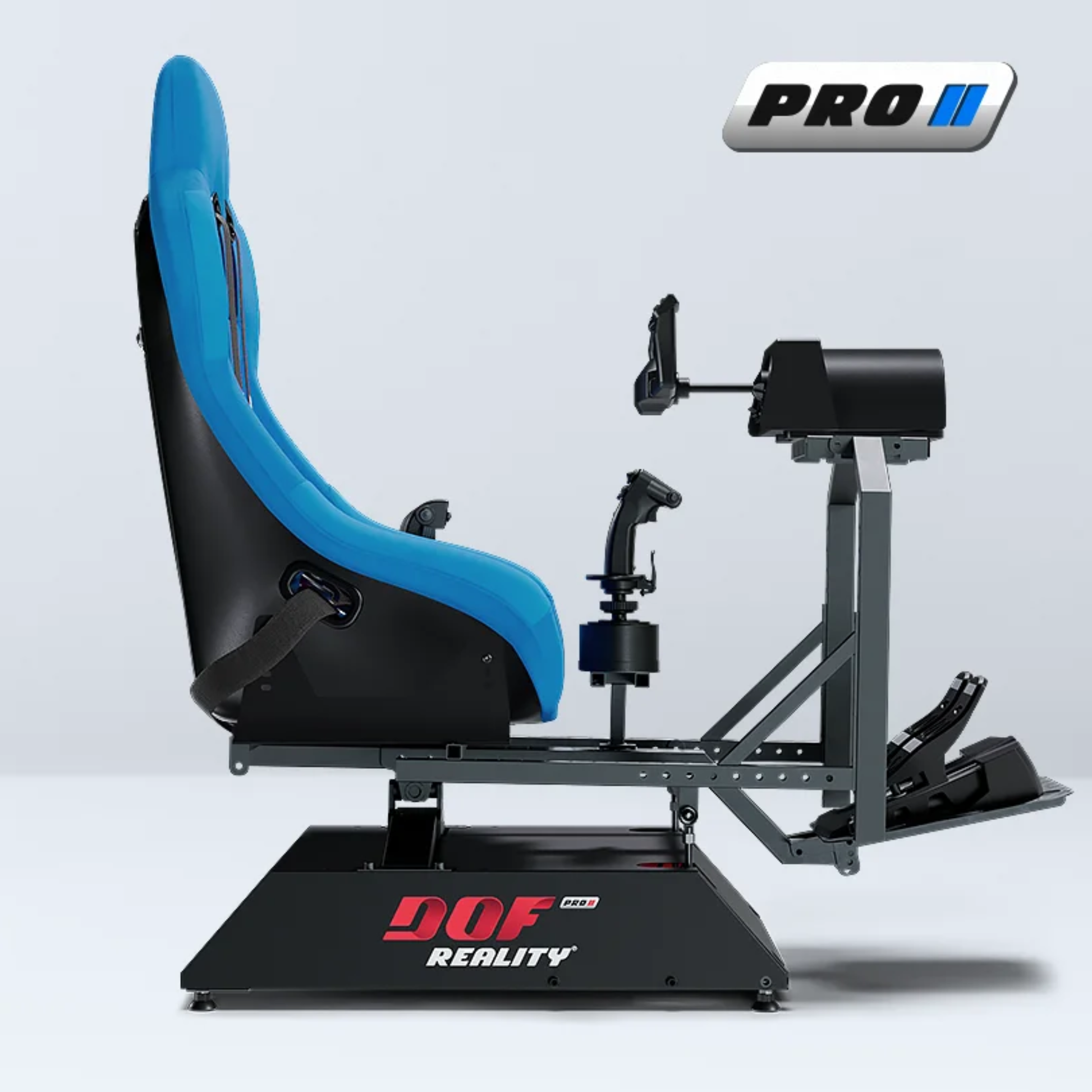

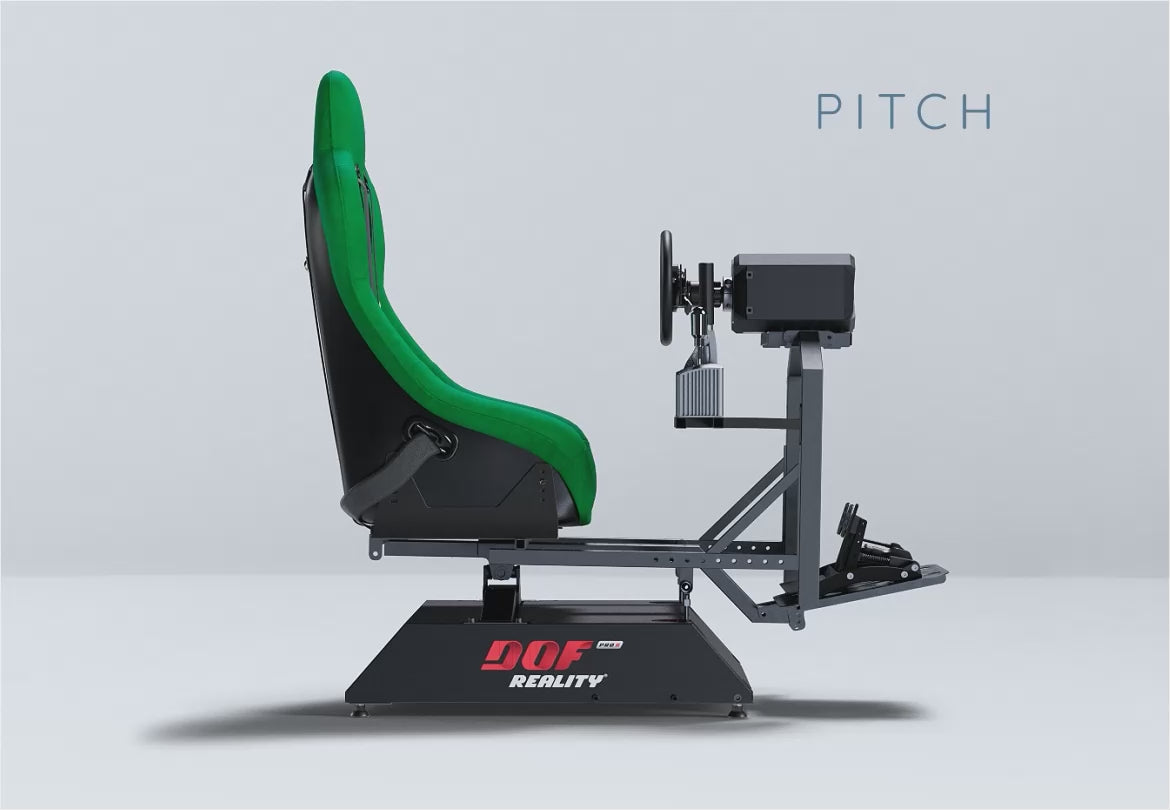

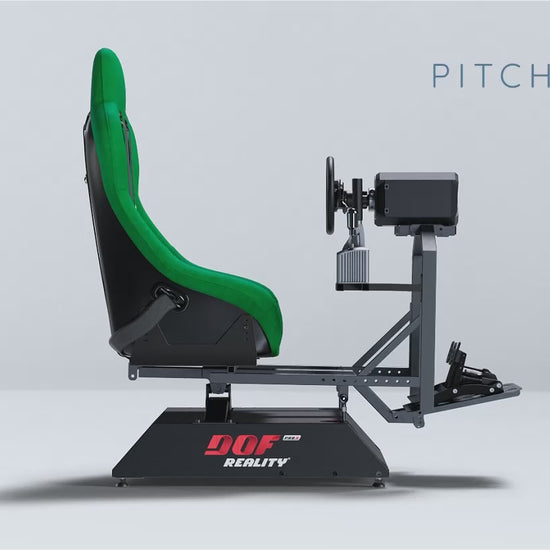

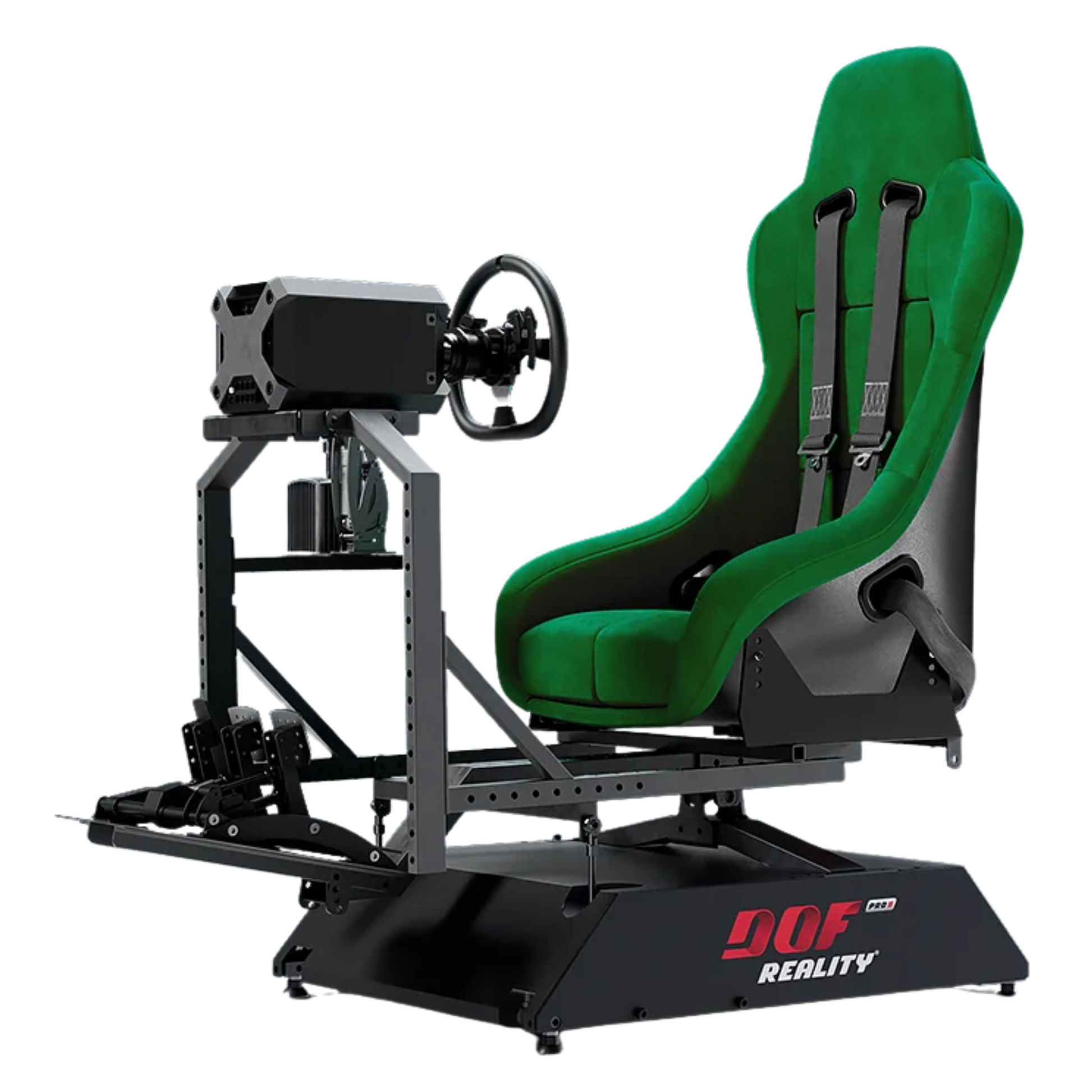

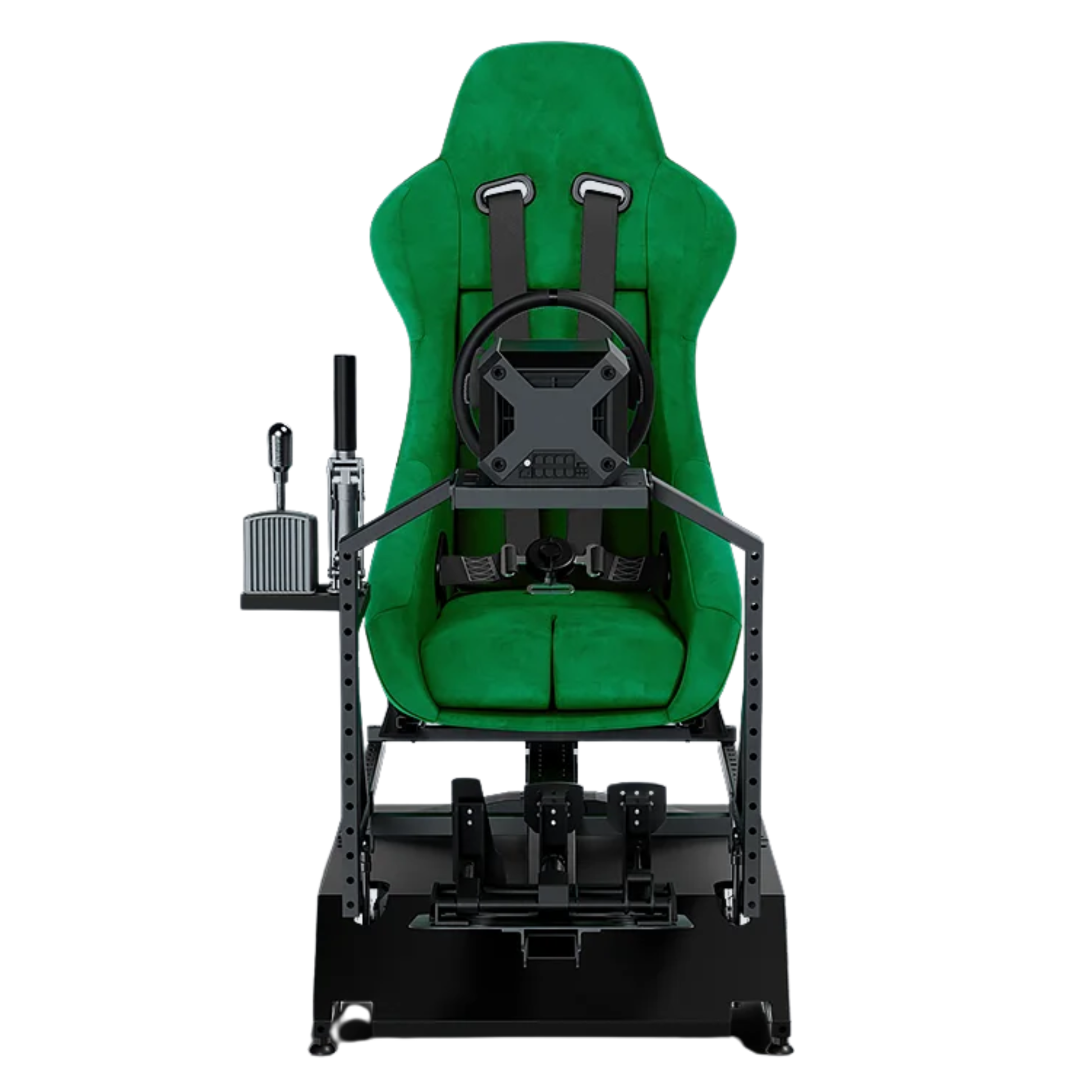

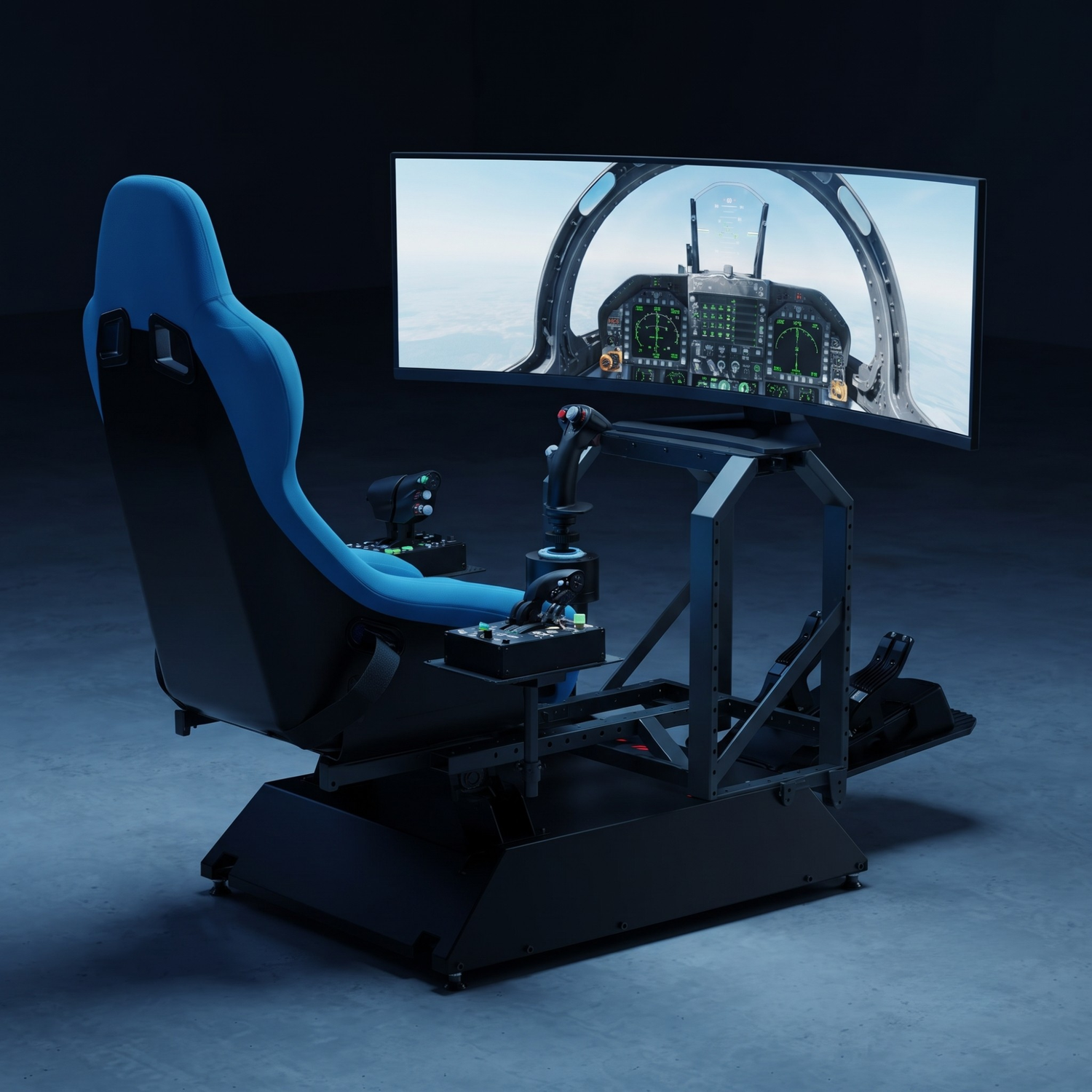

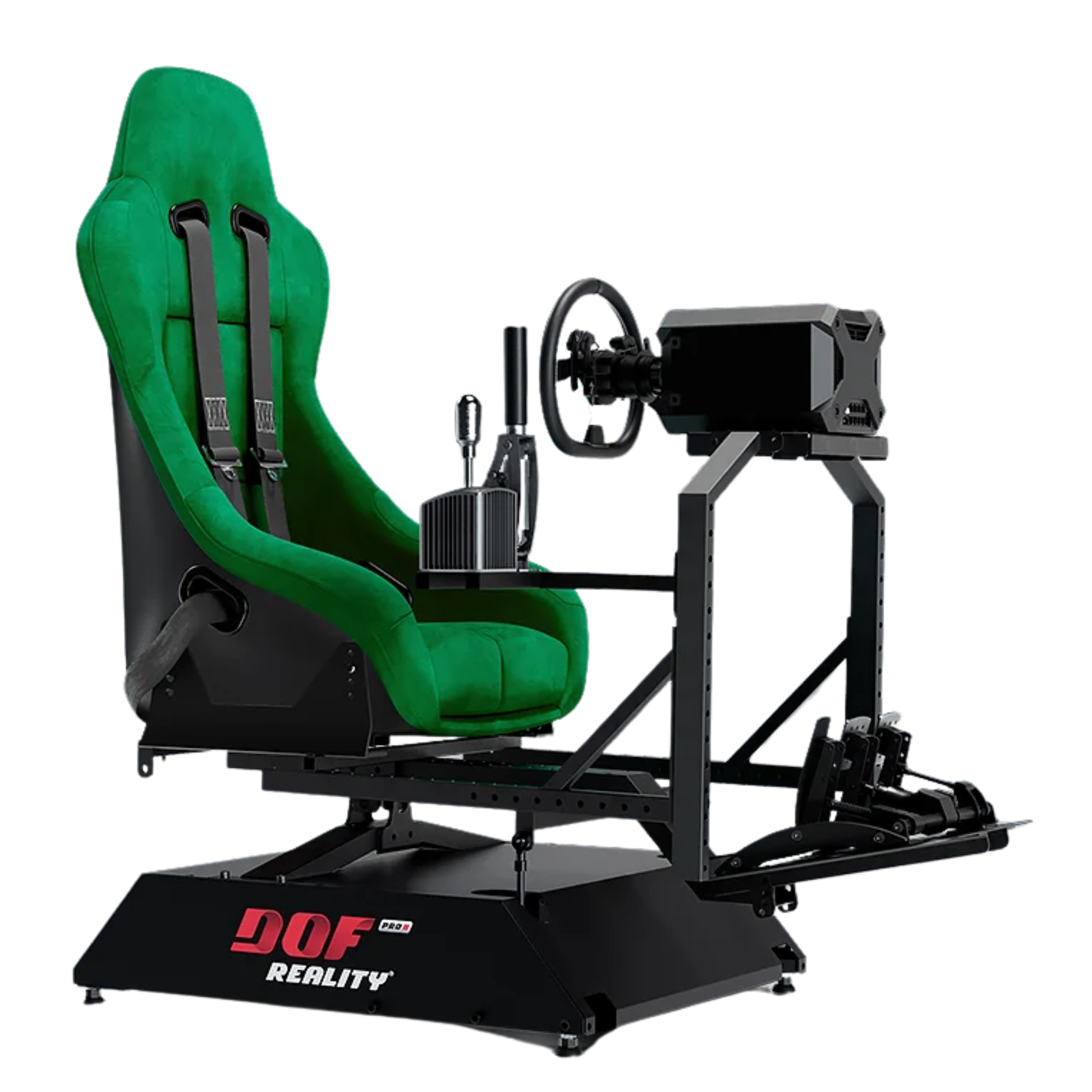

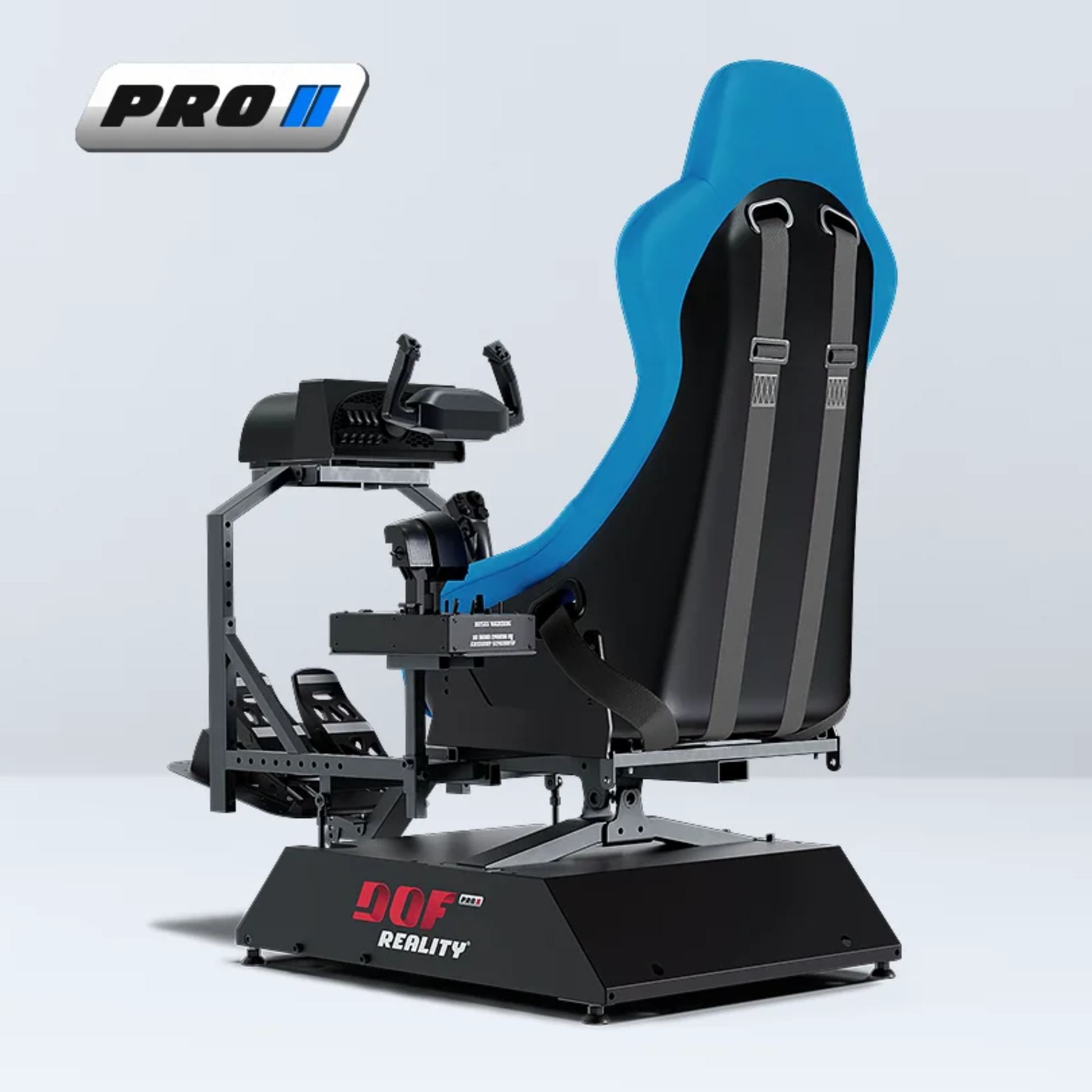

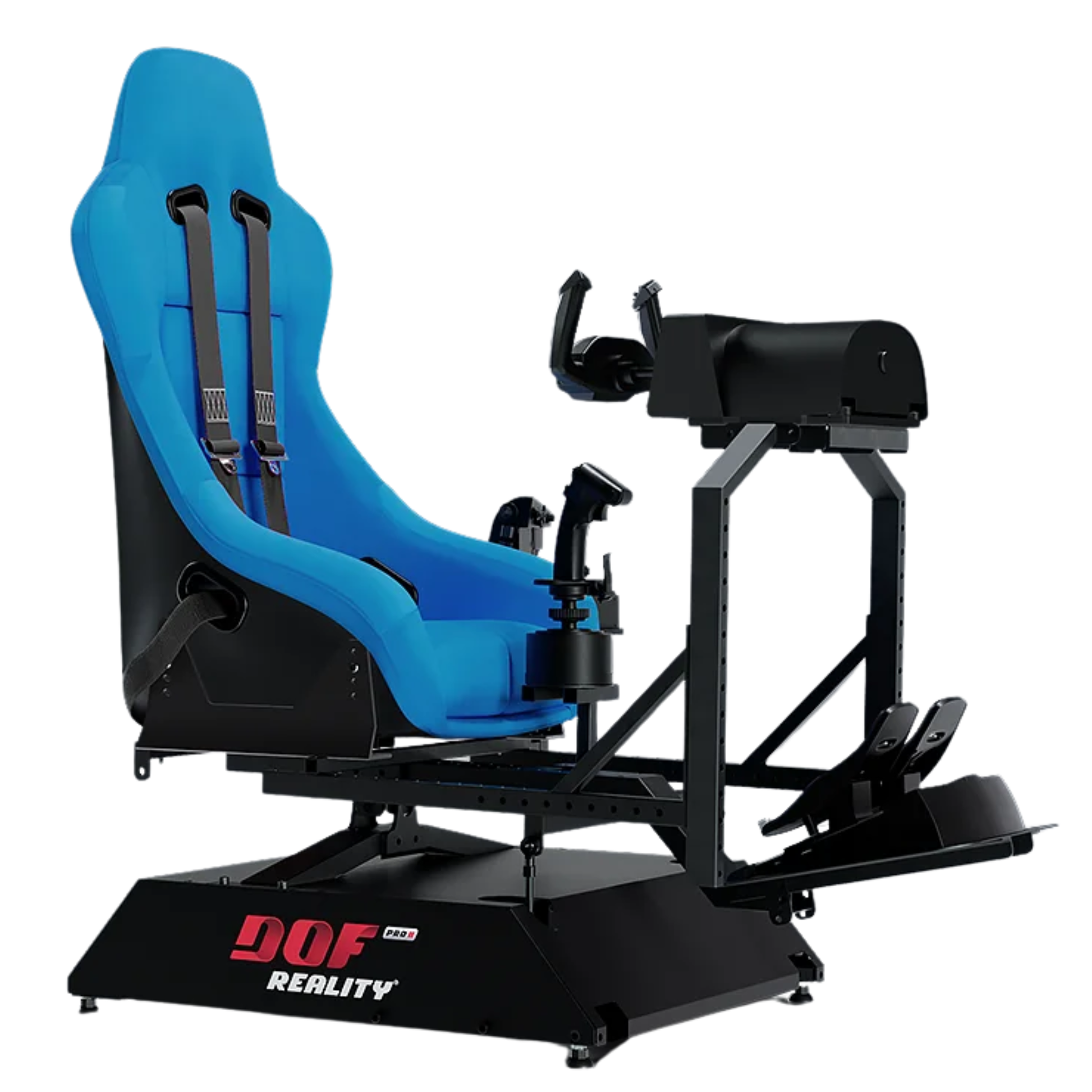

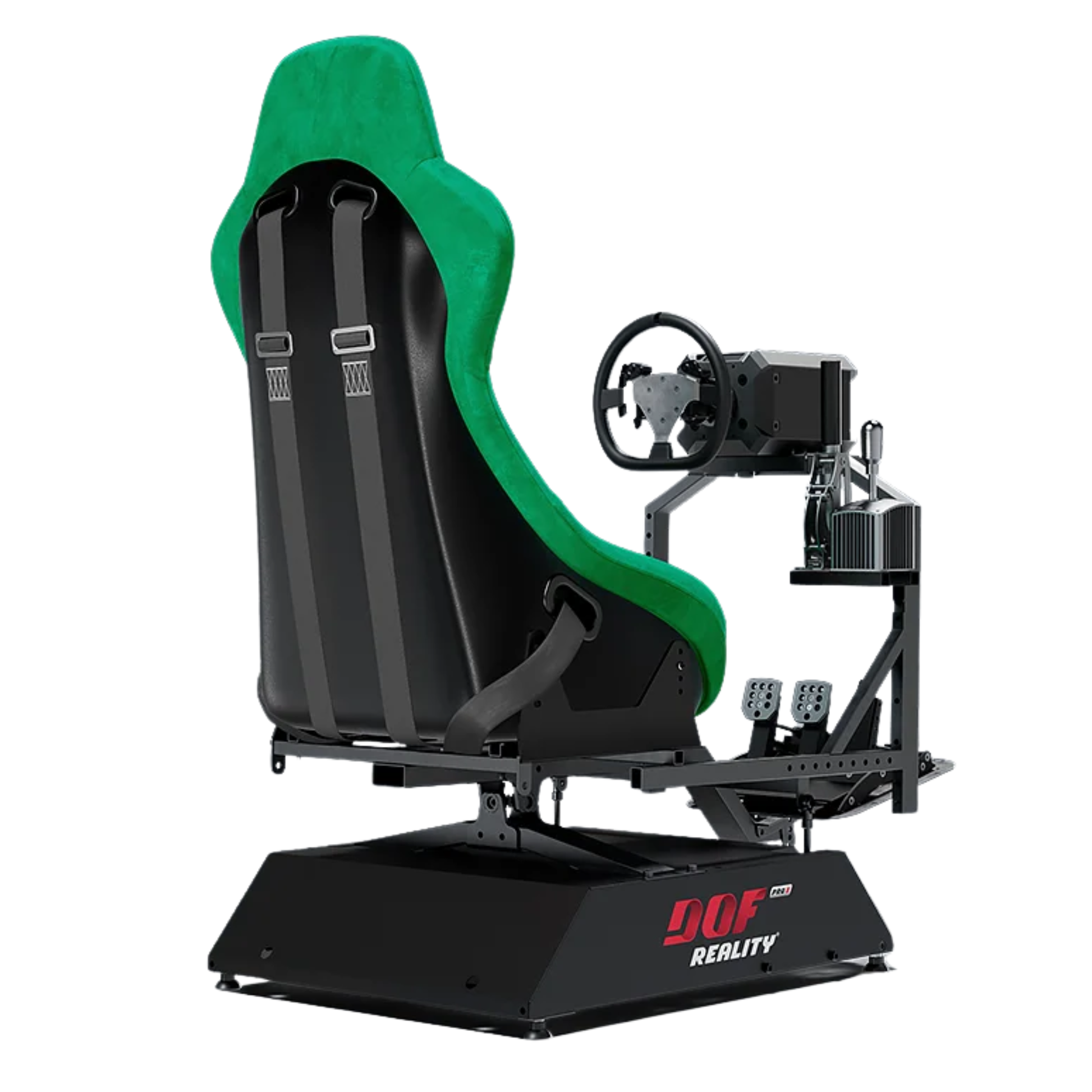

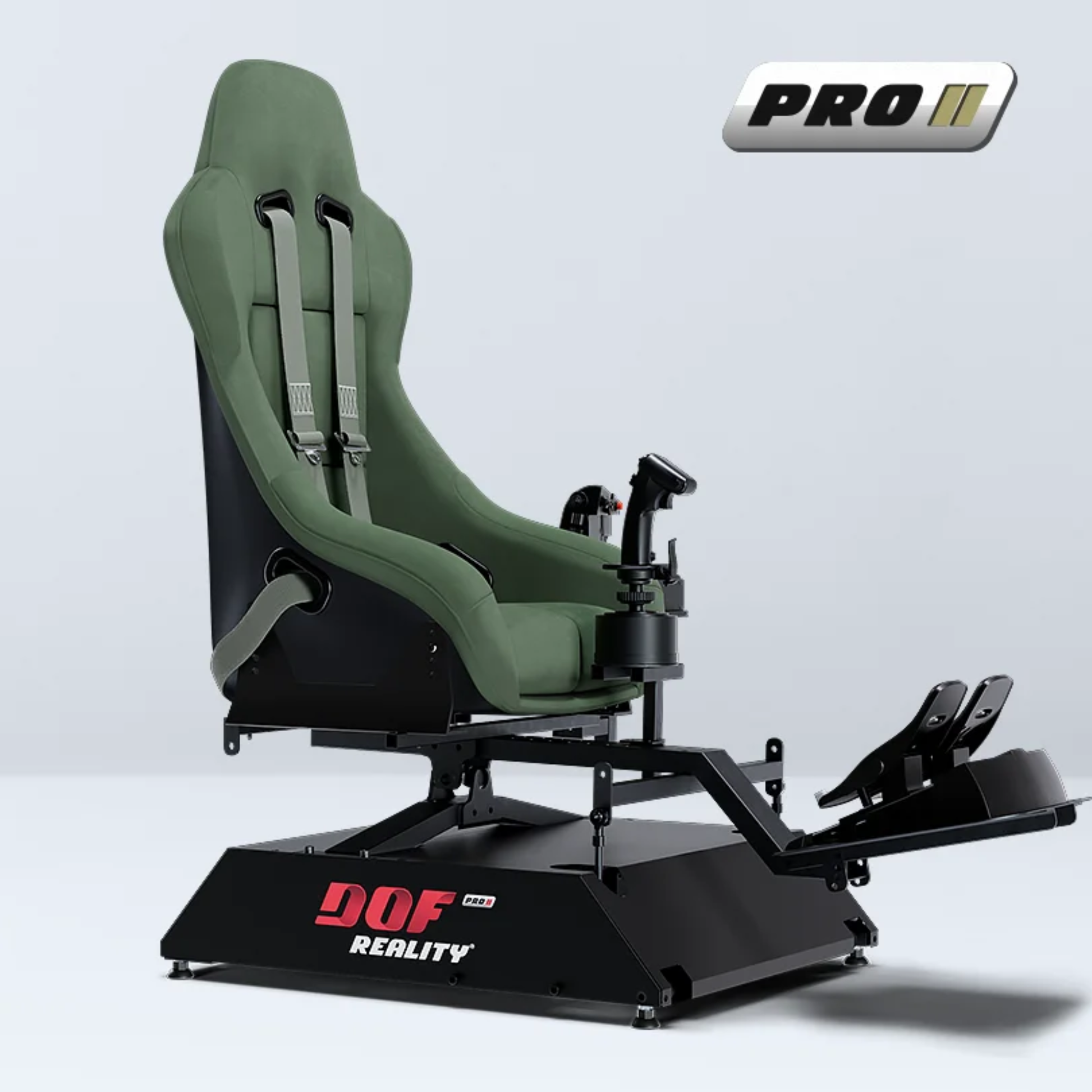

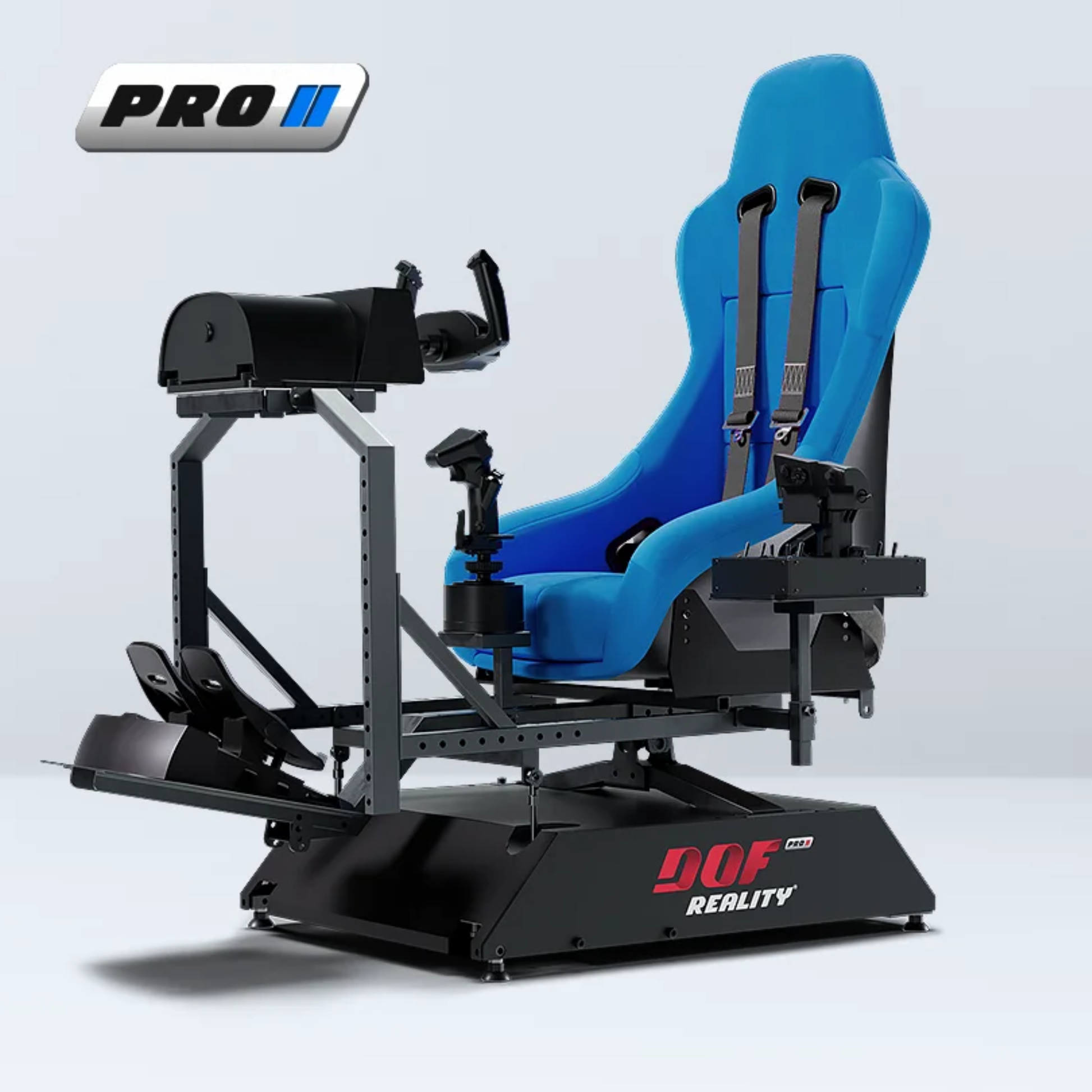

Faster motors, higher torque, and a 200kg weight capacity. The DOF Reality P2 is the professional grade version of the H2, built for heavier riders, commercial environments, and anyone who wants sharper, more responsive 2DOF motion. Pitch and roll on two axes with the entire cockpit moving together, so your wheel, pedals, seat, and monitors all react as one unit.
Where the H2 runs at 50 cm/s with 25 Nm torque, the P2 pushes 75 cm/s with 28 Nm. That translates to faster response under hard braking, sharper weight transfer into corners, and quicker recovery between direction changes. For sim racing, you feel the difference in fast chicanes and trail braking zones. For flight sim, the extra speed and torque means crisper roll response and more convincing pitch authority.
SFU smooth gearing comes standard. No need to choose between a racing and flight version. One platform handles both with the refined low speed motion that flight simmers need and the snap that racers want. Compatible with all major sim titles via SimRacingStudio.
Not included: Seat, steering wheel, pedals, monitors, and PC are sourced separately. Contact us for compatibility advice.
Optional Add-Ons InformationTap to view
| DOF Reality Seat | Sim racing bucket seat with sliders. Mounts directly to the platform frame. |
| 4-Point Harness | Racing harness for the DOF Reality Seat. Keeps you secure during platform motion. |
| Console Link MagicBox | Runs the platform without a PC. Compatible with GT7, F1 series, Project Cars 2 and Forza. |

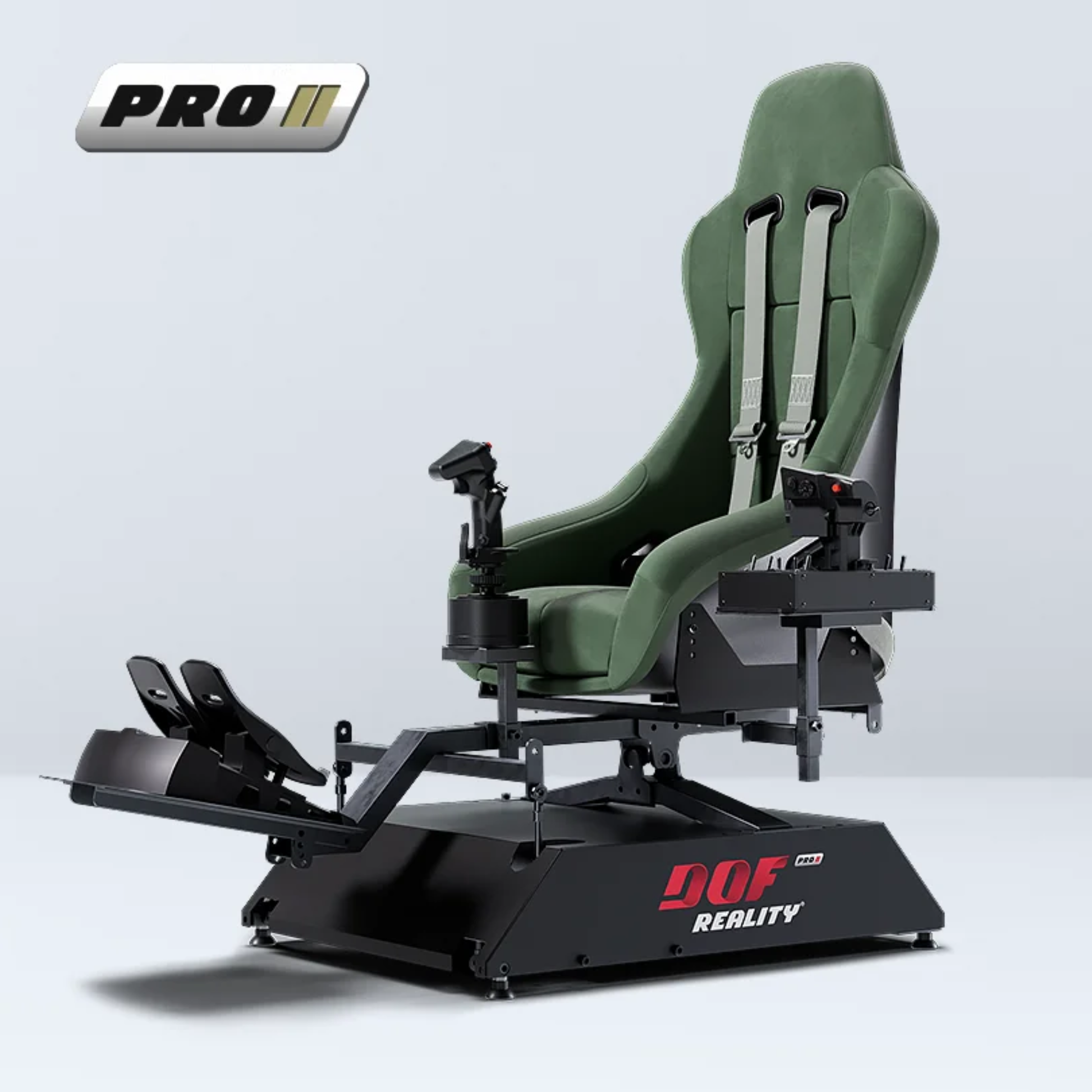

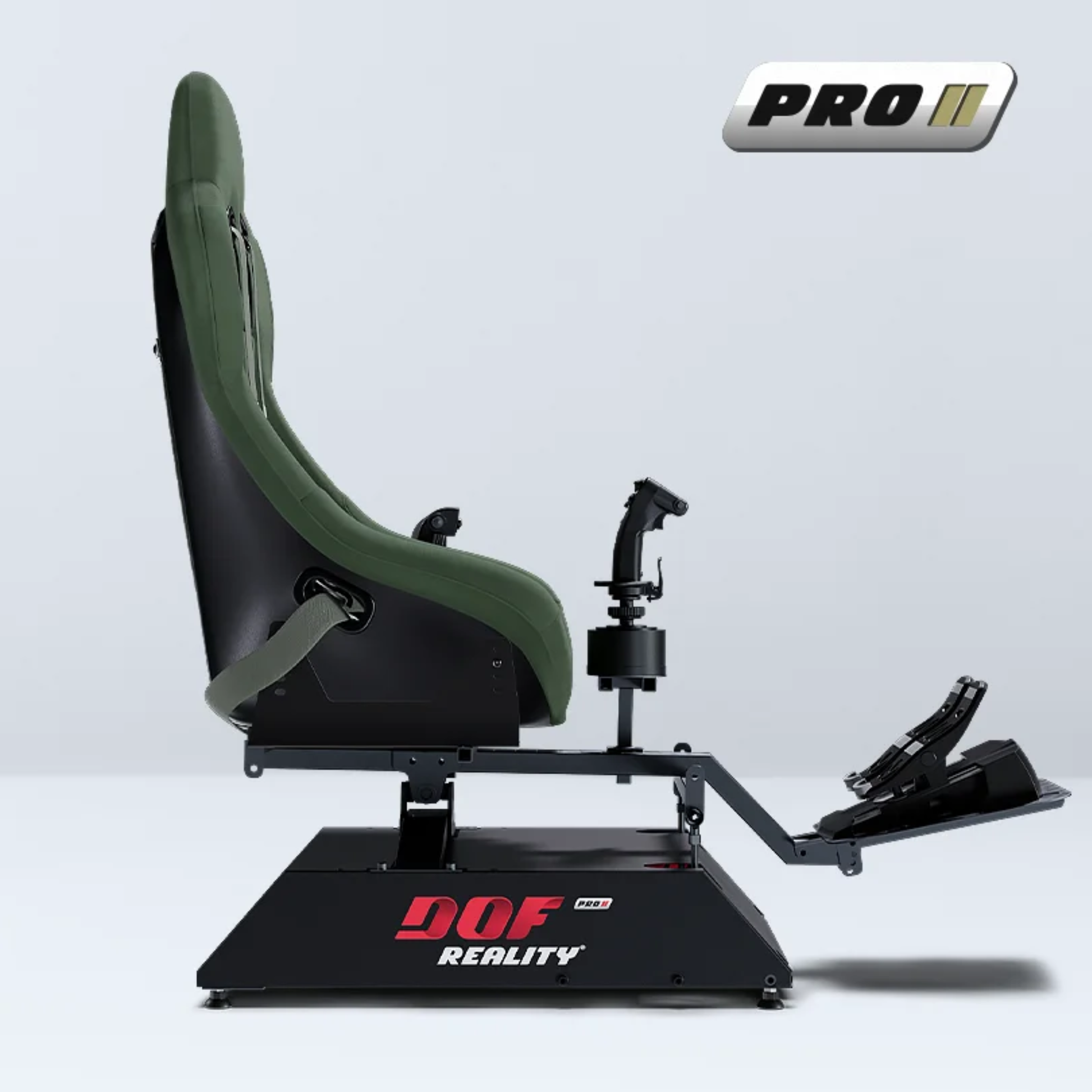

| HOTAS Mounts Kit | Dedicated brackets for HOTAS throttle and stick. Essential for flight sim setups. |
| Honeycomb Alpha and Bravo Adapter | Mounting plate for Honeycomb Alpha and Bravo flight controls. |

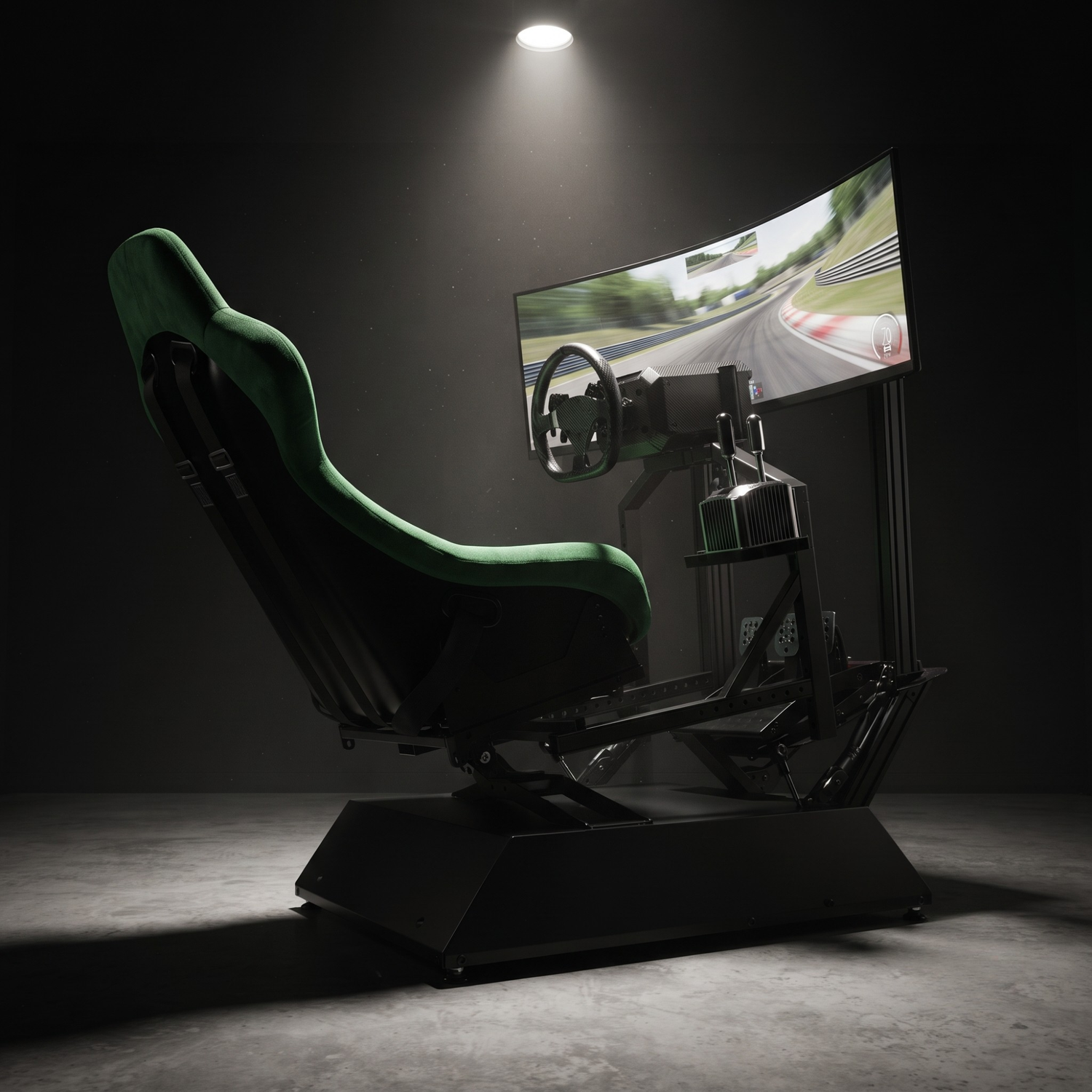

| Monitor Mount | Platform-mounted monitor arm. Screen moves with the rig. |
| ButtKicker Shaker Mount | Bracket for attaching a ButtKicker bass shaker to the platform frame. |
| eBrake / Emergency Stop Button | External cut-off button. Instantly powers down the platform. |
| Pedal Quick Release | Fast-swap system for changing pedal sets without tools. |
| Soft Protection Cover | Full dust and storage cover for the platform. |
| Transport Wheels (2DOF) | Roll the platform without disassembly. 2DOF specific fitment. |
| Metal Cyber Cover (2-3DOF) | Protective metal covers for the platform motors. Reduces dust and impact risk. |
| Cable Extension Set (2DOF) | Longer motor cables for builds where the controller sits further from the platform. |
Complete the experience with VR. Pair this platform with a Pimax headset for full immersion. View our Immersion range
| DOF Reality Seat | Sim racing bucket seat with sliders. Mounts directly to the platform frame. |
| 4-Point Harness | Racing harness for the DOF Reality Seat. Keeps you secure during platform motion. |
| Console Link MagicBox | Runs the platform without a PC. Compatible with GT7, F1 series, Project Cars 2 and Forza. |
| HOTAS Mounts Kit | Dedicated brackets for HOTAS throttle and stick. Essential for flight sim setups. |
| Honeycomb Alpha and Bravo Adapter | Mounting plate for Honeycomb Alpha and Bravo flight controls. |
| Monitor Mount | Platform-mounted monitor arm. Screen moves with the rig. |
| ButtKicker Shaker Mount | Bracket for attaching a ButtKicker bass shaker to the platform frame. |
| eBrake / Emergency Stop Button | External cut-off button. Instantly powers down the platform. |
| Pedal Quick Release | Fast-swap system for changing pedal sets without tools. |
| Soft Protection Cover | Full dust and storage cover for the platform. |
| Transport Wheels (2DOF) | Roll the platform without disassembly. 2DOF specific fitment. |
| Metal Cyber Cover (2-3DOF) | Protective metal covers for the platform motors. Reduces dust and impact risk. |
| Cable Extension Set (2DOF) | Longer motor cables for builds where the controller sits further from the platform. |
| Type | 2DOF full motion platform (professional grade) |
| Axes | Pitch and roll |
| Range of Motion | 20 degrees |
| Speed | 75 cm/s (105 degrees/s) |
| Torque | 28 Nm |
| Acceleration | 0.75G transverse / 0.5G longitudinal |
| Gearing | SFU smooth gearing (standard) |
| Power | 500W peak, 100-240VAC 50/60Hz |
| Max Pilot Weight | 200kg / 440lbs |
| Shipping Weight | Box 1: 29kg (94x38x28cm), Box 2: 29kg (80x60x25cm) |
| Footprint | 59 x 150cm, 60cm height |
| Material | Commercial grade metal profiles |
| Software | SimRacingStudio (included) |
| Use Cases | Sim racing, flight simulation, helicopter simulation |
| Upgradable To | P3 or P6 |
| Warranty | 1 year manufacturer warranty |
| Not Included | Seat, steering wheel, pedals, monitor, PC |
Already own a rig?
Add motion without replacing your cockpit
If you already own an 8020 aluminium cockpit, you do not need to replace it to get motion. SIMRIG actuator systems bolt directly to your existing frame and add 3DOF motion underneath your current setup.
Also available: ProSimu P3MP and P5MP mount underneath most cockpit frames with ultra-quiet operation.
Quiet operation matters?
Explore ultra-quiet alternatives for home use
If noise is a concern in your setup environment, our ProSimu range uses direct-drive actuators that never contact the floor during motion. No vibration through floorboards, no mechanical noise travelling through walls. Designed for home use where quiet operation matters.
Recommended: Motion Seat · T1000 3M · T1000 5M
Professional speed on a 2DOF platform
50% faster actuators than the H-series. The P2 runs at 75 cm/s with 28 Nm torque where the H2 delivers 50 cm/s and 25 Nm. That gap shows up everywhere: faster weight transfer into braking zones, sharper roll response through chicanes, quicker recovery between direction changes. In flight sim, control inputs translate to seat movement with less delay between stick input and physical feedback.
200kg pilot capacity means the P2 handles heavier riders and fully loaded cockpits that would push the H2 beyond its 150kg limit. Add a heavy direct drive wheelbase, a buttkicker, a full monitor mount, and a racing seat with harness. The P2 handles the combined load without sacrificing actuator speed. Built for setups where the total weight on the platform matters as much as the person sitting in it.
One platform for racing and flight
SFU smooth gearing comes standard on every P-series platform. No separate flight variant. No choosing between the P2 and a P2R. One platform handles the fast snappy movements that sim racing demands and the slow fluid transitions that flight simulation requires. Switch from a 45-minute stint in iRacing to a cross-country flight in MSFS without touching a setting.
Upgradable to the P3 or P6 when you are ready for more axes. The P2 frame accepts DOF Reality upgrade kits, so your investment in the professional platform carries forward rather than being replaced. Start with pitch and roll, add rear traction loss later with the P3 upgrade, or go straight to full 6DOF with the P6 kit. Your entry point, your pace.
How It Compares
DOF Reality P2 Pro
£4,320.00
|

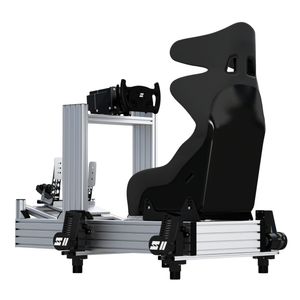

SIMRIG SR2
£3,505.00
|
ProSimu P3MP
£4,945.00
|
|
|---|---|---|---|
| DOF | 2 | 3 | 3 |
| Axes | Pitch, Roll | Pitch, Roll, Heave | Pitch, Roll, TL |
| Actuator Speed | 75 cm/s | 100 mm/s | Up to 280 mm/s |
| Max Load | 200 kg | 225 kg | 200 kg |
| SFU Smooth Gearing | |||
| Heave | |||
| Traction Loss | |||
| Noise Level | Low | Low | Ultra-quiet |
| Cockpit Included |
